Unleash Comprehensive Signal Intelligence with the 2-18GHz Wideband Monitoring System

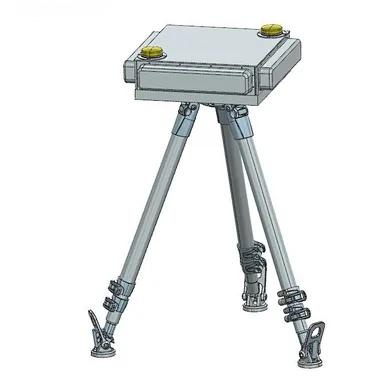

nnIn modern electronic warfare and spectrum monitoring, the ability to capture and analyze wideband signals in real time is paramount. The 2‑18GHz wideband four‑array monitoring and direction finding equipment stands as a pinnacle of signal intelligence technology, combining a high-performance DF antenna array with advanced processing capabilities. Operating across the full 2-18 GHz frequency range, this system provides users with an unparalleled tool for professional signal monitoring, analysis, and direction finding.nnFrom the moment of deployment, the equipment offers a robust solution for detecting and characterizing complex signals. Its four-array antenna design supports 360° omnidirectional coverage for direction finding, ensuring no signal goes unnoticed. Simultaneously, it delivers a wide 90° instantaneous azimuth coverage, allowing operators to focus on specific sectors with high precision. Direction finding accuracy is exceptional, achieving ≤2° (r.m.s.), enabling reliable geolocation of signal emitters even in dense electromagnetic environments.nn
Core Capabilities for Advanced Signal Analysis
nnThe system is engineered for demanding wideband signal monitoring and reception. At its heart lies a receiver with a 1 GHz instantaneous bandwidth, capable of capturing wide slices of the spectrum for detailed analysis. This allows for real-time parameter measurement, ensuring that every characteristic of intercepted pulse signals is recorded and understood. The equipment excels at pulse descriptor extraction, sorting, and identification, processing even the most complex and dense emissions.nnOne of the standout features is its ability to handle an adaptive pulse stream density of ≥500,000 pulses per second. This ensures that the system does not miss critical signals, even in environments packed with radar, communications, and other emitters. It supports a wide range of pulse types, including conventional signals, linear frequency modulation (LFM), phase coding, frequency diversity, frequency agility, and various pulse repetition interval (PRI) patterns such as stagger, jitter, and sliding. This versatility makes it an essential tool for both threat identification and signal research.nn
Data Acquisition and Visualization
nnBeyond real-time processing, the 2‑18GHz wideband four‑array monitoring and direction finding equipment supports comprehensive IF data acquisition and storage. Operators can record and store raw signal data for detailed post-analysis and playback, facilitating offline investigation and forensic signal analysis. The system provides multi-dimensional visualization, offering intuitive graphical representations of signals through time-domain waveform diagrams, spectrum diagrams, time-frequency diagrams, and time-phase diagrams. Additional visual analysis plots, including time-pulse width, time-frequency, time-PRI, and time-amplitude, empower users to quickly identify signal patterns, anomalies, and emitter behaviors.nn
Technical Specifications of the 2-18GHz Wideband Four-Array System
nnFor mission-critical applications, a thorough understanding of system performance is essential. The following table details the key technical parameters that define the capabilities of this advanced monitoring and direction finding equipment.nn| Parameter | Specification |n| :— | :— |n| Frequency Range | 2 GHz – 18 GHz |n| Instantaneous Frequency Coverage Bandwidth | 1 GHz |n| Receiver Sensitivity | Better than -75 dBm (Pulse Width ≥ 1 μs) |n| Dynamic Range | Instantaneous: ≥45 dB; Manually Adjustable Attenuation: 30 dB |n| Applicable Pulse Width Range | 0.1 μs – CW |n| Pulse Frequency Measurement Accuracy | Pulse Width ≥ 1 μs: ≤0.3 MHz (r.m.s) |n| Pulse Width Measurement Accuracy | 0.1 μs – 1 μs: Better than 0.1 μs (r.m.s); ≥1 μs: Better than (0.1 + 1% of Pulse Width) μs (r.m.s) |n| Pulse Repetition Interval (PRI) Measurement Accuracy | Period ≤1 ms: Better than 0.1 μs (r.m.s); Period >1 ms: Better than 1 μs (r.m.s) |n| Direction Finding Azimuth Coverage | 360° |n| Instantaneous Azimuth Measurement Range | 90° |n| Azimuth Direction Finding Accuracy | ≤2° (r.m.s) |n| Adaptive Pulse Stream Density | ≥500,000 pulses/second |n| Supported Signal Types | Conventional, LFM, Phase Coding, Frequency Diversity, Frequency Agility, PRI Stagger, PRI Jitter, PRI Sliding, and other multi-system pulse signals |n| Visual Analysis Views | Time-domain waveform, Spectrum, Time-frequency, Time-phase, Time-Pulse Width, Time-Frequency, Time-PRI, Time-Amplitude |n| Power Supply | 24V DC |n| Power Consumption | ≤100 W |n| Weight | ≤12 kg |n| Interface | Gigabit Ethernet |nn
Conclusion: A Complete Solution for Wideband Monitoring and Direction Finding
nnThe 2‑18GHz wideband four‑array monitoring and direction finding equipment represents a culmination of high-performance design and practical engineering. With its precise direction finding capability, wide instantaneous bandwidth, and robust pulse processing engine, it is ideally suited for spectrum management, intelligence gathering, and electronic support. Powered by a compact 24V DC supply with low power consumption (≤100 W) and a lightweight design (≤12 kg), it offers exceptional portability without sacrificing performance. The Gigabit Ethernet connectivity ensures seamless integration with display terminals and network systems. For professionals seeking a reliable and comprehensive tool for wideband signal monitoring and orientation, this equipment delivers the accuracy, speed, and depth of analysis required to succeed in the most challenging electromagnetic environments.
