Unmatched Precision with the MOP3311-30T6000 Vehicle-Mounted Interferometer Directional Antenna
n
In the world of professional signal intelligence and spectrum monitoring, the ability to pinpoint the exact origin of a transmission is non-negotiable. The MOP3311-30T6000 Vehicle-mounted Interferometer Directional Antenna represents a significant leap forward in mobile direction finding technology. Designed specifically for demanding vehicle-mounted platforms, this antenna is engineered to deliver high-precision signal detection across an exceptionally broad frequency range. Whether you are conducting surveillance, managing spectrum allocation, or performing electronic warfare support, this antenna provides the accuracy and reliability you need to get the job done effectively.
n

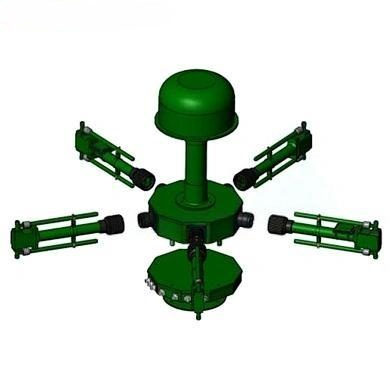

This system is not just another antenna; it is a sophisticated instrument built around a core 3-layer, 5-element uniform circular array. This advanced design allows the MOP3311-30T6000 to achieve unparalleled direction finding accuracy, making it an indispensable tool for professional operators who require real-time, actionable intelligence. With its robust construction and optimized performance metrics, it turns a standard vehicle into a mobile interception and monitoring powerhouse.
nn
Exceptional Direction Finding Accuracy and Frequency Coverage
n
The primary strength of the MOP3311-30T6000 lies in its ability to provide consistent, high-precision direction finding across its entire operational spectrum. Covering a phenomenal 20-6000MHz, this antenna eliminates the need for multiple systems, simplifying deployment and reducing complexity. This full-band coverage is intelligently divided into three sub-bands to optimize performance: 20-600MHz, 600-3000MHz, and 3000-6000MHz. The result is a system that can track and locate signals from low-band VHF communications through to high-band microwave links with equal proficiency.
n
When accuracy is critical, the MOP3311-30T6000 delivers. It boasts a system direction finding accuracy reference value of 2° RMS, a figure that meets and often exceeds the high-precision requirements of professional direction finding scenarios. This level of precision allows operators to narrow down a signal source to a very specific geographic area, whether they are tracking an unauthorized transmission in an urban environment or monitoring emissions in a remote area. The 360° omni-directional coverage ensures that no signal is missed, regardless of its approach vector, providing complete situational awareness.
nn
Vehicle-Mountable Antenna Design for Robust Field Performance
n
As a purpose-built Vehicle-mountable Antenna, the MOP3311-30T6000 is designed to withstand the rigors of mobile operation while maintaining peak performance. The entire assembly is lightweight and compact, with dimensions of ≤Φ1240mm × H950mm and a weight of ≤25kg. This design philosophy ensures that the antenna does not impose a significant payload burden on the vehicle and can be easily integrated onto a wide variety of platforms, from SUVs to larger command vehicles. The durable green exterior is not just for aesthetics; it provides practical camouflage and long-lasting protection against the elements, ensuring reliable operation in diverse environmental conditions.
n
Signal integrity is paramount in any direction finding system. The MOP3311-30T6000 utilizes a vertical polarization mode with a characteristic impedance of 50Ω and a typical voltage standing wave ratio (VSWR) of ≤2.5. These specifications guarantee stable, low-loss signal transmission from the antenna to the receiver, preserving the delicate phase and amplitude information required for accurate direction finding. Furthermore, the antenna achieves stepped high gain across its frequency bands, with performance figures that ensure excellent sensitivity and detection range. This combination of factors makes it an optimal choice for any serious mobile monitoring operation.
nn
Technical Specifications and Key Parameters
n
The performance of the MOP3311-30T6000 is defined by a set of carefully engineered parameters. For clarity, all critical technical data is presented in the table below, ensuring a complete and transparent overview of its capabilities.
nn
| Parameter | Specification / Value |
|---|---|
| Model | MOP3311-20T6000 |
| Frequency Bands | 20MHz – 600MHz / 600MHz – 3000MHz / 3000MHz – 6000MHz |
| Polarization Mode | Vertical Polarization |
| Direction Coverage | 360° Omni-Directional |
| Characteristic Impedance | 50Ω |
| Voltage Standing Wave Ratio (VSWR) | ≤2.5 (typical value) |
| Unit Antenna Gain | ≥7 dBi (20MHz – 600MHz); ≥10 dBi (600MHz – 3GHz); ≥12 dBi (3GHz – 6GHz) |
| Direction Finding Output Interface | N-50K or SMA-50K (optional) |
| Dimensions | ≤Φ1240mm × H950mm |
| Weight | ≤25kg |
| Color | Green |
nn
Conclusion: The Premier Vehicle-Mountable Antenna for Professional Use
n
In summary, the MOP3311-30T6000 Vehicle-mounted Interferometer Directional Antenna sets a new standard for mobile direction finding equipment. Its wide 20-6000MHz frequency coverage, coupled with a remarkable 2° RMS accuracy, provides operators with the tools necessary to succeed in the most challenging signal environments. The antenna’s robust design, featuring optional N-50K or SMA-50K interfaces and a lightweight, durable construction, ensures it integrates seamlessly onto any vehicle platform. When you require the best in mobile signal intelligence, this professional Vehicle-mountable Antenna offers the uncompromising performance, reliability, and precision that modern missions demand. It is, without question, the optimal choice for vehicle-mounted signal direction finding in the 20-6000MHz frequency band.
