Elevate Your Field Operations with the Ultimate Direction Finding Antenna

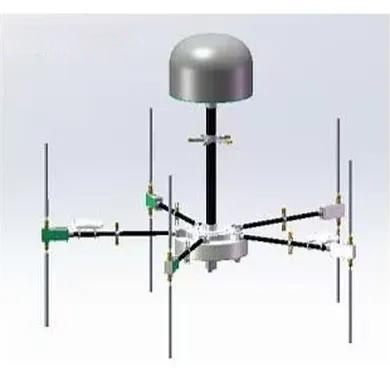

nnIn the demanding world of portable field direction finding and monitoring, performance and portability must coexist. The MOP-30T6000 is a revolutionary 30-6000MHz Direction finding antenna meticulously engineered for professionals who require uncompromised accuracy without sacrificing mobility. This high-performance integrated system redefines what is possible in outdoor signal intelligence, combining a sophisticated three-layer five-element circular array architecture with an innovative foldable design. Weighing in at under 8.5Kg and shrinking to a compact Φ330mm x H900mm, this Direction finding antenna transforms challenging field deployments into streamlined, efficient missions. Whether you are conducting spectrum monitoring, interference hunting, or electronic warfare support, the MOP-30T6000 delivers the precise, reliable data you need, exactly when and where you need it.nn
The Anatomy of Superior Direction Finding Antenna Performance
nnAt the heart of the MOP-30T6000 lies a carefully engineered system that ensures exceptional signal capture and analysis. The antenna’s three-band design spans the critical 30-6000MHz range, dividing it into Band A (30-600MHz), Band B (600-3000MHz), and Band C (3000-6000MHz). This strategic segmentation guarantees optimal performance across the entire spectrum. In vertical polarization mode, the unit achieves a typical VSWR of ≤2.5, ensuring minimal signal reflection and maximum power transfer. Each antenna element delivers a unit gain of ≥10dBi, providing the sensitivity necessary to detect weak or distant signals. The system’s amplitude consistency of ≤1dB (RMS) and phase consistency of ≤8° (RMS) are critical for accurate direction finding, resulting in a direction finding accuracy reference value of just 2° RMS. This precision allows operators to pinpoint signal sources with confidence, even in cluttered or contested electromagnetic environments.nn
Portability Meets Robustness: A Direction Finding Antenna Built for the Field
nnOne of the most compelling features of this Direction finding antenna is its exceptional portability. The foldable, packable design reduces the transport volume dramatically: the shrunk size of ≤Φ330mm x H900mm fits easily into a backpack or vehicle storage compartment, while the unfolded size of ≤Φ1300mm x H1100mm provides the aperture needed for high-accuracy direction finding. The total weight of ≤8.5Kg ensures that a single operator can carry and deploy the antenna without assistance, eliminating the need for vehicle-mounted systems in many scenarios. Despite its light weight, the MOP-30T6000 is built to last, with a burn-out resistance power of ≥2W (continuous wave), protecting the system from accidental high-power exposure. The receiving sensitivity of ≤12uV/m (typical, (S+N)/N=3dB, BW=10kHz) further enhances detection capabilities, making this Direction finding antenna a reliable partner in even the most remote locations.nn
Versatile Connectivity and Data Output for Mission Flexibility
nnThe MOP-30T6000 is designed to integrate seamlessly with your existing equipment. It supports both dual-channel and five-channel multi-spec signal output, allowing you to choose the configuration that best suits your monitoring tasks. The RF output interface is configurable with cluster or individual sockets, providing flexibility for connection to spectrum analyzers, receivers, or software-defined radios. Control and power supply are managed through a standard aviation socket, ensuring a secure and robust connection in the field. This thoughtful interface design means you can focus on the mission, not on troubleshooting connections.nn
Technical Specifications at a Glance
nnAll critical performance parameters for this Direction finding antenna are summarized in the table below, ensuring you have the precise data needed for system integration and operational planning.nn| Parameter | Specification |n| — | — |n| Frequency Range – Band A | 30 – 600 MHz |n| Frequency Range – Band B | 600 – 3000 MHz |n| Frequency Range – Band C | 3000 – 6000 MHz |n| Polarization | Vertical |n| VSWR (Typical) | ≤2.5 |n| Unit Antenna Gain (Typical) | ≥10 dBi |n| Unit Antenna Amplitude Consistency (RMS) | ≤1 dB |n| Unit Antenna Phase Consistency (RMS) | ≤8° |n| Unit Antenna Receiving Sensitivity (Typical, (S+N)/N=3dB, BW=10kHz) | ≤12 µV/m |n| Burn-Out Resistance Power (Continuous Wave, Designed to Guarantee) | ≥2 W |n| Direction Finding Accuracy (RMS) | ≤2° |n| RF Output Interface | Cluster sockets / Individual sockets |n| Control and Power Supply Interface | Aviation socket |n| Support Output Modes | Dual-channel / Five-channel |n| Unfolded Size | ≤Φ1300 mm x H1100 mm |n| Shrink Size | ≤Φ330 mm x H900 mm |n| Weight | ≤8.5 Kg |nn
Conclusion: The Cost-Effective Direction Finding Antenna for Modern Field Operations
nnWhen selecting a Direction finding antenna for portable field operations, the MOP-30T6000 stands out as a cost-effective, high-performance solution. It bridges the gap between laboratory-grade accuracy and rugged field readiness, delivering full 30-6000MHz coverage, precise direction finding capabilities, and an unmatched balance of low weight and small stowed volume. By choosing this advanced system, you equip your team with the tools needed to succeed in the most demanding signal intelligence missions. Invest in the MOP-30T6000 and experience the confidence that comes with superior Direction finding antenna technology.
