Introduction: Unveiling the MOP3308-20T600 Portable Interferometer Direction Finding Antenna
nnIn the demanding world of field-based signal intelligence and spectrum monitoring, the right equipment can mean the difference between mission success and failure. Enter the MOP3308-20T600, a highly specialized portable interferometer direction finding antenna engineered for the rigors of outdoor operation. This isn’t just another antenna; it represents a convergence of advanced engineering and practical, field-tested design. Its innovative three-layer, five-element uniform circular array architecture delivers exceptional performance while maintaining a form factor that redefines portability. For professionals engaged in outdoor signal detection, full-band direction finding, and rapid deployment scenarios, this antenna stands as a pivotal tool. The focus keyword, portable interferometer direction finding antenna, is central to its design philosophy, ensuring that high-precision signal triangulation is no longer confined to fixed installations. This article delves into the specifications, performance metrics, and real-world applications of this remarkable piece of technology, demonstrating how it meets the complex needs of modern electronic warfare, spectrum management, and security operations.nn
Unpacking the Design: A Foldable and Highly Portable Solution

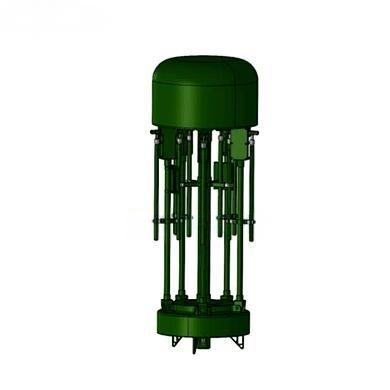

nnThe core challenge for any field operator is balancing capability with mobility. The MOP3308-20T600 directly addresses this with a foldable, compact structure that collapses to a remarkably small storage profile. The storage dimensions are ≤φ330mm × H900mm, and the total weight of the whole machine is ≤8.5kg. This makes it exceptionally easy to carry in a backpack or vehicle, perfectly suiting field hiking, temporary monitoring posts, and on-site rapid deployment.nn
Deployment Specifications at a Glance
nn
| Parameter | Deployed Value | Stored (Compact) Value |
|---|---|---|
| Dimensions | ≤Φ1300mm × H1100mm | ≤φ330mm × H900mm |
| Total Weight | ≤8.5 kg | ≤8.5 kg |
nnThis design allows a single operator to quickly transition from transport to operational mode, a critical advantage in time-sensitive environments.nn
Core Performance of the Portable Interferometer Direction Finding Antenna
nnPerformance is the true measure of any antenna, and here the portable interferometer direction finding antenna excels. Its wideband coverage from 30 to 6000 MHz is precisely divided into three optimized sections, ensuring consistent, high-quality signal capture across the entire spectrum. This full-band capability eliminates the need for multiple antenna systems for different frequency ranges, simplifying logistics and reducing deployment time.nn
Frequency and Polarization Characteristics
nnThe antenna operates with vertical polarization, which is standard for many terrestrial communication systems, and provides true 360° omnidirectional direction finding coverage. This means no blind spots or signal shadows, allowing operators to locate threats or targets from any azimuth. The system’s core direction finding accuracy is a benchmark of 2° RMS (Root Mean Square), a figure that ensures precise emitter location, vital for intelligence gathering and interference mitigation.nn
Gain and Electrical Performance
nnThe unit antenna gain is designed to increase with the frequency band, compensating for natural propagation losses. This progressive gain profile ensures strong signal reception across all three sub-bands.nn
| Frequency Band | Typical Unit Antenna Gain |
|---|---|
| 30 MHz – 600 MHz | ≥7 dBi |
| 600 MHz – 3 GHz | ≥10 dBi |
| 3 GHz – 6 GHz | ≥12 dBi |
nnThe voltage standing wave ratio (VSWR) is maintained at ≤2.5 (typical), ensuring efficient power transfer and minimal signal reflection. The characteristic impedance is 50Ω, a standard in the industry, guaranteeing compatibility with most receivers and measurement equipment.nn
Interface and Environmental Adaptability
nnA field-ready tool must be adaptable. This portable interferometer direction finding antenna offers flexibility in its output interface, with N-50K or SMA-50K connectors available. This ensures seamless integration with a wide array of direction finding receivers and signal analyzers. Furthermore, the housing is finished in a green color, chosen for its camouflage properties, helping the antenna blend into field environments. The robust construction is built to withstand the challenges of outdoor use, from temperature fluctuations to physical handling.nn
Conclusion: The Optimal Choice for Field Operations
nnThe MOP3308-20T600 is more than just a component; it is a complete, integrated solution for the most challenging direction finding tasks. It successfully bridges the gap between laboratory-grade precision and field-deployable practicality. By combining a lightweight, foldable design with a full 30-6000 MHz frequency coverage and an impressive 2° RMS direction finding accuracy, this antenna sets a new standard for what a portable interferometer direction finding antenna can achieve. Whether for counter-surveillance, spectrum enforcement, or tactical signal intelligence, its ability to be rapidly deployed and deliver accurate, 360° omnidirectional results makes it an indispensable asset. For professionals requiring uncompromising performance in a transportable form factor, the MOP3308-20T600 stands as a definitive and optimal choice.
