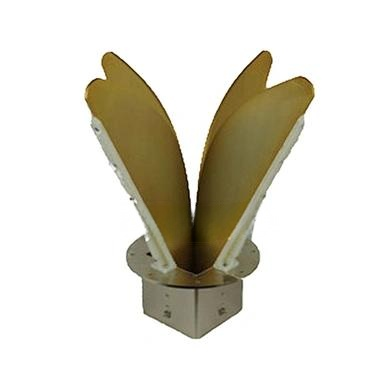

Redefining RF Performance: The 0.7-6GHz Dual-Polarization Antenna as a Low VSWR Horn Antenna
nnIn the demanding world of professional RF applications, signal integrity is paramount. Whether you are designing a radar system, conducting precise laboratory measurements, or deploying an outdoor communication network, the antenna you choose is the critical bridge between your equipment and the electromagnetic spectrum. The 0.7-6GHz Dual-Polarization Antenna is meticulously engineered to excel in these high-stakes environments, functioning not just as a standard antenna but as a dedicated, high-power solution. It is a true Antenna for High-Power Electronic Equipment, designed to tackle the core challenge of power-related signal instability under continuous, heavy load. With a stable power capacity of 20W, it is the ideal choice for radar auxiliary signal transmission, electronic countermeasure systems, and high-power signal relay applications, ensuring consistent signal propagation where lesser antennas falter.nnThis antenna’s true distinction, however, lies in its dual identity. It is both a high-performance polarized antenna and a remarkable Low VSWR Horn Antenna. Operating across an ultra-wide frequency spectrum of 0.7 to 6GHz, it maintains a voltage standing wave ratio (VSWR) of ≤2.5 (typical) across the entire band. This low VSWR is not a just a specification; it is a fundamental advantage. By minimizing signal reflection loss, it ensures efficient impedance matching with connected RF devices like signal generators, power meters, and high-power transmitters. This maximizes signal utilization, a critical factor for long-distance communication or high-precision testing where even minor loss can compromise results. As a Low VSWR Horn Antenna, it guarantees reliable signal integrity, reducing errors and enhancing overall system performance.nn
The Dual-Polarization Advantage: Enhancing Anti-Interference Capabilities
nnThe dual-polarization design of this antenna is a core strength, enabling simultaneous transmission and reception of signals in two orthogonal polarization directions. This feature dramatically boosts signal coverage flexibility and provides superior anti-interference capabilities. In complex electromagnetic environments, such as crowded urban communication hubs or noisy industrial test sites, signal crosstalk is a constant challenge. By using two independent polarization channels, this antenna can effectively separate desired signals from interference, improving data throughput and signal clarity. The design is further complemented by a port isolation of >20dB, which suppresses interference between the dual-polarization ports, ensuring each signal channel operates independently and with high accuracy. When used as a Low VSWR Horn Antenna in test and measurement scenarios, this isolation ensures precise signal simulation and data collection, meeting the strict accuracy requirements of both laboratory and industrial testing.nn
Performance Versatility: Gain, Beamwidth, and the Robust Construction as an Antenna for High-Power Electronic Equipment
nnIn terms of signal propagation, the 0.7-6GHz Dual-Polarization Antenna delivers a dynamic gain range of ≥3-13 dBi. This adapts to diverse distance requirements, from short-range local testing in a laboratory to medium-range outdoor communication. Its 3dB beamwidth varies dynamically with frequency, offering a balance between narrow-beam precision for targeted transmission and wide-beam coverage for large-area detection. As an Antenna for High-Power Electronic Equipment, this versatility means the antenna can seamlessly switch between high-power signal amplification and precise directional control, catering to multi-scenario demands.nnThe physical construction of this antenna is as robust as its electronic performance. It is built with high-quality aluminum and treated with a chemical conductive oxidation coating, providing excellent durability and environmental resistance. This makes it ideal for the often-unregulated environments where an Antenna for High-Power Electronic Equipment must operate.nn
Product Specifications
nn| Parameter | Value |n| :— | :— |n| Operating Frequency (GHz) | 0.7 – 6 |n| VSWR | ≤ 2.5 (typical) |n| Gain | ≥3 – 13 dBi |n| Polarization | Dual Polarization |n| 3dB Beamwidth | 25° – 125° |n| Port Isolation (dB) | >20 dB |n| Power Capacity | 20W |n| Reference Dimensions | ≤320mm × 320mm × 420mm |n| Weight | ≤5kg |n| Material | Aluminum |n| Operating Temperature | -40°C to +70°C |n| Storage Temperature | -55°C to +80°C |n| Interface | SMA-50K |n| Coating | Chemical Conductive Oxidation |nn
Conclusion: The Professional’s Choice for Uncompromising Performance
nnWeighing ≤5kg with reference dimensions of ≤320mm×320mm×420mm, the antenna is compact and lightweight, simplifying installation in space-constrained scenarios like vehicle-mounted systems. It reliably withstands extreme cold down to -40°C and high heat up to +70°C during operation, ensuring no performance degradation even in harsh outdoor conditions. The SMA-50K interface ensures seamless compatibility with most RF devices, eliminating the need for extra adapters. Its optimized horn shape, a hallmark of a Low VSWR Horn Antenna, enhances signal directivity and reduces side-lobe interference, further improving overall signal quality. Whether integrated into a base station for stable communication coverage, a laboratory for accurate testing, or a high-power electronic system for reliable signal transmission, the 0.7-6GHz Dual-Polarization Antenna integrates the best attributes of a Low VSWR Horn Antenna and an Antenna for High-Power Electronic Equipment. It delivers a combination of precision, durability, and versatility that makes it the definitive top choice for demanding professional RF applications.
