Revolutionizing Remote Operations with Reliable Long Range Video Transmission
n
In mission-critical fields such as defense, public safety, and industrial monitoring, the ability to maintain real-time situational awareness over vast and challenging terrains is paramount. Traditional communication links often fall short, constrained by physical distance, rugged topography, and a dependency on fixed infrastructure. This is where our professional airborne broadband Mesh Radio module redefines the standard. It integrates advanced Mesh Radio technology with dynamic Ad hoc Network capabilities to create a resilient, decentralized communication network that operates independently of central base stations.
n
The foundation of this solution is its robust Ad hoc network functionality. Every node—whether mounted on a UAV, vehicle, or carried by an individual operator—can automatically discover and connect to others, dynamically establishing optimal communication paths without human intervention. This architecture supports a variety of network topologies, including point-to-point, star, chain, and full mesh, allowing the network to scale flexibly up to 256 nodes. An intelligent dynamic routing algorithm responds to changes such as node movement or addition within just one second, ensuring persistent link stability. Coupled with multi-hop relay technology, it dramatically extends the reach of long range video transmission beyond the line of sight, with tested communication ranges exceeding 150 kilometers. This eliminates coverage gaps and solves connectivity challenges in even the most isolated environments.
n
Unmatched Performance for Demanding Applications
n
The versatility of this Mesh Radio module makes it indispensable across a wide spectrum of applications. In aerial operations, it serves as a high-performance UAV data link, enabling beyond-visual-range remote control and seamless video transmission for ISR missions. For border and coastal defense, it facilitates the rapid deployment of extensive mobile communication networks, ensuring persistent surveillance and coordination. In disaster response scenarios, such as firefighting and emergency rescue, its ability to penetrate signal-blind zones—like deep valleys or urban canyons—allows it to send back critical live footage directly to command centers. This module is more than a communication tool; it is the cornerstone for building the future aerial information hub and achieving ubiquitous visual connectivity.
n
Product Specifications and Technical Parameters
n

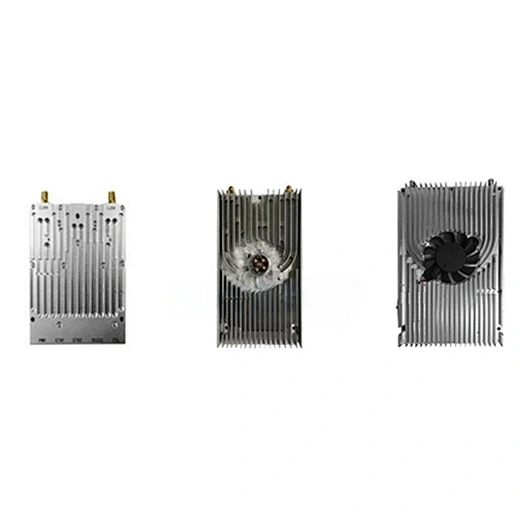

The following table outlines the key specifications for the three available models of this professional Mesh Radio module. All parameters are based on rigorous testing and industry standards.
n
| Parameter | MOP-UA1WL | MOP-UA4WL | MOP-UA10WL |
|---|---|---|---|
| Center Frequency | 1350 MHz – 1450 MHz | ||
| Carrier Bandwidth | 1.25/2.5/5/10/20 MHz | ||
| Transmission System | COFDM | ||
| Transmission Mode | 2T2R Diversity / MIMO (optional) | ||
| Peak Transmission Rate | 47 Mbps | 50 Mbps | 50 Mbps |
| Network Scale | Supports up to 64 nodes | ||
| Receive Sensitivity | ≤ -103 dBm | ||
| Transmit Power | 2×1W, dual channel | 2×4W, dual channel | 2×10W, dual channel |
| Cold Start Time / Topology Change Response Time | ≤ 1 second | ||
| Single-hop Delay | ≤ 10 ms | ||
| Link Adaptation | Auto adjusts modulation (QPSK/16QAM/64QAM/256QAM) based on channel quality | ||
| Optional Features | Intelligent frequency selection, different frequency networking, anti-interference, frequency hopping (1000 hops/sec), encryption (DES/AES128/AES256/SM4) | ||
| Antenna Interface | SMA-K type × 2 | ||
| RS232 Serial Port | PH2.0-6 package | ||
| Business Interface | 100M Ethernet, PH2.0-4 package × 2 | ||
| Power Supply Mode | DC 18V – 27V | ||
| Power Interface | XT30PW-M package | ||
| Device Size | 102.5 × 81 × 18 mm | 160 × 90.5 × 25.5 mm | 185 × 106 × 28 mm |
| Device Weight | ≤ 180 g (including shielding cover) | ≤ 350 g (excluding antenna) | ≤ 502 g (excluding antenna) |
| Operating Temperature | -40°C – +65°C | ||
| Operating Humidity | 5% RH – 100% RH | ||
n
Delivering Robust and Secure Long Range Video Transmission
n
This professional Mesh Radio module is designed to excel where conventional systems fail. Its advanced Ad hoc network is not limited by line of sight; it automatically forms and maintains reliable connections across dynamic environments. The multi-hop relay capability is central to achieving exceptional long range video transmission, ensuring that critical visual data reaches command centers without interruption, even when nodes are separated by extreme distances. The system is further enhanced by optional features such as intelligent frequency selection, which allows nodes to automatically choose the best operating channel, and anti-interference mechanisms that guarantee normal communication even in contested or congested spectrum environments. For security-sensitive operations, robust encryption options—including AES256 and SM4—protect all transmitted data, making this solution ideal for government and defense applications.
n
Conclusion: The Future of Ubiquitous Visual Connectivity
n
As the demand for real-time intelligence, surveillance, and reconnaissance grows, the limitations of traditional communication links become increasingly apparent. Our professional airborne broadband Mesh Radio module provides a proven, field-ready solution by combining flexible Ad hoc networking with powerful multi-hop relay technology. It delivers dependable long range video transmission across the most demanding terrains and scenarios, from battlefield coordination to disaster response. With a scalable architecture supporting up to 256 nodes, rapid network adaptation, and a suite of advanced features, this module is not just a component—it is the intelligent backbone for building a truly connected, visually aware operational framework. Invest in this Mesh Radio to ensure your teams have the communication resilience needed to succeed, no matter the distance or challenge.
