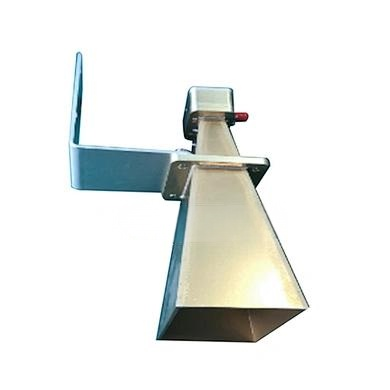

China Moneypro 100W 2-6GHz High Power Wideband Horn Antenna

Tired of weak signals and unreliable coverage? This 100W 2-6GHz Horn Antenna delivers rock-solid performance across the entire frequency band, with a high gain over 7dBi to keep your connection strong even over long distances. Designed to handle tough conditions, it shrugs off extreme temperatures from -55℃ to +75℃ and resists wear and tear, so you can count on it in the field or the lab. Best of all, it comes ready to use right out of the box with included mounting hardware.

SKU: 317f1ae218d0 Category:
Description

Introduction: Understanding the 100W 2-6GHz High Performance Wideband Horn Antenna

nnIn the fast-evolving world of wireless communication, the need for reliable, high-power antennas capable of operating across multiple frequency bands is paramount. The 100W 2-6GHz High Performance Wideband Horn Antenna emerges as a robust solution for industrial, laboratory, and outdoor engineering applications. Designed to deliver consistent performance across the full 2 to 6 GHz spectrum, this wideband horn antenna stands out for its ability to support high-power transmission up to 100 watts, making it an ideal choice for base station construction, signal testing, and long-distance communication links. Its combination of high gain, low voltage standing wave ratio (VSWR), and adjustable beamwidth ensures both signal strength and stability, even in challenging environments.nn

Key Performance Features of the 100W 2-6GHz Wideband Horn Antenna

nnThis antenna is engineered to meet the strict demands of modern communication systems. Its core performance parameters are optimized for efficiency and reliability. The antenna boasts a gain greater than 7 dBi, which significantly boosts signal strength over long distances. Coupled with a maximum VSWR of 2.0, it minimizes signal reflection and power loss, ensuring that the transmitted energy is effectively radiated. The adjustable 3dB beamwidth, ranging from 20 to 70 degrees, allows users to fine-tune the coverage area, focusing the signal precisely where it is needed. This flexibility prevents signal waste and improves overall network efficiency, especially in point-to-point and point-to-multipoint setups.nn

Robust Mechanical Design and Environmental Resilience

nnThe physical construction of this wideband horn antenna is as impressive as its electrical characteristics. Made from high-quality aluminum alloy, it strikes an excellent balance between structural strength and lightweight portability. This material choice provides inherent resistance to drops and wear, making the antenna suitable for field deployments. Its operational temperature range extends from -55°C to +75°C, with storage capabilities from -65°C to +85°C. This wide tolerance ensures stable performance in extreme conditions, from freezing cold to intense heat, as well as in humid or dusty environments. The antenna is equipped with a durable N-type side-feed connector, which is a standard in professional RF equipment, ensuring reliable signal transfer and compatibility with various cables and modules.nn

Installation and Design Flexibility

nnEase of installation is a crucial advantage of this model. It utilizes a bend plate mounting structure and comes complete with mounting plates and screws, allowing for quick assembly straight out of the box. There is no need for additional components or specialized tools. The antenna is available in two color options: gray and military green. This aesthetic choice enables the antenna to blend into industrial settings or meet visual requirements for tactical or special environments. Whether for a permanent base station or temporary test setup, the design prioritizes both functionality and convenience.nn

Product Specifications: Technical Data for the 100W 2-6GHz Wideband Horn Antenna

nnFor precise engineering integration, the following table outlines the complete technical parameters of this high-power wideband horn antenna. This data is critical for system designers and engineers to ensure compatibility and optimal performance.nn| Parameter | Value |n| — | — |n| Operating Frequency | 2 – 6 GHz |n| VSWR (Voltage Standing Wave Ratio) | ≤ 2.0 |n| Gain | > 7 dBi |n| Polarization | Linear Polarization |n| 3dB Beamwidth | 20° – 70° |n| Maximum Power Capacity | 100W |n| Reference Dimensions (Excluding Mounting Bracket) | 150 mm x 119 mm x 264 mm |n| Operating Temperature | -55°C to +75°C |n| Storage Temperature | -65°C to +85°C |n| Connectors | N-type bracket, side feed |n| Mounting Method | Bend plate mounting |n| Mounting Accessories | Includes mounting plate and screws |n| Color Options | Gray / Military Green |n| Material | Aluminum alloy |nn

Conclusion: A Reliable Choice for High-Power Communication

nnIn summary, the 100W 2-6GHz High Performance Wideband Horn Antenna is a versatile and robust tool for any application requiring reliable wideband transmission. Its high gain and low VSWR ensure efficient signal propagation, while the adjustable beamwidth provides excellent coverage control. The durable all-weather construction and straightforward installation process make it a practical choice for both temporary and permanent setups. Whether for advanced research labs, outdoor engineering projects, or critical base station infrastructure, this antenna delivers consistent, high-power performance. Its thoughtful design and comprehensive feature set confirm its position as a leading solution in the field of professional wideband communication.
