China Moneypro 50km Long Range VTOL HDMI Video Transmitter UHF Radio Link for Drone

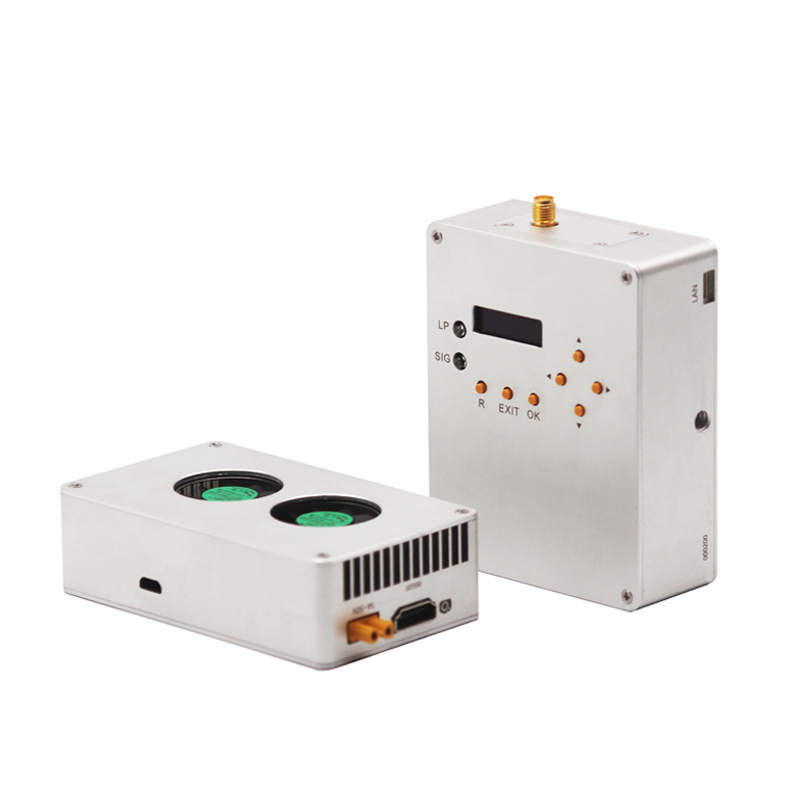

Introducing the FIM-1440 VTOL HDMI Video Transmitter

Experience crystal-clear, real-time video transmission with the FIM-1440—a high-performance COFDM-based transmitter designed for demanding drone and VTOL applications.

Key Features:

  • Wide Frequency Range: Operates across 300MHz–2GHz for flexible deployment
  • Ultra-Low Latency: Stream 1080p video at 60fps with just 50ms delay
  • Extended Range: Reach distances of 50–70km using the included omni fiber antenna
  • Pure Video Transmission: Dedicated HDMI input/output—video only, no control data
  • Complete Ready-to-Use Kit: Includes drone-mounted transmitter, ground receiver, antennas, data cables, configuration software, HDMI cable, and power cable

Built for reliability and value, the FIM-1440 delivers professional-grade video links where high performance and cost efficiency matter most.

Category:
Description

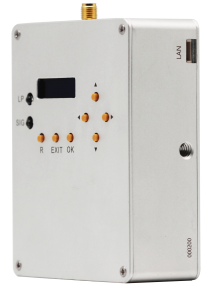

50km long range Reciever



Experience Unmatched Long-Range Clarity & Reliability

  • Extended Line-of-Sight Range – Maintains a strong, stable connection over distances of 50–70km+ from air to ground.
  • Ultra-High Frequency (UHF) Band – Fully customizable within 300MHz–2GHz, with multi-frequency selection and superior barrier penetration for reliable performance in challenging environments.
  • Full HD Real-Time Video – Stream 1080p HD video with an embedded bidirectional data link for seamless two-way communication.
  • Secure Encrypted Transmission – Your video feed is protected with AES128 encryption, preventing unauthorized access and interception.
  • Versatile Connectivity –
    ✓ HDMI port for video input and output
    ✓ SMA port interface for easy antenna (transmitter/receiver) connection
    ✓ 1/4-inch fixed port to securely mount your camera
    ✓ 100Mbps Ethernet port supporting TCP/IP/UDP for high-speed video output
  • Rugged & Efficient Design –
    ✓ CNC-machined double aluminum alloy shell with conductive anodizing for impact resistance
    ✓ Integrated dual cooling fans for optimal heat dissipation
    ✓ Compact and lightweight – only 200 grams for easy portability and deployment.

Ready to elevate your operations with reliable, long-range HD video?
Let’s connect to discuss how this system can meet your specific needs.

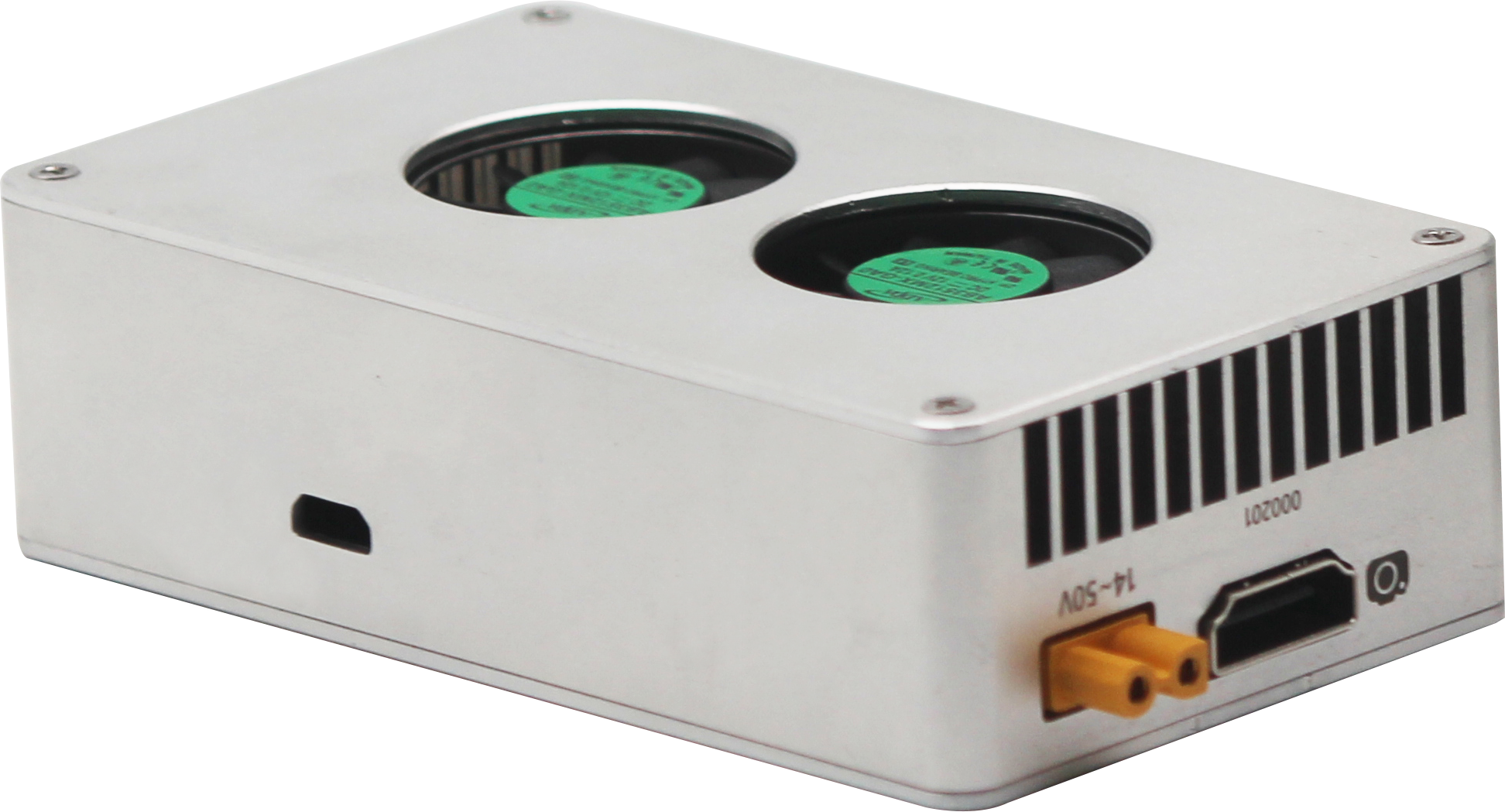

50km long range transmitter

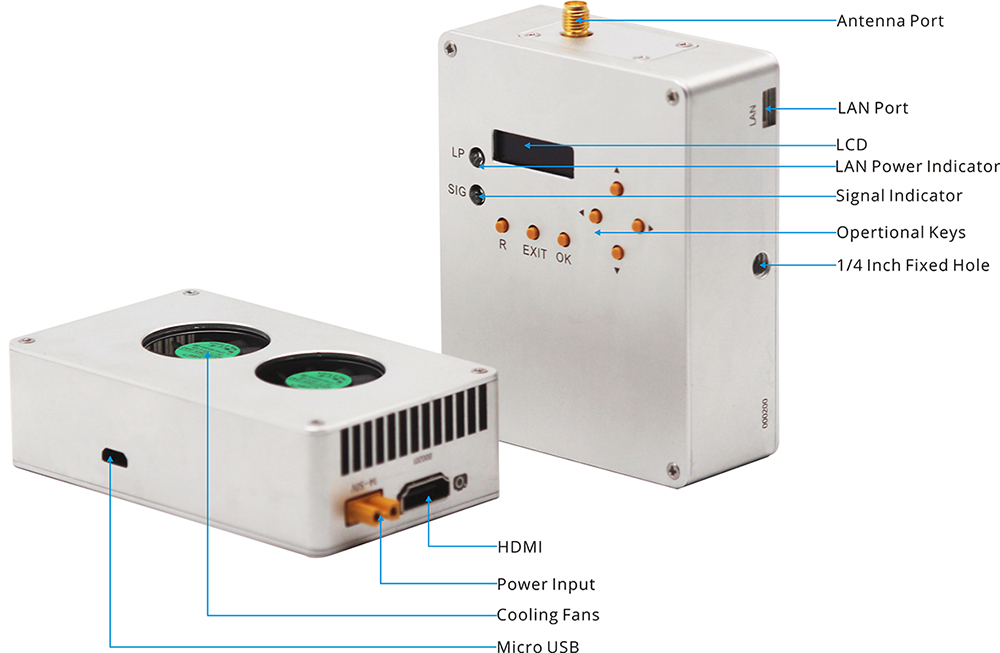

Interface

VTOL VIDEO LONG RANGE Transmitter




Optimized for Clarity & Impact:

The FIM-1440 COFDM drone video transmitter delivers robust, high-quality video in line-of-sight (LOS) conditions. Built for versatility, it seamlessly integrates with a wide range of platforms—from multirotor drones and long-range fixed-wing aircraft to VTOL and tandem-wing UAVs.

Engineered for demanding professional use, the FIM-1440 excels in critical applications such as:

  • Long-distance oil and gas pipeline inspection
  • Unmanned ground vehicle (UGV) survey operations
  • Geographic surveying and mapping

With its adaptable design, the FIM-1440 ensures reliable, high-performance video transmission across diverse remote sensing and inspection missions.



1440UAVapplications



Wireless Channel 300Mhz-2Ghz for your option
Communication Bandwidth 2/4/8MHZ
RF Transmission Power 2.5W
Data Rates 1.5/3/6Mbps
RX Sensitivity -108dbm@2Mhz/-103dbm@4Mhz/-97dbm@8Mhz
Encryption AES128
End to End latency 50-70ms for 1080P60/720P60 encoding and decoding
Interfaces on Tx 1080P60 HDMI RX×1
  Power Input Interface–XT30 Industrial Grade ×1
  USB 2.0–Connecting with PC for configure
  SMA RF ×1
Interfaces on Rx 1080P60 HDMI Mini ×1
  LCD–Displaying RSSI and link state.
  Buttons×5–For configuring receiver model.
  Power Input Interface–XT60 Industrial Grade ×1
  SMA RF ×1
  Ethernet to RJ45 ×1
Wireless Fault Tolerance FEC/MPEG
Modulation DVB-T/DVB-T2/DVB-T2
Distance Range Air to ground: 50-70kmNotes: True distance is related to the environment.
  Ground to ground: NLOS 1-2km
Start Time 5s
Power Input DC 14-18V(Tx) (DC16V is suggested)DC 10-14V(Rx) (DC12V is suggested)
Re-connection time Less than 1s after signal has been recovered
COFDM QPSK one-way
Power Consumption (Maximum) Transmitter terminal: 25W  Receiver terminal: 11W
Temperature Range Operating temperature: -40—85℃Storage temperature: -55 – 125℃
Dimensions TX: 97×57x30mm
RX: 91×72x30mm
Radiator Fan cooler or aluminum heat sink
Gram TX: 200g
RX: 202g
Metal Case Conductive anodizing craft
  CNC Technology
  Double Aluminum Alloy Shell
