China Moneypro 10km Drone Video Transmitter for HDMI Camera and Telemetry

Introducing the FIM-2410: A 10km HD Video & Data Link Built for Demanding Environments The FIM-2410 is a lightweight, long-range transmitter designed to deliver reliable real-time HD video and telemetry for commercial and industrial drones. Engineered for Reliability in Crowded Airwaves Operating in the congested 2.4GHz band, the FIM-2410 uses advanced TDD-COFDM technology and high sensitivity to maintain a stable, interference-resistant link—even in dense urban settings. Key Features: Long-Range & Lightweight: Achieves a 10km range while weighing just 93 grams. Secure & Encrypted: Protects your video feed with AES128 encryption to prevent unauthorized access. Built for Autonomy: An embedded bi-directional data link enables advanced autonomous operations. Seamless Integration: Compatible with a wide range of flight controllers, mission software, and payloads. Ideal for: Professional pilots and operators who require a secure, robust, and high-performance video downlink for critical missions.

Category:
Description

Enhanced Features

  • Superior Image Quality: Advanced algorithm delivers crisp 1080P video up to 12km
  • Smart Monitor Ready: Connect directly via HDMI for live video monitoring
  • Ultra-Low Latency: End-to-end delay as low as 15–30ms
  • Flexible Frequency Support: Operates across 2.3GHz, 2.4GHz, and 2.5GHz unlicensed bands
  • HD Video + Telemetry: Integrated receiver for high-definition video and real-time flight data
  • Wide Flight Controller Compatibility: Supports Pixhawk 2, Cube, V2.4.8/4, and APM 2.8
  • Ground Software Integration: Works seamlessly with Mission Planner and QGroundControl
  • All-in-One Communication: Combines drone communication with video processing and analytics
  • Bidirectional Data Link: Embedded system for autonomous UAV and drone operations
  • Ethernet Connectivity: Supports TCP/IP and UDP for reliable network communication

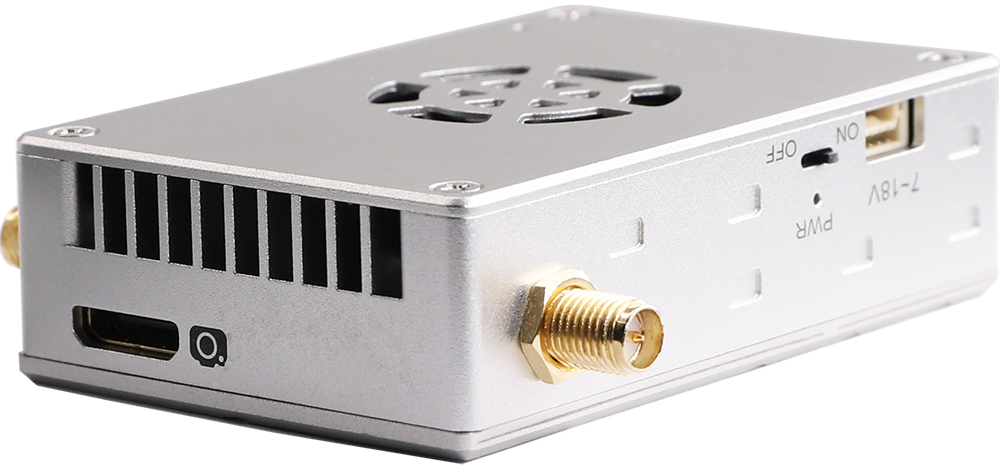

Transmitter Receiver For Drone



Enhanced Durability & Performance

– CNC-Machined Aluminum Housing: Dual aluminum alloy construction for superior impact resistance and efficient heat dissipation. – Extended Operating Range: Functions reliably in temperatures from -40°C to +85°C. – Compact & Lightweight Design: Measures just 72×47×19mm and weighs only 93g for easy integration and portability.

Reliable High-Quality Transmission

– COFDM Technology: Effectively eliminates multipath interference, enhances transmission efficiency, and ensures stable, reliable signal quality. – End-to-End Low Latency: – <33ms latency from transmitter to receiver. – CABAC entropy encoding with high compression maintains excellent video quality even at low bitrates. – Uniform frame encoding prevents delays from large I-frames. – Ultra-fast decoding for seamless video delivery.

Long-Range Connectivity

– Advanced RF Design: Combines high-performance power amplification, ultra-sensitive receivers, and robust modulation and FEC algorithms to maintain a stable, long-range wireless link between air and ground units.

Built for Extreme Environments

– Industrial-Grade Components: All chips and electronics are specially designed to operate reliably across the full -40°C to +85°C temperature range.

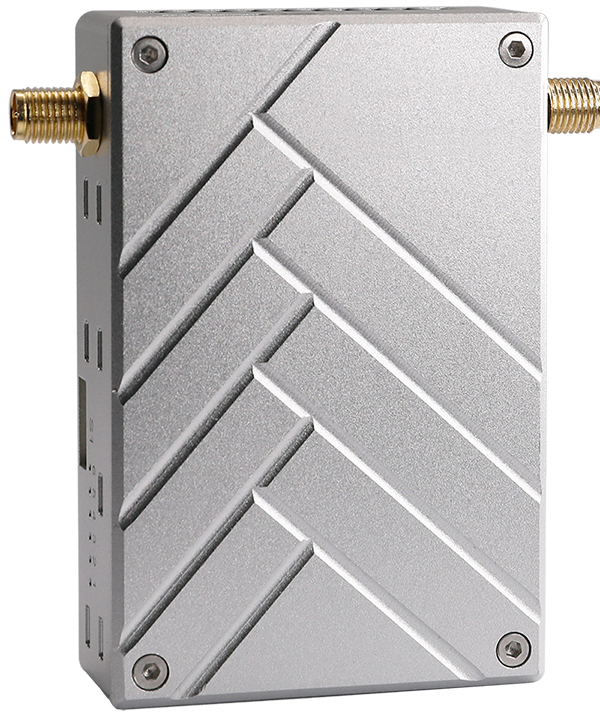

UAV drone video sender

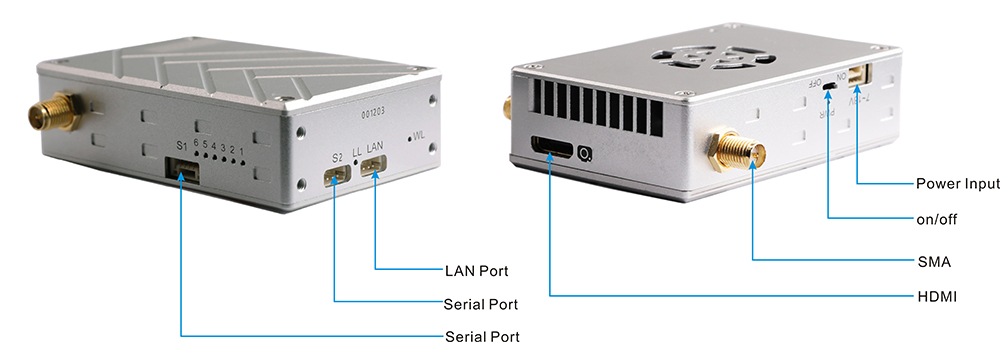

The FIM-2410 UAV video transmitter features multiple connectivity options—including HDMI, LAN, and two bi-directional serial ports—enabling high-definition video and telemetry transmission over distances of up to 10 km between the air unit and ground station. The serial ports are specifically designed for seamless integration with popular autopilot systems such as Cube Autopilot, Pixhawk 2/V2.4.8/4, and APM 2.8.



UAV Video downlink


Application

Drones with real time wireless video streaming link have a variety of applications in photography, surveillance, agriculture, disaster rescue and transporting food in remote or difficult area of cities.

5km Drone Video Transmitter



Frequency 2.3Ghz/2.4GHZ(2.402-2.478GHz)/2.5Ghz for your option
Error Detection LDPC FEC/Video H.264/265 Super Error Correction
RF Transmitted Power 1Watt (Air to ground 10-16km)
Power Consumption TX: 10Watts
RX: 6Watts
Frequency Bandwidth 4/8MHz
Latency ≤15-25ms
Transmission Rate 3-5Mbps
Receive Sensitivity  -100dbm@4Mhz, -95dbm@8Mhz
Video Color Space Default 4:2:0
Antenna 1T1R
Video Input/output Interface HDMI mini TX/RX, or transform FFC to HDMI-A RX/TX
Video Compressed Format H.264+H.265
Bitrate Up to 115200bps (Software adjustment)
Encryption AES 128
Transmission Distance Air to ground 10km-12km
Start-up time
Two-way function Support video and duplex data simultaneously
Data Support TTL
Power supply DC 7- 18V
Interface 1080P/60 HDMI Mini RX x1
100Mbps Ethernet to USB / RJ45 on Windows × 1
S1 TTL bidirectional serial port x1
Power Input x1
Indicator Light HDMI input/output Status
Transmitting and receiving
Video board working Status
Power
HDMI HDMI mini/Flexible Flat Cable(FFC)
Temperature Range Operating temperature: -40°C ~+ 85°C
Storage temperature: -55°C ~+ 100°C
Appearance Design CNC technology/ double aluminum alloy shell with waterproof design
Dimension 72×47×19mm
Weight Tx: 93g/Rx: 93g
