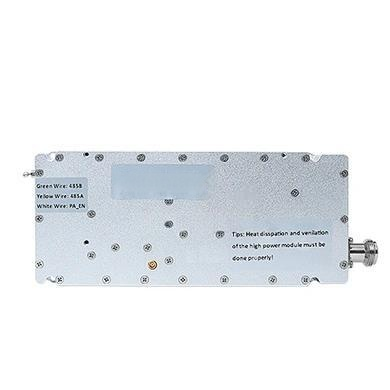

50W Power Amplifier: Model MOP-PA-2/6G-50W – Comprehensive Technical Overview
Engineered for high-frequency applications, the 50W Power Amplifier Model MOP-PA-2/6G-50W delivers exceptional performance across the 2-6GHz frequency range. This robust module combines high output power with precise controllability, making it ideal for demanding RF communication systems. With reliable temperature compensation, standing wave protection, and advanced monitoring features, it ensures stable operation in diverse environments. Whether you’re integrating into radar systems, wireless infrastructure, or test equipment, this amplifier offers the consistency and durability required for mission-critical tasks.
The amplifier’s design prioritizes both efficiency and safety. A maximum output power of 47±1dBm (approximately 50W) is achieved with a manageable operating current of ≤5A at 28V. Gain stability remains within ±1.5dB across the full temperature range of -10°C to +55°C, ensuring performance doesn’t waver under thermal stress. The inclusion of a dual directional coupler allows for accurate forward power and VSWR monitoring, while the enable switch and power regulation input provide flexible control. For long-term reliability, the module can withstand input power levels up to +10dBm for one minute without damage, and robust protections guard against overheating and reflected power.
Key Electrical and Performance Specifications
| Parameter | Specification | Remark |
|---|---|---|
| Frequency | 2-6GHz | |
| Operating Voltage | 28V | |
| Maximum Output Power | 47±1dBm | |
| Operating Current | ≤5A | |
| Controllable Output Power | 50W | |
| Gain | 46±1.0dB | |
| In-band Fluctuation | ±2dB peak | |
| Maximum Allowable Input Power | ≥+10dBm | Duration 1min without damage |
| Input Voltage VSWR | ≤2.0 | Add +28V, standard network output -10dBm |
| Output Voltage VSWR | ≤2.0 | Without power, standard network output -10dBm; ≤2.0 with power up, dual directional coupler test |
Environmental and Stability Ratings
| Parameter | Specification | Remark |
|---|---|---|
| Working Environment Temperature | -10~+55°C | Low temperature can start, monitoring works normally |
| Gain Stability | ±1.5dB@-10°C~+55°C | |
| Power Stability | ±1.5dB@-10°C~+55°C |
Power Supply and Control Interface (7W2 Connector)
| Pin | Signal | Description |
|---|---|---|
| A1 | VCC +28V | Power supply input |
| A2 | GND | Ground |
| 1 | TEMP_AL | Temperature detection AD voltage value |
| 2 | RUN | Forward power detection AD voltage value |
| 3 | VSWR_AL | Standing wave alarm: high level alarm, low level cancellation |
| 4 | PA_EN | Enable switch: high level (3V~5V) on, low level off |
| 5 | PA_ADJ | Power regulation input (0~5V): 0V for max attenuation, 5V for no attenuation |
Mechanical and Indicator Specifications
| Parameter | Specification |
|---|---|
| RF Output Connector | N Female |
| Module Dimension | 817725mm |
| Module Protection | Temperature compensation, over-temperature protection, standing wave protection |
| LED Module Indicators | POWER (power indicator), RUN (operation indication), VSWR (standing wave warning indication) |
The 50W Power Amplifier Model MOP-PA-2/6G-50W stands as a versatile and reliable solution for RF engineers needing consistent high-power amplification. With its detailed specifications, including frequency range, gain, and stability under varying temperatures, this module simplifies integration while ensuring robust performance. The included protections—over-temperature, standing wave, and temperature compensation—add a layer of safety that extends operational life. For professionals aiming to achieve peak efficiency in their RF systems, this amplifier delivers the precision and durability required.
