The Indispensable Role of the Intelligent 200W Power Amplifier in Modern EMC Testing
nnIn today’s world, where electronic devices are becoming increasingly sophisticated and interconnected, ensuring their reliable operation without causing or suffering from electromagnetic interference is paramount. This is where Electromagnetic Compatibility (EMC testing) steps in as a critical gatekeeper for global market access. As devices shrink in size and grow in complexity, the demands on testing equipment have never been higher. At the heart of every effective radiated immunity test—which simulates the harsh RF environments a product may encounter—lies a robust and intelligent power amplifier. Our Intelligent 200W 1.5GHz 2.4GHz Power Amplifier Module is engineered to be the definitive solution for meeting these modern EMC testing challenges, combining raw power with advanced protection and operational intelligence.nnThe primary mission of this amplifier is to serve as a reliable engine for a variety of rigorous EMC testing standards. Its applications are squarely focused on the most demanding scenarios in the industry. For Radiated Immunity Testing (per IEC 61000-4-3), it generates the high field strengths required in anechoic or semi-anechoic chambers to verify a device’s resilience to radiated RF energy. In Bulk Current Injection (BCI) testing, it delivers the precise, high-power RF signal needed to evaluate conducted immunity on cables and harnesses. Furthermore, for the highly regulated telecom and automotive sectors, this amplifier ensures that components and end-products meet stringent validation requirements, paving the way for certification and global market entry.nnWhat truly sets this amplifier apart is its comprehensive intelligence and protection suite, which goes far beyond basic VSWR protection. This is not merely a power source; it is a highly resilient component designed to maintain stability and performance under the most punishing test conditions. The system features a sophisticated thermal management architecture. Precision temperature sensors and control logic work in real-time with the cooling system to prevent overheating. This ensures unwavering stability even during extended dwell times at maximum power output, which is a critical requirement for thorough and reproducible testing. Additional safeguards against over-voltage, under-voltage, and over-current conditions further enhance its operational longevity and reliability, protecting both the amplifier and the valuable device under test.nn
Technical Specifications of the Power Amplifier for EMC Testing
nnFor engineers and test managers, understanding the exact performance parameters is crucial. The following table details the key specifications that define the capability of this amplifier, ensuring it meets the exacting demands of modern EMC testing environments.nn
| Parameter | Value | Notes |
|---|---|---|
| Working Frequency | 1.5 GHz / 2.4 GHz | Switchable bands |
| Saturated Power Output | ≥ 53 dBm | At Max. Output |
| Flatness @ Psat | ± 1 dB | |
| Max. Gain Flatness | 0.5 dB | |
| RF Input Drive | 0-5 dBm | |
| Input & Output VSWR | 1.5 : 1 | |
| Power On/Off Time | Fast | Integrated control |
| Working Voltage | DC +32V | Nominal |
| Working Current | 20 A | Typical |
| Impedance | 50 ohms | |
| Harmonics @ Max. Power | > 20 dBc | |
| Non-Harmonics Spurious @ Max. Power | > 60 dBc | |
| Power Supply Interface | 7W2 Connector | |
| RF IN Port | SMA-KFD | |
| RF OUT Port | N-Female | |
| Working Temperature | –40 to +60 °C | |
| Enable Control | ON: 3.3V, OFF: 0V (Default 3.3V) | |
| Protection Features | Reverse Polarity; Over-temperature (>85°C); Over-voltage (>36V); Under-voltage (<24V); Over-current (>30A) | Auto power off with hysteresis |
| Monitor Interface | 4PIN Connector with DB9 Connector | |

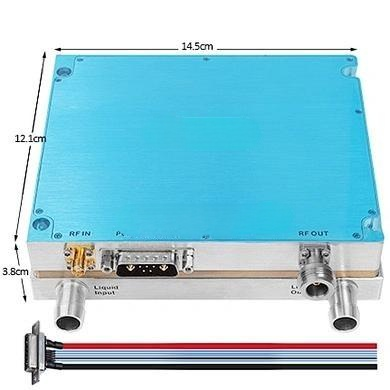

| Amplifier Size | 153 × 123 × 40 mm | |
| Weight | 3 kg |
nn
Advanced Protection and Monitoring for Uninterrupted Testing
nnThe amplifier’s resilience is built on a multi-layered protection scheme. The thermal management system automatically powers down the amplifier if internal temperatures exceed 85°C and restores operation once it cools to below 65°C, eliminating the risk of thermal runaway during long tests. Similarly, voltage protection ensures safe operation within a 24V to 36V window, while a 30A over-current threshold safeguards against catastrophic failures. A dedicated monitor interface via a 4PIN connector with a DB9 adapter allows for real-time status tracking, integrating seamlessly with automated test systems.nn
Conclusion: Elevating EMC Testing with Intelligent Power
nnIn conclusion, as the landscape of electronic devices continues to evolve, the need for rigorous and reliable EMC testing has never been more acute. Our Intelligent 200W Power Amplifier Module is not just a component; it is a cornerstone for any serious EMC testing laboratory. By offering unmatched power, precision, and a comprehensive safety architecture—including VSWR, thermal, and voltage protection—it delivers the consistency and peace of mind required for repeatable, accurate immunity testing. Whether applied in radiated immunity, BCI, or telecom validation, this amplifier ensures that your EMC testing processes are efficient, dependable, and compliant with the world’s most stringent standards.
