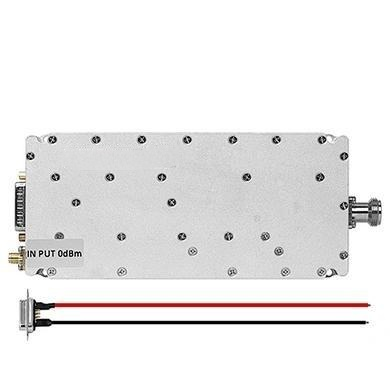

Unleashing Performance: The 30-600MHz 50W Wide Band Power Amplifier Module
In the rapidly evolving world of RF engineering, the demand for versatile, high-performance amplification solutions has never been greater. Enter the 30-600MHz 50W wide band power amplifier module, a powerhouse designed for general-purpose applications that demand exceptional flexibility and reliability. With an operating frequency spanning from 30MHz to 600MHz, this module covers a broad spectrum that makes it highly adaptable across a variety of operational environments—from telecommunications and radar systems to electronic warfare and test equipment.
What sets this module apart is its utilization of advanced Class AB Gallium Nitride (GaN) technology on a Silicon Carbide (SiC) substrate. This combination delivers superior efficiency, power density, and thermal management, addressing the toughest challenges in modern RF amplification. The GaN-on-SiC design ensures minimal thermal issues, even under demanding operational conditions, while maintaining high linearity and gain. For engineers seeking a wide band power amplifier module that balances performance with compact form factor, this device represents a top-tier choice.
Key Technical Specifications and Features
Below is a comprehensive breakdown of the technical parameters and performance metrics that define this wide band power amplifier module. The data emphasizes its reliability, integration ease, and robust operational capabilities.
| Technical Parameter | Value or Condition |
|---|---|
| Working Frequency | 30 – 600 MHz |
| Saturated Power Output | 47 ± 1 dBm (approximately 50W) |
| Gain | 47 ± 2 dB |
| In-band Flatness | Compliant with ±2 dB gain variation |
| Working Current | ≤ 5 A |
| Input and Output VSWR | ≤ 1.5:1 |
| Out-of-Band Spurs (9 kHz – 1 GHz) | ≤ -36 dBm / 30 kHz |
| Out-of-Band Spurs (1 GHz – 12.75 GHz) | ≤ -30 dBm / 30 kHz |
| Maximum Lossless Input Power | +10 dBm (typical) |
| Operating Voltage | DC +28 V |
| Power Supply Interface | 2W2 connector |
| RF Port | SMA female |
| Monitoring Interface | DB9: Pin 1 (TEMP), Pin 3 (VSWR) |
| Operating Temperature | -10°C to +55°C |
| Relative Humidity | 5% to 95% (non-condensing) |
| Storage Temperature | -25°C to +65°C |
Advanced GaN Technology for Unmatched Efficiency
The heart of this wide band power amplifier module is its GaN-on-SiC design, which delivers an instantaneous wide bandwidth that is critical for applications requiring rapid frequency agility. Unlike traditional amplifiers that suffer from performance degradation across frequency bands, this module maintains consistent output power and gain from 30MHz to 600MHz. The Class AB biasing ensures excellent linearity, making it ideal for both analog and digital modulation schemes.
Thermal Management That Sets a New Standard
Heat dissipation is a perennial challenge in high-power RF design. This module addresses that challenge with patented thermal management technology: the GaN die is directly attached to a copper subcarrier, optimizing heat transfer from the semiconductor junction to the heatsink. This innovative design significantly lowers junction temperatures, reduces thermal stress, and extends device lifespan. As a result, the wide band power amplifier module can operate reliably even in extreme environments without thermal shutdown risks.
Seamless Integration and Rugged Construction
One of the most attractive features of this wide band power amplifier module is its ease of integration. The 50-ohm input and output impedance eliminates the need for external matching networks, simplifying PCB layout and reducing bill-of-materials cost. Despite its high power output, the module is remarkably compact and lightweight, designed for installation in space-constrained platforms such as unmanned systems, portable test gear, and compact radar assemblies.
Durability is another hallmark of this design. Every component is carefully selected for ruggedness and reliability, ensuring that the module withstands vibrations, temperature cycling, and humidity extremes. The SMA RF port and DB9 monitoring interface enable straightforward connection and system-level diagnostics. Real-time monitoring of internal temperature and VSWR via the DB9 connector allows for proactive system management—an essential feature for mission-critical applications.
Wide-Ranging Applications
From telecommunications infrastructure to electronic warfare, the versatility of this module is unmatched. In radar systems, it powers pulsed signals with consistent performance across multiple frequency bands. In test and measurement equipment, its low spurious output and high dynamic range ensure accurate results. For industrial and commercial RF systems, it provides a robust, high-power solution that fits seamlessly into existing architectures.
Conclusion: The Ultimate Choice for High-Frequency Power Amplification
In summary, the 30-600MHz 50W wide band power amplifier module represents a breakthrough in RF amplifier design. By leveraging GaN-on-SiC technology, it delivers exceptional bandwidth, power density, and thermal performance in a compact package. Its 50-ohm impedance match and robust monitoring interfaces simplify system integration, while the patented thermal management ensures long-term reliability. Whether for defense, telecommunications, or industrial applications, this module stands as a premier solution for any engineer seeking a high-performance wide band power amplifier module. When performance, reliability, and versatility are non-negotiable, this amplifier delivers without compromise.
