Unleashing the Power of Gallium Nitride: The Next-Generation GaN Power Amplifier
nn
In the demanding world of high-frequency signal amplification, performance and reliability are non-negotiable. Enter the advanced GaN power amplifier, a technological powerhouse engineered for the 900–1300MHz frequency band. This amplifier 200w solution doesn’t just meet expectations—it redefines them. Built on the cutting-edge properties of gallium nitride, this device delivers extraordinary strength, exceptional efficiency, and unwavering stability, making it a strong contender for the title of the best GaN amplifier on the market today.
nn
Whether you are upgrading a communication base station, enhancing radar system capabilities, or deploying sophisticated wireless communication equipment, this GaN power amplifier provides a robust and reliable solution. Its design philosophy centers on maximizing power output while minimizing signal degradation and energy waste, ensuring that your signal travels cleanly and powerfully across the spectrum. Let’s delve into the technical prowess that makes this amplifier a standout performer.
nn
Exceptional Key Performance Metrics of the GaN Power Amplifier
nn
At the heart of this device lies a set of meticulously engineered parameters. The ability to maintain high gain and low fluctuation across a wide band is what separates a good amplifier from a great one. This amplifier’s performance metrics are designed to ensure that every watt of power is used effectively, providing a clean, strong signal for the most demanding applications.
nn
The amplifier achieves a maximum output power of ≥53dBm, a figure that underscores its capability as a true amplifier 200w. With a maximum gain of 53±1.5dB—customizable to suit specific application needs—and an in-band peak-to-peak fluctuation of ≤1.5dB, signal integrity is maintained with high precision. This level of consistency is critical for advanced communication protocols and high-resolution radar imaging, where even minor distortions can lead to data loss or misinterpretation.
nn
Signal purity is equally paramount. Spurious emissions are strictly controlled and minimized to ensure clean transmission and reception. This reduces interference with adjacent channels, a necessity in crowded spectral environments. Furthermore, the voltage standing wave ratio (VSWR) is maintained at ≤1.6, indicating excellent impedance matching. This reduces signal reflections, protecting the amplifier and upstream components while maximizing power transfer efficiency.
nn
The operational robustness of the GaN power amplifier is equally impressive. It operates on a 32V supply voltage with a full power working current of ≤20A, and it functions flawlessly across a wide temperature range from -40℃ to +55℃. This resilience allows it to perform in diverse and challenging climates, from arctic installations to desert-based radar systems.
nn
Technical Specifications at a Glance
nn
For a clear and precise overview, all critical technical parameters are detailed below.
nn
| Parameter | Value | Remarks |
|---|---|---|
| Frequency Band | 900–1300 MHz | |
| Max. Output Power | ≥53 dBm | |
| Max. Gain | 53 ± 1.5 dB | Customizable |
| In-Band Fluctuation (Peak-to-Peak) | ≤1.5 dB | |
| Spurious Emissions | 9kHz–1GHz: ≤-36dBm | RBW = 100kHz |
| 1GHz–12.75GHz: ≤-30dBm | RBW = 1MHz (Excluding SEM test band) | |
| VSWR | ≤1.6 | |
| Supply Voltage | 32V | |
| Working Current | ≤20A | @ Full Power |
| Working Temperature | -40 ~ +55℃ |
nn
Advanced Interface and Control Architecture
nn
Integration into complex systems is seamless, thanks to a well-thought-out interface design. The GaN power amplifier features various ports and controls that allow for easy configuration, monitoring, and protection. Below are the details for power supply, RF connectivity, and digital control interfaces.
nn
| Interface / Feature | Specification |
|---|---|
| Power Supply Interface | M4.0 Feedthrough Capacitor |
| RF Port (Input) | ANT IN: SMA |
| RF Port (Output) | ANT OUT: N (Customizable) |
| Switch Control | M2.5 Through-core Capacitor: High level turns on; Low level turns off (High level voltage is 2.5V) |
| Output Open Circuit Alarm | M2.5 Feedthrough Capacitor: High level open circuit alarm |
| Communication Monitoring | 14Pin 2.5 pitch: Pin 1: A; Pin 2: GND; Pin 3: B; Pin 4: NC |
nn
Inherent Protection and Environmental Robustness
nn
To guarantee long-term operational integrity, the amplifier 200w is equipped with multiple layers of intelligent protection. These systems work automatically to prevent damage from external faults or extreme conditions, ensuring continuous, reliable service.
nn
| Protection Feature | Specification |
|---|---|
| Temperature Detection Error | ≤3℃ |
| Downlink Output Power Detection | ≥20dB (P0+2 – P0-18) |
| Open Circuit Protection | PA switches off when VSWR > 2.5 dB; indicator light alarms; automatic restart to recover |
| Overheating Protection | ≥90°C switch on; ≤65°C switch off (automatic) |
nn
Embedded Intelligence and Physical Construction
nn
The intelligence of the GaN power amplifier extends to its fully integrated embedded software environment. The amplifier is fully connected to the RS485 communication standard, providing the ability to control actual temperature, outflow rate, and descending road decline control. This level of digital integration allows for remote monitoring and adjustment, fitting seamlessly into modern, automated network architectures.
nn

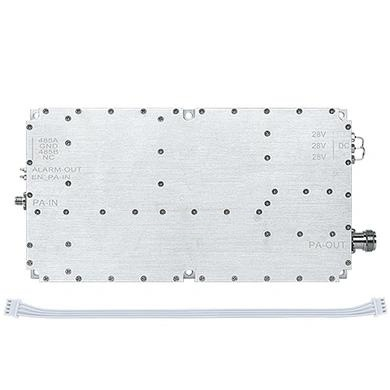

Physically, the amplifier is constructed from durable aluminum for optimal heat dissipation and structural rigidity. Its dimensions of L220 W118 * H27 mm make it a compact solution for high-power applications, with M4 standard fixed-hole spacing for secure installation.
nn
Conclusion: The Ultimate Choice for High-Performance Applications
nn
This GaN power amplifier represents a significant leap forward in solid-state amplification technology. By combining the superior material properties of gallium nitride with a meticulously engineered circuit design, it delivers an unmatched combination of power, efficiency, and reliability. As an amplifier 200w, it provides the muscle needed for the most demanding systems, while its low spurious emissions, excellent VSWR, and comprehensive protection features ensure a long, trouble-free operational life.
nn
Whether your priority is reducing energy consumption in a massive MIMO base station, achieving crystal-clear signal integrity in a radar system, or building a robust communication link that can withstand extreme temperatures, this GaN power amplifier is the ideal choice. It is the definitive solution for professionals who demand high performance and high stability from their signal amplification hardware.
