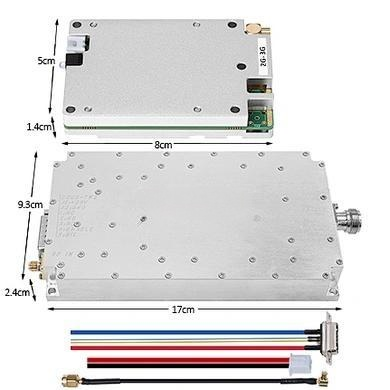

Introduction to the 2-3GHz GaN HEMT 100W CW High Power Amplifier
n
In the demanding world of radio frequency (RF) engineering, the quest for power, efficiency, and reliability is relentless. The 2-3GHz GaN HEMT 100W Continuous Wave High Power Amplifier emerges as a standout solution, expertly crafted for premium RF applications. By harnessing the groundbreaking capabilities of Gallium Nitride (GaN) HEMT technology, this device achieves an exceptional balance between substantial power output and superior energy efficiency. Delivering a robust 50dBm (equivalent to 100 watts) in continuous wave (CW) mode, this high power amplifier provides the stable, unwavering RF energy required for a wide spectrum of mid-to-high power scenarios. Whether for sophisticated communication systems, advanced radar equipment, or other high-stakes RF environments, this amplifier ensures dependable performance. Its design prioritizes signal integrity and ease of integration, making it a pivotal component for engineers seeking to optimize system performance. The focus keyword, 2-3GHz GaN HEMT 100W Continuous Wave High Power Amplifier, encapsulates the core of this technology: a fusion of frequency range, semiconductor innovation, and continuous wave capability that defines modern RF amplification.
nn
Key Performance Parameters and Specifications
n
To fully appreciate the capabilities of the 2-3GHz GaN HEMT 100W Continuous Wave High Power Amplifier, it is essential to examine its technical specifications. These parameters highlight the device’s adherence to strict performance standards and its suitability for critical applications. Below is a detailed breakdown of its operating characteristics, presented in a clear and organized format.
nn
| Specification | Value | Notes |
|---|---|---|
| Frequency Range | 2000 MHz – 3000 MHz | Covers the 2-3GHz band |
| Output Power | 50 dBm (100W) | Continuous Wave (CW) mode |
| Working Mode | CW | Stable, continuous operation |
| Spurious Level | ≥ 50 dBc | Minimizes unwanted signal emissions |
| Input Power | 0 ± 1 dBm | Optimal drive level |
| Efficiency | ＞ 25% | High power conversion |
| Output Flatness | 1 dB | Consistent gain across band |
| Input VSWR | 1.5:1 | At 400-700 MHz, 750-1300 MHz (Input Only) |
| Input/Output Connector | N-KFD50 | Robust and reliable |
| Temperature Range | -30°C to +55°C | Wide operational envelope |
| Supply Voltage | +28V | Standard power requirement |
nn
Operational Benefits and Design Features
nn
Exceptional Signal Integrity
n
The 2-3GHz GaN HEMT 100W Continuous Wave High Power Amplifier excels in preserving signal purity. With an input VSWR as low as 1.5:1, it effectively minimizes energy reflections and ensures maximum power transfer from the source. This low voltage standing wave ratio is critical for maintaining signal transmission quality and reducing system losses. Additionally, the spurious level of 50 dBc confirms that the amplifier produces clean, interference-free output, which is essential for sensitive applications like radar and high-speed data links.
nn
Advanced Thermal Management and Durability
n
Reliability in harsh environments is a hallmark of this amplifier. Designed to operate across an extensive temperature range of -30°C to +55°C, it remains stable under extreme conditions. To ensure prolonged reliability, the amplifier requires cold plate contact heat dissipation—a standard method for managing the thermal load of high-power GaN devices. This thermal design, combined with robust N-KFD50 connectors, makes the amplifier suitable for both laboratory use and field deployment, where consistent performance is non-negotiable.
nn
Seamless System Integration
n
Ease of use is a key design consideration. The amplifier features a DB9 control interface, enabling straightforward integration into larger systems. A TTL high-level enable function simplifies operation, allowing engineers to remotely control the amplifier with standard logic signals. This plug-and-play approach reduces deployment time and enhances system flexibility, making the 2-3GHz GaN HEMT 100W Continuous Wave High Power Amplifier a preferred choice for original equipment manufacturers (OEMs) and system integrators.
nn
Conclusion: Powering the Future of RF Applications
n
In summary, the 2-3GHz GaN HEMT 100W Continuous Wave High Power Amplifier represents a significant leap in RF amplification technology. Its combination of high output power (100W), exemplary efficiency, and robust design enables it to meet the stringent demands of modern communication systems, radar equipment, and other high-performance RF applications. The integration of GaN HEMT technology ensures not only high power density but also improved thermal performance and long-term reliability. With its low VSWR, clean output, and wide temperature tolerance, this amplifier delivers consistent RF energy, even in challenging environments. As the industry continues to push toward higher frequencies and greater power levels, this amplifier stands ready to serve as a cornerstone for innovative RF solutions, proving that advanced technology can be both powerful and practical. For engineers seeking to optimize their systems, the 2-3GHz GaN HEMT 100W Continuous Wave High Power Amplifier is a compelling choice that balances performance, durability, and ease of integration.
