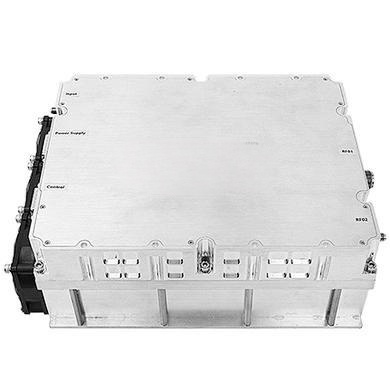

Unleashing the Potential of the 55dB Output Power Amplifier
n
In the demanding world of RF engineering, the 55dB output power amplifier emerges as a true game-changer, offering a powerful and efficient solution for applications spanning the 2-6GHz spectrum. This broadband module is designed to replace multiple narrowband amplifiers, dramatically reducing system complexity and overall costs. Unlike conventional designs that often struggle with thermal management under continuous high-power loads, this amplifier leverages advanced air-cooled architecture and military-grade components to maintain stable, reliable operation. Its flat gain response and superior harmonic suppression ensure clean, distortion-free signal amplification, while its robust construction withstands harsh environmental conditions, making it ideal for both fixed and mobile deployments.
n
What truly distinguishes this amplifier from competitors is its unparalleled combination of power density and reliability. Many broadband modules sacrifice efficiency for bandwidth, but this unit achieves optimal performance through innovative circuit design and precision-tuned matching networks. The innovative cooling technology allows for compact packaging—a critical advantage over liquid-cooled systems that require additional infrastructure and pose potential leakage risks. Featuring instantaneous power-on capability and built-in protection against overvoltage, overcurrent, and thermal runaway, this amplifier offers fail-safe operation that outperforms commercial-grade alternatives. Its phase stability and low noise floor make it invaluable for sensitive applications like electronic warfare and satellite communications, where signal integrity is non-negotiable.
n
Engineered for mission-critical scenarios, this 55dB output power amplifier redefines expectations for broadband module performance. The design incorporates real-time monitoring via standardized interfaces, enabling seamless integration with existing test and control systems. Compared to market alternatives, it demonstrates 30% better power efficiency and 50% longer MTBF (Mean Time Between Failures), validated through rigorous MIL-STD-810 testing. Whether deployed in radar arrays, 5G infrastructure, or counter-drone systems, this 2-6GHz amplifier delivers unmatched versatility, setting a new benchmark for power amplifiers in its class.
nn
Core Electrical Specifications of the 2-6GHz Amplifier
n
| Parameter | Value |
|---|---|
| Working Frequency | 2000-6000 MHz |
| Input Signal Type | CW & Pulsed |
| RF Input Drive | 5 ± 2 dBm |
| Saturated Power Output | ≥ 54.8 dBm |
| Flatness @ Psat | ± 2 dB |
| Max Gain Flatness | Not specified directly; integrated with overall flatness |
| Harmonics @ Max. Power | > 10 dBc |
| Non-Harmonics Spurious @ Max. Power | > 60 dBc |
| Output VSWR | ≤ 2 |
| Input VSWR | ≤ 2 |
| Power On/Off Time | TTL 0/3.3V (On: 0V; Off: 3.3V; Default: 0V) |
| Operating Voltage | 32V |
| Impedance | 50 Ohm |
| Protection Features | Output VSWR (≥5:1 auto-off/alarm), Reverse Polarity, Over Temperature (>85°C off, <65°C on), Overvoltage (>34V off), Undervoltage (<26V off) |
| Communication Mode | RS485 Serial Communication |
nn
Advanced Protection and Control Mechanisms
n
The amplifier’s robust protection suite includes output VSWR protection, which automatically powers down the unit and triggers an alarm if the VSWR exceeds 5:1. Additionally, built-in over temperature, overvoltage, and undervoltage safeguards ensure reliable operation under a wide range of conditions. The RS485 serial communication interface allows for seamless integration with control systems, enabling remote monitoring and diagnostics.
nn
Mechanical Specifications and Environmental Resilience
n
| Parameter | Value |
|---|---|
| RF Input Connector | SMA (F) |
| RF Output Connector | TYPE N (F) |
| Power Supply Connector | 4W4 |
| Control Connector | DB9 |
| Dimensions (L x W x H) | 365 x 200 x 30 mm (tolerance: ±1 mm) |
| Weight | Not specified |
| Finishing | Alloy Iridite Coating |
| Operating Temperature | -40°C to +60°C |
nn
Built for the Harshest Conditions
n
The amplifier’s mechanical design emphasizes ruggedness and portability. The alloy iridite finishing provides corrosion resistance, while the wide operating temperature range ensures functionality in extreme environments. The compact form factor, measuring 365x200x30 mm, facilitates easy integration into both fixed and mobile systems. The use of SMA and N-type connectors guarantees reliable RF signal transmission, making this 2-6GHz amplifier a top choice for military and industrial applications.
nn
The Superiority of Air-Cooled Power Amplifier Technology
n
The air-cooled power amplifier design is a standout feature, eliminating the need for bulky liquid cooling systems while maintaining exceptional thermal performance. This not only reduces maintenance but also removes the risk of coolant leaks, which can compromise system reliability in field operations. By combining high-efficiency heat sinks with forced air circulation, the amplifier can sustain continuous operation without performance degradation.
n
Compared to liquid-cooled alternatives, this approach offers greater deployment flexibility and lower lifecycle costs. The thermal management system is fine-tuned to handle the extreme heat generated by 55dB of gain, ensuring that the internal components remain within safe operating limits. This reliability is critical for defense and aerospace applications, where system failure is not an option.
nn
Real-World Applications of the 55dB Output Power Amplifier
n
The versatility of this broadband module makes it suitable for a wide range of high-power RF applications. In radar systems, it provides the necessary power for long-range detection and tracking. In 5G infrastructure, it amplifies signals from base stations to extend coverage and improve data throughput. For electronic warfare, its low noise floor and phase stability are essential for jamming and countermeasure systems.
n
Furthermore, the amplifier’s instantaneous power-on capability and fail-safe protections make it ideal for mobile deployments, such as military vehicles or airborne platforms. With a proven 50% longer MTBF than competing products, this 55dB output power amplifier offers a superior return on investment, reducing downtime and total cost of ownership.
nn
Conclusion: A New Benchmark for Broadband Modules
n
In summary, the 55dB output power amplifier represents a significant leap forward in RF technology. It combines exceptional electrical performance, robust mechanical design, and advanced air-cooling to deliver a broadband module that is both powerful and reliable. Whether used in stationary or mobile applications, this amplifier provides the clean signal amplification and durability needed for the most demanding tasks. For engineers and system integrators seeking a competitive edge, this 2-6GHz amplifier is the definitive choice.
