Unleashing High-Power Performance: The X-Band 120W Pulse Power Amplifier
nnIn the demanding world of RF pulse applications, reliability and power are non-negotiable. The X-Band 120W pulse power amplifier stands as a testament to engineering excellence, delivering robust performance for radar, communication, and test systems. This article explores the key features and specifications of this high-performance amplifier, demonstrating why it is an essential component for modern RF systems.nn
Critical Technical Specifications of the X-Band 120W Pulse Power Amplifier
nnThe X-Band 120W pulse power amplifier operates within the critical 9.05 to 9.55 GHz frequency range, making it ideal for X-band applications. Its design centers on delivering a saturated output power exceeding 51dBm, ensuring strong signal transmission even in challenging environments. The amplifier supports a flexible pulse width range from 10 to 3000 microseconds with a 30% duty cycle, accommodating diverse operational requirements. With an RF input drive of 5±1dBm, it integrates seamlessly into existing systems, while its rise and fall times of ≤200ns ensure precise pulse shaping. The on/off ratio of less than 80dB provides excellent signal isolation, critical for reducing interference.nnTo offer a clear overview of its capabilities, the technical parameters are summarized in the table below:nn
| Parameter | Specification |
|---|---|
| Frequency Range | 9.05 ~ 9.55 GHz |
| Input Signal Type | Pulse |
| Pulse Width Range | 10 ~ 3,000 µs |
| Duty Cycle | 30% |
| RF Input Drive | 5 ± 1 dBm |
| Saturated Output Power | ＞51 dBm (at 60°C, after 3 min with cold plate cooling) |
| Rise & Fall Time | ≤200 nS |
| Harmonics @ Max Power | ＞50 dBc |
| Non-Harmonics Spurious @ Max Power | ＞60 dBc |
| On/Off Ratio | ＜80 dB |
| Output VSWR | ＜1.8:1 (design assurance) |
| Input VSWR | ＜2:1 |
| Efficiency | 20% |
| Input/Output Impedance | 50 Ohm |
| Operating Voltage (Steady State) | 36V |

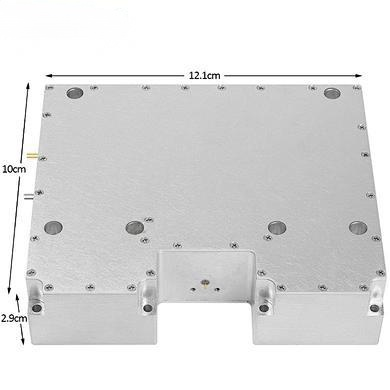

| Weight | Less than 1.0 kg |
| Dimensions | Based on 3D confirmed model |
| Operating Temperature | -30 ~ 60°C |
nn
Robust Protection and Reliability in the X-Band 120W Pulse Power Amplifier
nnBeyond raw power, the X-Band 120W pulse power amplifier is engineered for durability and system safety. It incorporates a multi-tiered protection suite designed to safeguard both the amplifier and the broader system. This includes over-temperature protection (with alarm only), overvoltage and undervoltage protection (which turns off the module), and overcurrent protection. These features ensure that the amplifier can withstand harsh operating conditions, from -30 to 60 degrees Celsius, without compromising performance.nnThe amplifier’s 50-ohm input and output impedance standardize integration, while an input VSWR of less than 2:1 and an output VSWR of less than 1.8:1 minimize signal reflections and power loss. With an efficiency of 20% and a compact weight of less than 1.0 kg, this unit balances performance with practicality for both lab testing and field deployment. The combination of high power, precise pulse control, and robust protection makes this X-Band 120W pulse power amplifier a cornerstone for any high-stakes RF application.nn
Conclusion
nnThe X-Band 120W pulse power amplifier is more than just a component; it is a high-performance solution designed for the most demanding RF pulse applications. With its saturated output power exceeding 51dBm, flexible pulse width support, and comprehensive protection systems, it delivers the reliability and power necessary for radar, communication, and test systems. Whether deployed in a laboratory or integrated into a larger system, this X-Band 120W pulse power amplifier ensures robust performance and long-term stability, making it an indispensable asset for engineers and system designers.
