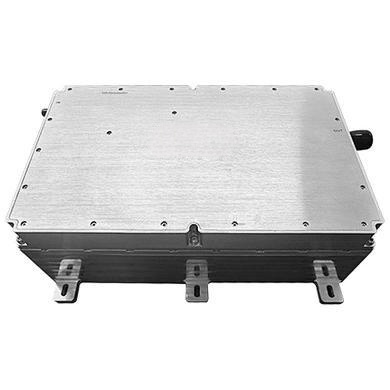

Unleashing Broadband Power: The MOP-PA-0.5/6G-100W GaN SSPA
nn
In the fast-evolving world of wireless communications, the demand for robust, high-performance amplification has never been greater. Enter the MOP-PA-0.5/6G-100W, a broadband power amplifier module meticulously engineered to excel across an exceptionally wide frequency range. This solid-state power amplifier (SSPA) leverages cutting-edge GaN technology to deliver an extraordinary 51dBm of saturated output power—approximately 126 watts—while maintaining exceptional linearity and efficiency. Whether you are pushing the boundaries of 5G NR, refining LTE networks, or exploring the capabilities of WiFi 6E, this amplifier provides the raw performance and reliability needed for the most demanding applications.
nn
What truly sets the MOP-PA-0.5/6G-100W apart is its remarkable ability to combine broad frequency coverage with high gain and signal integrity. Achieving a typical gain of 51dB with a tight flatness of ±2.5dB, it ensures that signals are not only powerful but also faithfully reproduced across the entire 0.5–6GHz spectrum. This makes it an indispensable tool for engineers and researchers working on multi-standard systems, where a single amplifier must handle diverse waveforms and frequency bands without compromise. From EMC testing to radar simulation, this module delivers consistent, high-quality performance.
nn
Key Advantages of a Broadband Power Amplifier
nn
Modern communication and testing systems demand more than just raw power; they require intelligence, adaptability, and resilience. The MOP-PA-0.5/6G-100W addresses these needs with a suite of advanced features:
nn
Broadband Excellence and Harmonic Suppression
n
The amplifier’s broadband power amplifier design ensures seamless operation from 0.5GHz to 6GHz. Coupled with outstanding harmonic suppression—typically -20dBc for second harmonics and -25dBc for third harmonics at 45dBm output—it minimizes unwanted spurious emissions, preserving signal purity and compliance with stringent regulatory standards.
nn
Multi-Signal Compatibility
n
This SSPA is not confined to a single waveform type. It effortlessly handles CW, pulsed, wideband instantaneous signals, and complex high-order modulated waveforms like QAM and OFDM. This versatility makes it ideal for EMC testing, radar simulation, and advanced R&D environments where signal diversity is a given.
nn
Rugged Design for Harsh Environments
n
Built to last, the module features triple protection mechanisms against thermal overload, overcurrent, and VSWR mismatches up to 3:1. The IP67-rated enclosure provides exceptional dust and water resistance, and the amplifier operates reliably across a wide temperature range of -10°C to +55°C, ensuring sustained performance in challenging field conditions.
nn
Technical Specifications and Mechanical Details
nn
Understanding the precise parameters of the MOP-PA-0.5/6G-100W is essential for integration. Below is a comprehensive breakdown of its electrical and mechanical characteristics, organized for quick reference.
nn
| Parameter | Condition | Typical | Min / Max |
|---|---|---|---|
| Frequency Range | — | 0.5–6 GHz | — |
| Saturated Output Power | Pin=0dBm | 51 dBm | 49 dBm (Min) |
| P1dB | — | 47 dBm | 44 dBm (Min) |
| Gain | Pin=0dBm | 51 dB | 49 dB (Min) |
| Gain Flatness | Pin=0dBm | ±2.5 dB | — |
| Small Signal Gain | Pin=-40dBm | 64 dB | — |
| Small Signal Gain Flatness | Pin=-40dBm | ±3.5 dB | — |
| Isolation (Disable Status) | — | 90 dB | — |
| Input Power | — | 0 dBm | — |
| 2nd Harmonic Suppression | Pout=45dBm | -20 dBc | -15 dBc (Max) |
| 3rd Harmonic Suppression | Pout=45dBm | -25 dBc | -20 dBc (Max) |
| Spurious Suppression | Pout=45dBm | -70 dBc | -65 dBc (Max) |
| Input VSWR | — | 1.5:1 | 2:1 (Max) |
| Supply Voltage | — | 32 V | — |
| Power Consumption | Pin=0dBm | 550 W | — |
| Input RF Level (no damage) | — | ≤10 dBm | — |
| Load VSWR (undamaged) | — | ≤3:1 | — |
| Thermal Degradation | — | 75 °C | — |
| RF Connector (Input) | — | SMA (F) | — |
| RF Connector (Output) | — | Type N (F) | — |
| Power Supply Connector | — | D-Sub 7W2 | — |
| Control Connector | — | D-Sub 7W2 | — |
| Dimensions (L x W x H) | — | 276.0 x 206.5 x 100.0 mm | ±0.5 mm |
| Weight | — | 6000 g | — |
| Finishing | — | Alloy Iridite | — |
| Operating Temperature | — | -10 °C ~ +55 °C | — |
| Storage Temperature | — | -40 °C ~ +75 °C | — |
| Heat Dissipation | — | Forced Air Cooling | — |
| Waterproof Grade | — | IP67 | — |
| Environmental | — | N/A | — |
nn
Typical Applications for This Broadband Power Amplifier
nn
The versatility of the MOP-PA-0.5/6G-100W makes it a perfect fit for a wide array of high-stakes applications:
nn
- n
- 5G Base Stations: Enhance sub-6GHz coverage with high linearity and power, ensuring robust signal delivery in dense urban environments.
- EMC Compliance Testing: Drive radiated immunity antennas per IEC/EN 61000-4-3 standards with confidence, thanks to its clean output and low harmonic distortion.
- Defense and Radar: Amplify L/S/C-band pulsed signals for electronic warfare scenarios and advanced radar simulation, where reliability and performance are paramount.
- Automated Test Equipment (ATE): The compact 276 x 206.5 x 100mm form factor integrates seamlessly into standard 19-inch racks, fitting into existing test systems without hassle.
n
n
n
n
nn
Conclusion: A Transparent Broadband Power Amplifier Solution
nn
The MOP-PA-0.5/6G-100W stands as a testament to modern GaN technology, offering a unique combination of broad frequency coverage, high power, and exceptional signal fidelity. Its robust design, multi-signal compatibility, and comprehensive protection features make it a reliable choice for engineers and system integrators working on the most advanced wireless and testing applications. By delivering consistent performance under demanding conditions, this broadband power amplifier module empowers innovation across 5G, defense, EMC, and beyond—solidifying its place as a critical component in the next generation of high-frequency systems.
