Key Features
Crystal-Clear, Real-Time Video Experience ultra-low 50ms latency with full 1080P HD video—so responsive, it feels like you’re there. Lightweight & Durable Design Weighing just 146g for both air and ground units, its compact CNC aluminum alloy housing offers impact resistance and superior heat dissipation. Long-Range & Highly Secure Transmit video, control, telemetry, and payload data bidirectionally up to 30km on a single RF channel, protected by AES 128-bit encryption. Superior Signal Reliability COFDM modulation ensures strong diffraction and stable high-speed connectivity, even in challenging environments. Fully Compatible & Adaptable Works seamlessly with Pixhawk 2, Cube, v2.4.8/4, and APM 2.8. Adjust frequency, RF power, and bandwidth on the fly. Advanced Connectivity & Encoding Equipped with built-in HDMI and LAN ports, and supports H.264, H.265, and MPEG2 encoding for maximum flexibility. — Let me know if you’d like this tailored for a website, a product sheet, or an advertisement!
Coded Orthogonal Frequency Division Multiplexing (COFDM)
Eliminates multipath interference over long distances, ensuring efficient and reliable wireless transmission.
Low Latency
➢ End-to-end latency as low as 33ms
➢ Uniform frame encoding prevents delays from large I-frames
➢ CABAC entropy encoding delivers high video quality at low bitrates
➢ Ultra-fast decoding for seamless display
Long-Range Communication
Advanced modulation, high-performance power amplifiers, forward error correction (FEC), and ultra-sensitive RF receivers extend your transmission range.
Wide Operating Temperature
Built with industrial-grade components rated for -40℃ to +85℃.
Versatile Connectivity

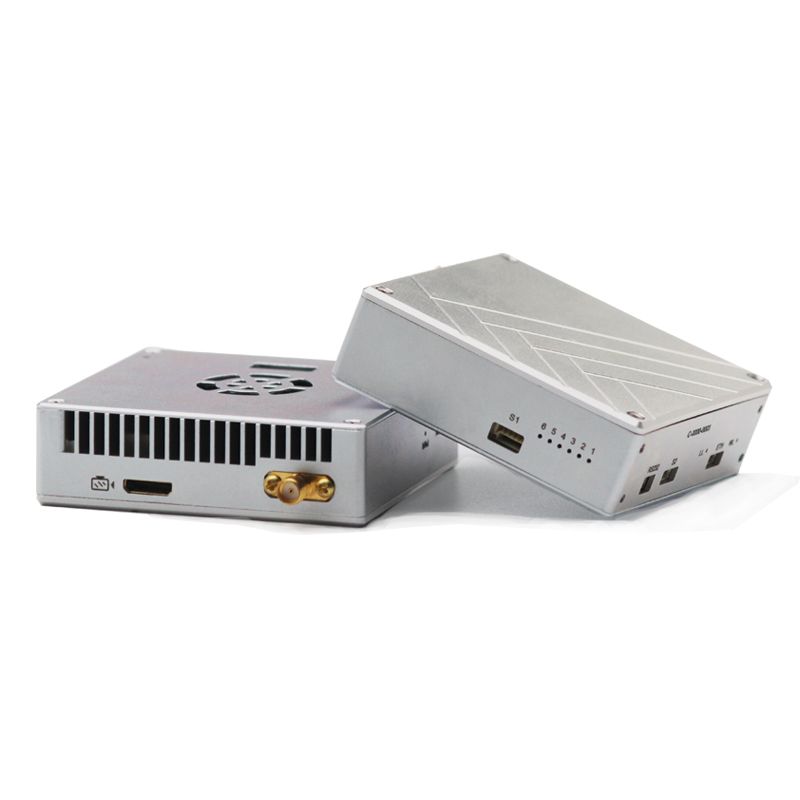

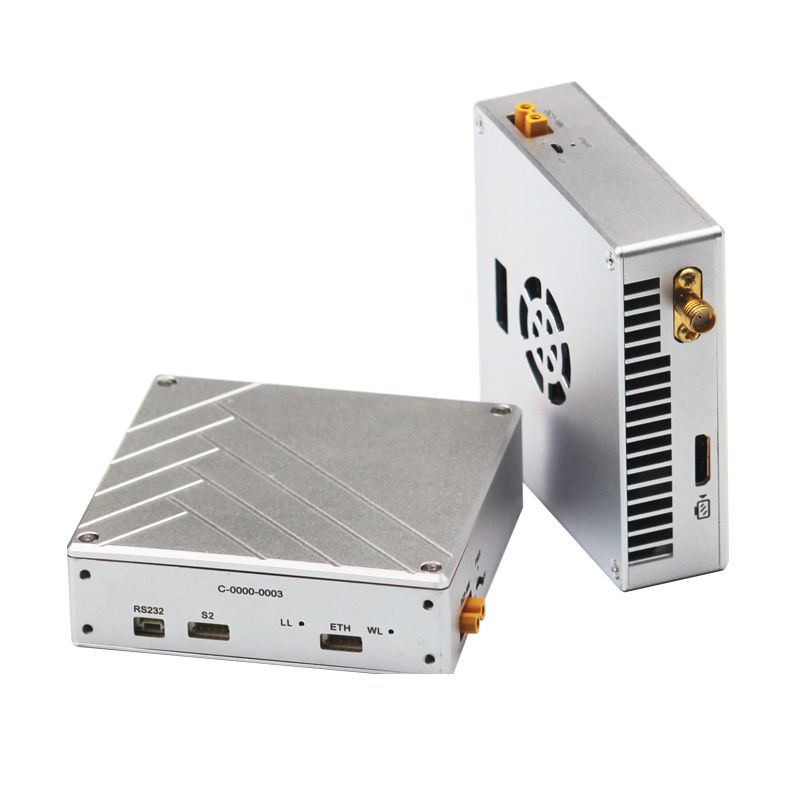

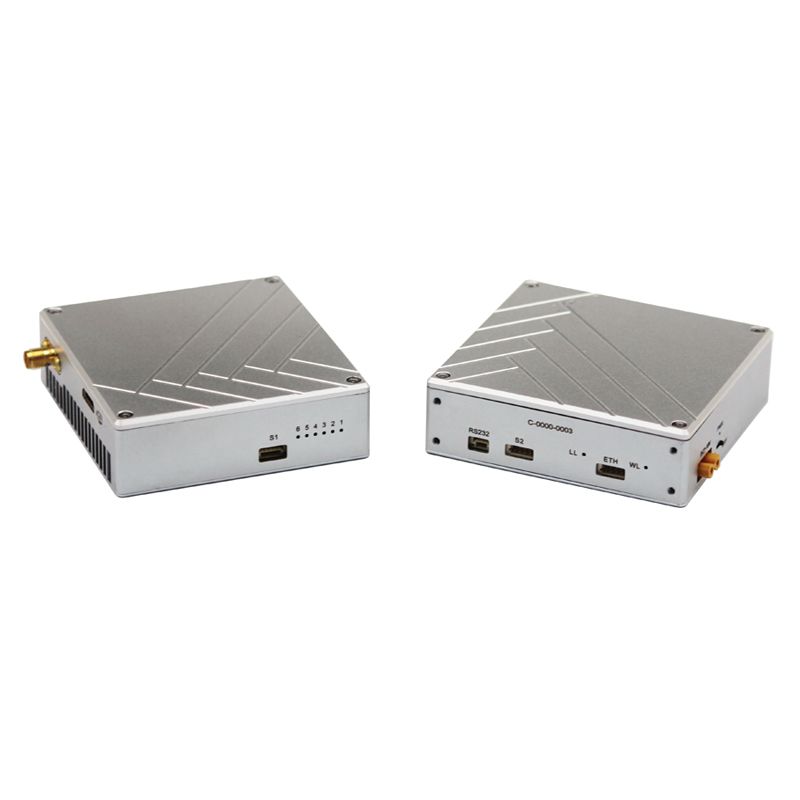

The FIM-2430 Drone HDMI Video Transmitter includes HDMI, LAN, and full-duplex serial ports. Stream live video while controlling your drone via Mission Planner or QGroundControl—all at the same time.
Improved for:
- Clarity and flow
- Active voice and concise phrasing
- Better readability with clear section breaks
- Engaging, benefit-focused language
Engineered for long-range clarity, this system delivers 30km HD video and flight control data in real time—ideal for demanding aerial applications.
Perfect for:
- Aerial photography & cinematography
- Live news and sports broadcasting
- Surveillance and covert operations
- Remote inspection and monitoring
Compatible with medium to large UAVs including:
- Multi-rotor drones
- Fixed-wing UAVs
- VTOL (Vertical Take-Off and Landing) aircraft
Built for missions where distance, reliability, and high-definition visuals matter.
| Frequency | 2.4GHz (2.402-2.482GHz) |
| Error Detection | LDPC FEC/Video H.264/265 Super Error Correction |
| RF Transmitted Power | 33dbm |
| Power Consumption | TX: 19Watts/RX: 8Watts |
| Distance | 25-35km(Notes: True distance is related to the environment) |
| Bandwidth | 4/8MHz |
| Antenna | 1T: Omnidirectional Antennas 1R: Omnidirectional Antennas or Panel Antenna |
| Video Input/output | On board HDMI mini TX/RX or FFC convert to HDMI-A TX/RX |
| Video Color Space | Default 4:2:0 |
| Video Compressed | AVC adds H.265 feature TS stream |
| Encryption | AES128 |
| Transmission Mode | point to point |
| Start-up time | 25s |
| Re-connection time | Less than 1s after signal has been recovered |
| End to End Latency | 50-70ms for1080P60/720P60 Encoding and decoding |
| Transmission Rate | 3/6Mbps |
| Receive Sensitivity | -98dbm@4Mhz |
| -95dbm@8Mhz | |
| Two-way function | Support video and duplex data simultaneously |
| Data | Support TTL/MAVLINK/Telemetry |

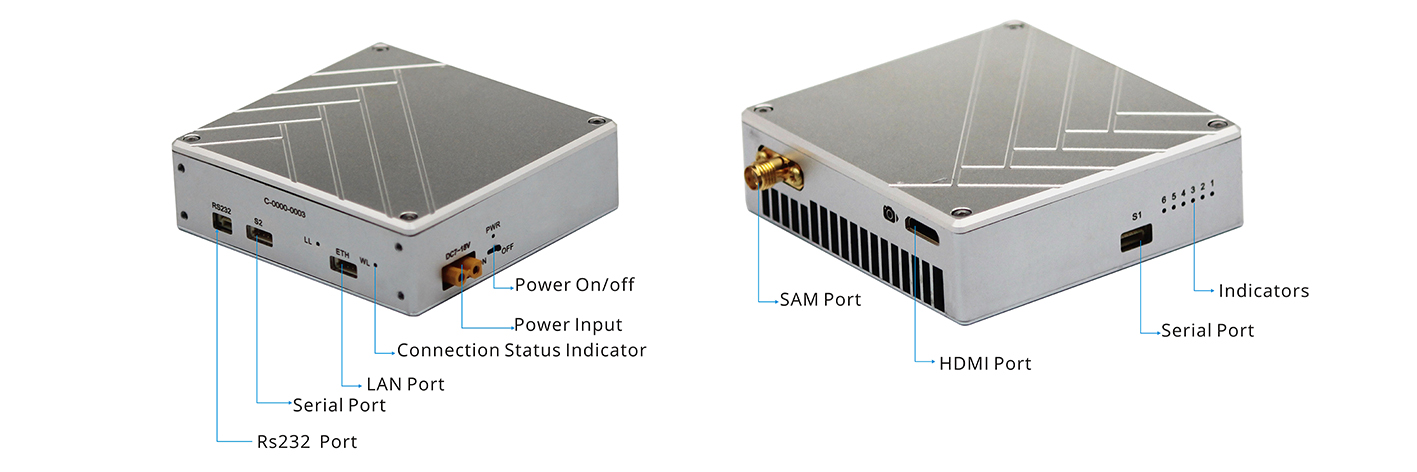

| Interface | 1080P/60 HDMI Mini ×1 |
| Antenna ×1 | |
| S1 TTL bidirectional serial port ×1 | |
| RS 232 bidirectional serial port ×1(RS 232 and S1 TTL serial port cannot be used at same time) | |
| Ethernet to RJ45 on Windows ×1 | |
| Power Input ×1 | |
| Indicator Light | HDMI input/output Status(WL Light) |
| Signal Strength Indicator( 1, 2, 3) | |
| Connection Status Indicator(5, 6) | |
| Video circuit board Work Indicator(4) | |
| Power light | |
| HDMI | HDMI mini/Flexible Flat Cable(FFC) |
| Metal Case Design | CNC technology |
| Double aluminum alloy shell | |
| Conductive anodizing craft | |
| Power supply | DC7- 18V (DC12V advised) |
| Temperature Range | Operating temperature: -40°C ~+85°C |
| Storage temperature: -55°C ~ +85°C | |
| Dimension | Tx/Rx: 74.6×72.9×22.5mm |
| Weight | Tx/Rx 146g |
