China Moneypro Solar Powered Tactical VHF UHF MANET Radio Base Station



Powerful Features for Unmatched Connectivity

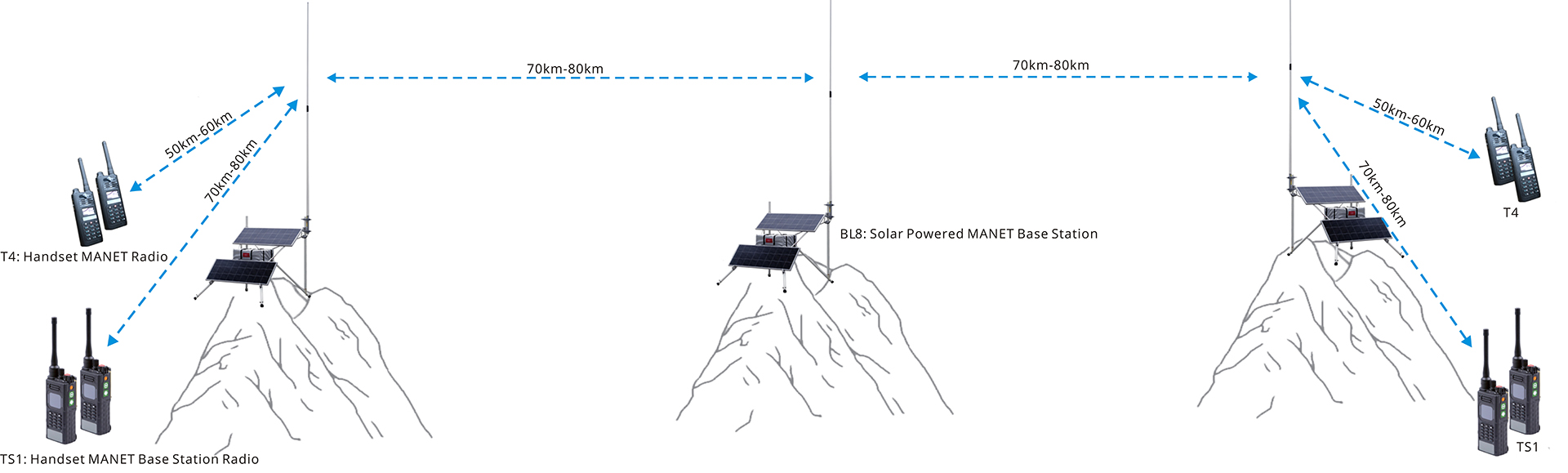

Expansive Coverage — Up to Hundreds of Kilometers

• A single BL8 unit positioned at an elevated point delivers coverage of 70–80 km.
• Two BL8 units placed at strategic heights extend the range to over 200 km.
• Supports multi-hop connectivity to expand your MANET radio network across even wider areas and longer distances.

Self-Forming, Self-Healing Wireless Network

• All connections between base stations, terminals, and command radios are established wirelessly and automatically.
• No reliance on external infrastructure—operates independently of 4G/5G networks, fiber, cables, or power lines.

Seamless Cross-Platform Connectivity

• The BL8 solar-powered radio base station integrates effortlessly with all IWAVE MANET devices: terminals, base stations, repeaters, and command units.
• Enables smooth, interoperable communication across land, vehicle, aerial, and maritime assets—building a resilient, large-scale critical communications system.

Unlimited Terminal Capacity

• Connect as many IWAVE MANET radio terminals as needed—no restrictions on the number of users or devices.

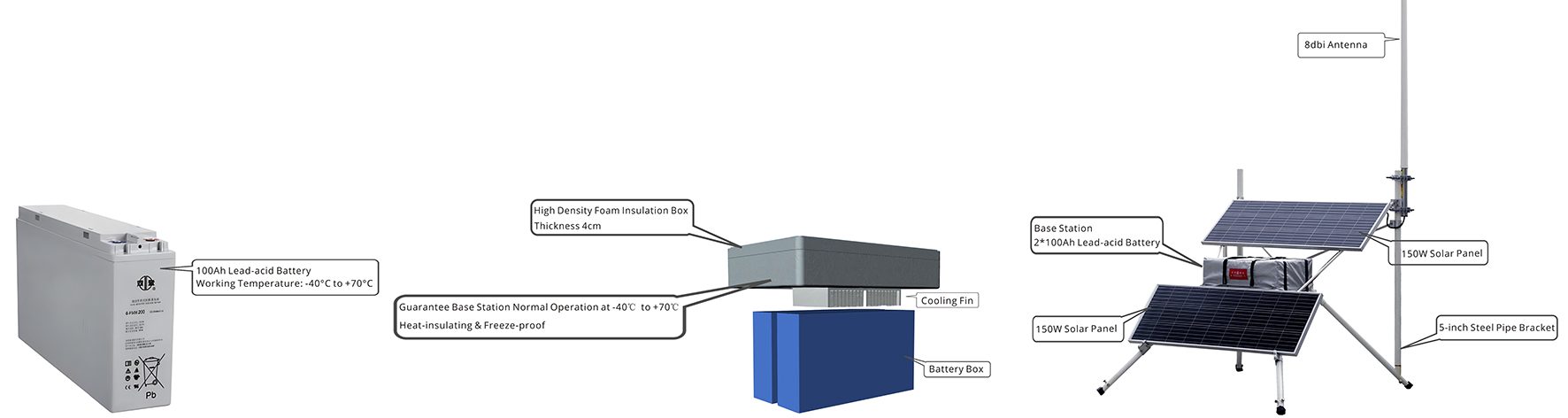

Thrive in Extreme Conditions: -40°C to +70°C
The BL8 base station is built for the most demanding environments. Encased in a 4cm thick high-density foam insulation box, it provides superior thermal protection—shielding against intense heat and preventing freeze-ups. This ensures reliable, uninterrupted operation even in temperatures ranging from -40°C to +70°C.

Solar Powered for Uninterrupted Operation
Equipped with dual 150W solar panels and two 100Ah lead-acid batteries, the BL8 system delivers continuous power through intelligent energy management. Its solar + dual-battery design, combined with an ultra-low-power transceiver, keeps emergency communications active—even in harsh winter conditions when solar generation is limited.

Flexible Frequency Options
Choose the band that fits your needs:

• VHF: 136–174 MHz
• UHF1: 350–390 MHz
• UHF2: 400–470 MHz

Precise Positioning with GPS & Beidou
The BL8 supports both GPS and Beidou navigation systems, delivering accurate horizontal positioning to keep your team on track.

Rapid Deployment When It Matters Most
In a disaster, when power grids and communication networks fail, every second counts. The BL8 can be placed anywhere to instantly establish a robust radio network—replacing traditional DMR/LMR systems on the spot.

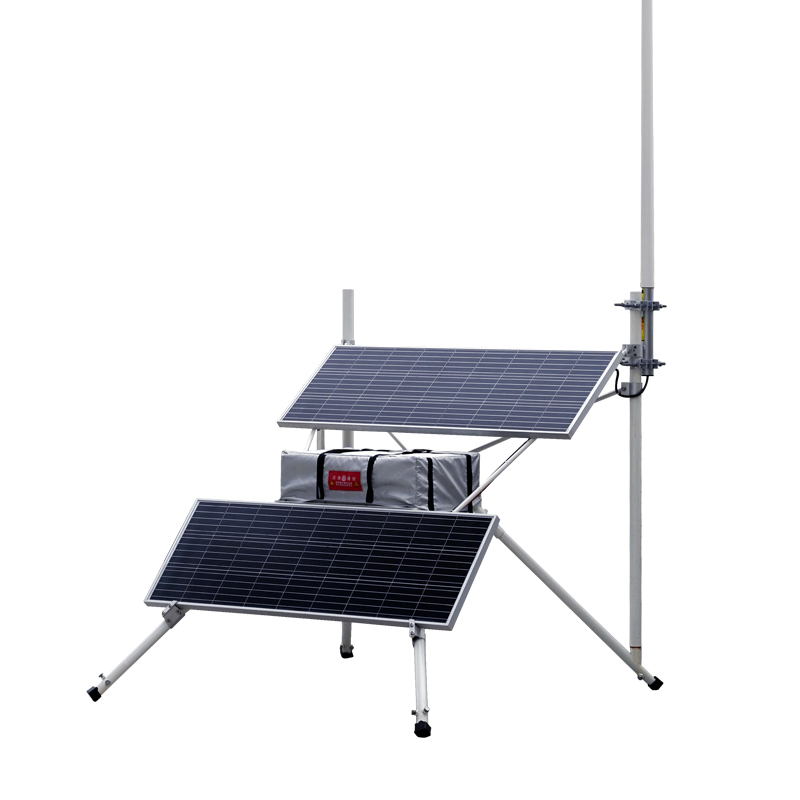

Complete Kit for Fast Setup
We provide everything you need in one ready-to-deploy package: base station, antenna, solar panels, batteries, mounting bracket, and insulated protective case. First responders can start installation immediately—no extra parts, no delays.

Ready to equip your team with resilient, go-anywhere communications?
Let’s discuss how the BL8 can support your mission.

Application

Take your network anywhere you need it—no matter how remote or challenging the environment. Stay connected where others can’t: Deploy reliable communications in rural areas, mountains, forests, over water, inside buildings, through tunnels, or during disasters and outages. Built for speed and simplicity: Emergency responders can set up and launch the network in minutes—designed for rapid, flexible deployment when every second counts.
