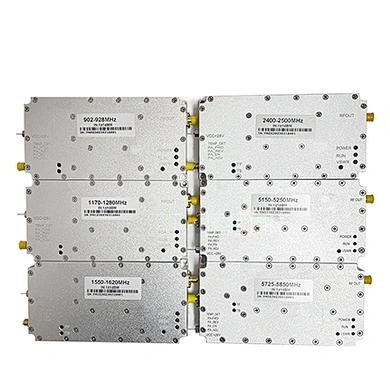

20W-30W Power Amplifier: Performance and Precision for Modern Communication
nn
In the demanding landscape of modern radio frequency (RF) communication, the ability to amplify signals with precision and reliability is paramount. The 20W-30W power amplifier stands as a critical component for systems requiring robust signal boosting across a vast spectrum of frequencies. Whether deployed in cellular infrastructure, long-range data links, or specialized military communications, this amplifier module is engineered to deliver consistent output while maintaining strict signal integrity. Its design balances high gain, minimal distortion, and compact form, making it an ideal choice for engineers seeking a high-performance solution without sacrificing space or thermal efficiency.
nn
This power amplifier is not a single-frequency device but a versatile platform capable of operating across a wide range of bands. From the lower UHF ranges up to the edge of C-band, its adaptability allows for integration into multi-band systems, reducing the need for multiple, separate amplifier units. The key to its performance lies in the careful engineering of its gain stages, impedance matching, and thermal management. As we explore its specifications, you will see how every parameter is tuned to ensure the output signal reliably meets its power and purity targets, even under challenging conditions.
nn
Key Specifications of the 20W-30W Power Amplifier
nn
To fully appreciate the capabilities of this amplifier, a detailed look at its technical specifications is essential. The device is available with varying power output levels, gain, and physical dimensions, all designed to support the operating frequency selected. The following table consolidates the core parameters, providing a clear and structured overview of the unit’s performance characteristics.
nn
| Parameter | Specification Range / Value | Notes |
|---|---|---|
| Item Name | 20W-30W Power Amplifier | Standard product designation |
| Working Frequency (Available Bands) | 20-100 / 100-300 / 300-500 / 500-760 / 760-851 / 851-894 / 900-928 / 894-960 / 925-960 / 960-1300 / 1300-1570 / 1570-1620 / 1620-1805 / 1805-1880 / 1880-2110 / 2110-2170 / 2110-2400 / 2400-2500 / 2500-2700 / 2700-3400 / 3400-3800 / 3800-4400 / 4400-5000 / 5000-6000 / 5100-5900 MHz | Customizable per order |
| Power Output | 20W / 25W / 30W | Selectable model |
| Gain | 43±2dB / 44±2dB / 45±2dB | Varies with power and frequency |
| In-Band Flatness | ≤2dB / ≤±1dB | Frequency-dependent |
| Working Current | ≤3A (all models) | For 20W model typically lower |
| Input / Output VSWR | ≤1.5 | Wideband performance |
| Operating Voltage | DC +28V | Regulated supply recommended |
| Amplifier Dimensions | 135 x 67 x 20mm / 119 x 50 x 16mm / 119 x 50 x 21mm | Dependent on frequency band |
| Out-of-Band Spurs | 9kHz – 1GHz: ≤-36dBm/30kHz 1GHz – 12.75GHz: ≤-30dBm/30kHz |
Ensures spectral purity |
| Maximum Lossless Input | +10dBm | Exceeding may cause distortion |
| Power Supply Interface | Feed-through capacitor | Provides RF isolation |
| RF Port | SMA-KFD | Female connector |
| Monitoring Interface | Feed-through capacitor | For external monitoring |
| Operating Temperature | -10 to +55 °C | Ambient, no condensation |
| Relative Humidity | 5% – 95%, No condensation | Non-condensing environment |
| Storage Temperature | -25 to +65 °C | Extended survival range |
nn
Understanding Frequency Band Selection and Power Output
nn
The 20W-30W power amplifier’s versatility is most evident in its wide array of selectable frequency bands. From the long-range capabilities of the lower VHF/UHF spectrum (20-100 MHz) to the high-speed data bands above 5 GHz, there is a configuration for nearly every application. Engineers must select the correct band variant to match their system’s antenna, filtering, and propagation requirements. The power output, whether 20W, 25W, or 30W, directly influences the link budget and effective range. The table above shows that the gain is inversely related to power in some cases, a design choice to balance efficiency and linearity.
nn
Gain, Flatness, and Signal Fidelity
nn
Signal fidelity is a non-negotiable requirement in modern communications. The amplifier’s gain, specified at 43±2dB, 44±2dB, or 45±2dB, ensures that weak input signals are boosted to the desired output level. The in-band flatness, rated at ≤2dB or ≤±1dB, confirms that the amplification is consistent across the entire operational bandwidth. This prevents frequency-dependent signal distortion, which is especially critical for broadband data signals that rely on uniform power distribution across subcarriers. The combination of high gain and excellent flatness allows the 20W-30W power amplifier to maintain the integrity of complex modulation schemes, such as QAM and OFDM.
nn
Robust Construction and Environmental Resilience
nn
Beyond raw electrical performance, this amplifier is built to withstand real-world conditions. The use of feed-through capacitors for both the power supply and monitoring interfaces provides excellent RF isolation, preventing noise from the power lines from coupling into the signal path. The SMA-KFD RF port offers a robust, repeatable connection suitable for laboratory testing and field deployment alike. The operating temperature range of -10 to +55 °C and storage range of -25 to +65 °C, coupled with the ability to handle up to 95% relative humidity without condensation, make it a reliable choice for outdoor enclosures, base stations, and mobile platforms.
nn
Integration and Ease of Use
nn
Designed for straightforward integration, the amplifier’s dimensions—whether the 135x67x20mm, 119x50x16mm, or 119x50x21mm variant—allow for installation into standard equipment racks or custom enclosures. The maximum lossless input of +10dBm provides a clear safe operating limit, ensuring that the amplifier operates in its linear region. The low VSWR of ≤1.5 indicates good impedance matching, which minimizes signal reflections and power loss at the input and output ports. This simplifies system design, as engineers can rely on the amplifier to work seamlessly with most antennas and transceivers without needing extensive external matching networks.
nn
Monitoring and Safety Features
nn
The inclusion of a monitoring interface via a feed-through capacitor allows users to track amplifier status or integrate fault detection circuits. This is a valuable feature for systems that require proactive maintenance or automatic shutdown in case of overheating or power imbalance. The amplifier’s working current is capped at ≤3A, providing a predictable power budget for system designers. Combined with its broad frequency flexibility and high power output, the 20W-30W power amplifier emerges as a sophisticated yet user-friendly building block for any RF transmission system.
nn
Conclusion: The 20W-30W Power Amplifier as a Core Solution
nn
In summary, the 20W-30W power amplifier is more than just a component; it is a complete, high-performance solution for amplifying RF signals from 20 MHz to 6 GHz. Its key specifications—including adjustable power output, precise gain, and excellent in-band flatness—are meticulously detailed in the table above, ensuring that engineers have all the data needed for system design. The robust construction, environmental resilience, and thoughtful interfaces make it suitable for both demanding commercial and critical industrial applications. Whether you are upgrading an existing base station or designing a new high-data-rate link, this power amplifier delivers the performance and reliability that modern communication demands.
