Unleash the Power of GaN: The Ultimate CW High Power Amplifier for Multi-Band RF Applications
nnIn the demanding world of radio frequency (RF) engineering, the need for a reliable, high-performance amplifier is paramount. Enter the GaN CW High Power Amplifier, a solid-state powerhouse (SSPA) engineered with cutting-edge GaN HEMT technology. This versatile amplifier redefines efficiency and signal integrity, covering three critical frequency bands from 0.02 to 6 GHz. Whether you are working in radar systems, advanced communication networks, or rigorous test and measurement environments, this amplifier delivers the raw power and stability required for mission-critical operations. With a staggering output of up to 55 dBm (300W) and a robust continuous wave (CW) mode, it meets the most stringent TTL high-level startup requirements, ensuring seamless integration into your existing infrastructure.nn
GaN CW High Power Amplifier: Exceptional Performance and Efficiency
nnWhat sets this amplifier apart is its remarkable blend of power and precision. The GaN HEMT devices enable an efficiency exceeding 25%, a figure that minimizes heat generation and reduces the burden on your cooling systems. Signal purity is equally impressive, with a spurious level as low as 55 dBc, ensuring that your transmissions remain clean and free from interference. The amplifier is designed for optimal signal matching, featuring an input VSWR of just 1.5:1 and an input power range adapted to 0±2 dBm. This meticulous engineering guarantees stable and reliable signal transmission across all supported bands, making it the definitive GaN CW High Power Amplifier for professionals who refuse to compromise on quality.nn
Specifications at a Glance: The GaN CW High Power Amplifier
nnTo provide a comprehensive overview of its capabilities, the following table presents the complete technical specifications of this high-performance amplifier. All parameters are critical for system design and integration.nn
| Parameter | Value | Unit | Comments |
|---|---|---|---|
| Frequency Range | 0.02-0.5G, 0.5-3G, 3-6G | GHz | Three selectable bands |
| Output Power | 55 | dBm | 300W CW power |
| Working Mode | CW | – | TTL High-level startup |
| Spurious Level | 55 | dBc | Low signal interference |
| Input Power | 0 ± 2 | dBm | Adapted range |
| Efficiency | >25 | % | High GaN efficiency |
| Input VSWR | 1.5:1 | – | Excellent matching |
| Input Connector | SMA-KFD50 | – | Standard RF interface |
| Output Connector | N-KFD50 | – | High-power connector |
| Temperature Range | -20 ~ +55 | °C | Wide operating range |
| Supply Voltage | +28 | V | Single power rail |
nn
Durable Design for Demanding Environments

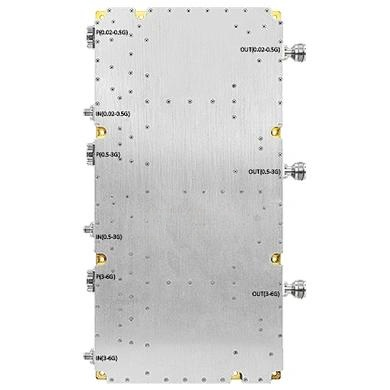

nnBuilt to withstand the rigors of professional use, this GaN CW High Power Amplifier operates reliably across a wide temperature range of -20 to +55°C. It is powered by a standard +28V supply and features professional-grade interfaces: an SMA-KFD50 connector for input and an N-KFD50 connector for output, ensuring robust signal integrity. To guarantee long-term stability, the amplifier must be installed on a cold plate for contact heat dissipation—a standard practice for high-power RF devices. This thermal management approach allows the amplifier to maintain peak performance even under continuous, high-stress operation.nn
Versatile Applications: From Radar to Communications
nnThe multifrequency capability of this GaN CW High Power Amplifier makes it an indispensable tool for a wide array of applications. In radar systems, its high power and low spurious output enhance detection range and clarity. In radio frequency communication, it provides the clean signal boost needed for reliable data transmission. For test and measurement engineers, its consistent performance across bands simplifies complex test setups. By offering an efficient solution for high-power RF needs, this amplifier stands as a cornerstone for modern electronic systems.nn
Conclusion: Maximize Your RF Potential with GaN Power
nnIn summary, the GaN CW High Power Amplifier delivers unmatched performance, efficiency, and reliability. Its ability to operate across 0.02-6 GHz with 300W of clean, CW power makes it the ideal choice for professionals in RF communication, radar, and measurement. The combination of a robust spurious level, high efficiency, and professional connectors ensures that this GaN CW High Power Amplifier will meet and exceed your most demanding requirements. For those seeking to push the boundaries of RF technology, this amplifier provides the power and precision you need to succeed.
