Unleashing the Power of the K-Band SSPA: A Game-Changer for Modern Communications
nnThe K-band SSPA—a solid-state power amplifier operating in the 22-26GHz frequency range—represents a critical component at the heart of today’s most advanced technologies. From satellite communications and radar systems to 5G networks and electronic warfare, this powerful device enables the high-speed, high-precision performance that modern applications demand. In satellite communications, the K-band is the backbone of high-throughput satellite (HTS) systems, delivering blazing-fast internet and broadcasting services across the globe. Radar systems leverage the K-band’s high frequency for unparalleled accuracy in weather monitoring and aviation tracking, while 5G millimeter-wave networks and military electronic warfare systems rely on its robustness for reliable, secure operations. But what truly sets a high-quality K-band SSPA apart is its ability to amplify signals with exceptional power, clarity, and control. At MOPTECH, we have developed an ultra-high-power K-band SSPA specifically engineered for radar amplifiers in EW systems, designed to excel in the 22-26GHz frequency band. This 400W high-power SSPA pushes the boundaries of performance, covering longer distances and penetrating obstacles with ease, while offering features that optimize system efficiency and reliability.nn
The MOPTECH K-Band SSPA: Key Performance Features

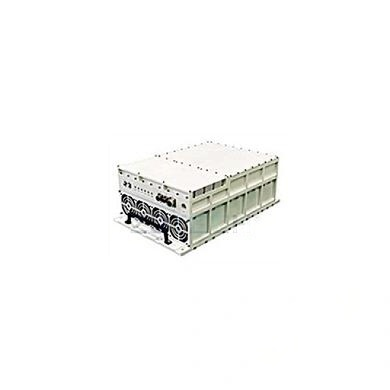

nnOur flagship K-band SSPA delivers a remarkable 400W of rated power, enabling signals to travel farther and penetrate even the toughest obstacles. With a high gain of 68dB and a fine adjustment step of just 0.1dB, users can precisely calibrate signal strength to suit specific operational needs—whether in a satellite uplink, a weather radar, or a military EW system. This level of control optimizes overall system performance, reducing signal distortion and enhancing clarity. Low group delay minimizes the time difference as signals pass through the amplifier, while low noise characteristics ensure that the output remains clean and accurate. A compact, forced-air cooling design allows the amplifier to operate effectively in diverse environments, dissipating heat efficiently during high-power operations. This high-performance K-band power amplifier is engineered to deliver a new level of reliability and precision for demanding users.nn
Comprehensive Specifications for the K-Band SSPA
nnTo provide a complete technical picture, the following table outlines the key specifications of our MOPTECH K-band SSPA:nn
| Parameter | Value |
|---|---|
| Frequency Range | 22-26 GHz |
| Rated Power | +56 dBm / 400 W |
| Gain Adjustment | 0-25 dB (step 0.1 dB) |
| Gain Flatness | 0.5 dB p-p |
| Gain | ≥68 dB |
| Gain Stability | ±0.5 dB/24 h |
| IM3 | -25 dBc |
| Spurious | ≤-60 dBc |
| Noise Power Density | ≤-135 dBW/4 kHz |
| AM/PM | ≤3°/dB |
| Group Delay | ≤0.5 nS p-p |
| Power Supply | 220 VAC |
| Power Consumption | 2800 W |
| Dimensions | 640 x 425 x 225 mm |
| Weight | 55 kg |
| RF Connectors | Input: 2.92mm-F / Output: WR42/BJ220 |
| Communication Interface | LAN / RS485 / RS422 / RS232 (optional) |
| Cooling | Forced Air Cooling |
nn
Why the K-Band SSPA Matters for Your Applications
nnThe K-band SSPA is more than just a component—it is an enabler of next-generation technology. Its high power and precise gain control make it indispensable for satellite communications, where signal integrity and range are paramount. In radar systems, the K-band’s frequency allows for detailed, high-resolution detection, critical for weather forecasting and aviation safety. For 5G millimeter-wave communications, the K-band SSPA supports the dense, high-speed networks that underpin smart cities and IoT devices. And in military electronic warfare, its robustness and low noise profile ensure reliable operation in contested environments. By choosing a K-band SSPA that offers ultra-high power, fine gain adjustment, and low distortion, you unlock new levels of performance, reliability, and adaptability.nn
Conclusion and Next Steps
nnThe K-band SSPA is a vital tool for pushing the boundaries of signal amplification in demanding applications. MOPTECH’s ultra-high-power design, with 400W output and 68dB gain, sets a new standard for clarity, range, and control. Whether you are upgrading a satellite link, enhancing a radar system, or building a cutting-edge EW platform, this K-band SSPA delivers the performance you need. If you are ready to experience the difference a high-quality K-band SSPA can make, or if you have questions about how our amplifier can integrate into your specific system, do not hesitate to reach out. Contact us today for expert assistance and tailored solutions. We are here to help you solve your toughest challenges with confidence.
