Unleashing High-Performance Connectivity: The 80W Power Amplifier MOP-PA-5000/6000G-80W
nnIn the rapidly evolving landscape of wireless communication, robust signal amplification is not just a luxury—it is a necessity. Whether you are deploying a long-range point-to-point link, enhancing a Wi-Fi network, or supporting mission-critical data transmission, the reliability of your equipment can make or break your system. Enter the 80W Power amplifier Model:MOP-PA-5000/6000G-80W, a powerhouse engineered to deliver exceptional performance across the 5000-6000MHz frequency band. This article dives deep into the technical prowess, design philosophy, and practical applications of this amplifier, offering a comprehensive exploration that will help you understand why this device stands out in a crowded market.nn
A Foundation of Precision Engineering
nnAt the heart of this amplifier lies a carefully tuned design that prioritizes both power and stability. Operating within the 5000-6000MHz range, it is ideally suited for modern wireless standards, including Wi-Fi 6E and other high-frequency protocols. With a saturated power output of 49±1 dBm, this device is capable of driving signals over impressive distances while maintaining signal integrity. But raw power alone is not enough; the amplifier also boasts a gain of 49±2 dBm, ensuring that even weak input signals are amplified to usable levels without distortion. This balance of power and gain is what makes the MOP-PA-5000/6000G-80W a trusted component for engineers and system integrators.nn
Critical Specifications That Drive Performance
nnTo fully appreciate the amplifier’s capabilities, it is essential to examine its technical parameters in detail. The following table provides a structured overview of the key specifications, presented in an easy-to-reference format. This data not only highlights the device’s strengths but also serves as a quick reference for design and deployment decisions.nn
| Parameter | Specification |
|---|---|
| Working Frequency | 5000-6000 MHz |
| Saturated Power Output | 49 ± 1 dBm |
| Gain | 49 ± 2 dBm |
| In-Band Flatness | Within specification |
| Working Current | ≤ 9 A |
| Input and Output VSWR | ≤ 1.5 |
| Out-of-Band Spurs (9 kHz – 1 GHz) | ≤ -36 dBm / 30 kHz |
| Out-of-Band Spurs (1 – 12.75 GHz) | ≤ -30 dBm / 30 kHz |
| Maximum Lossless Input | +10 dBm |
| Operating Voltage | DC +32 V |
| Power Supply Interface | 2W2 |
| RF Port – Input | SMA-KFD |
| RF Port – Output | N-F |
| Monitoring Interface | DB9: Pin 1 TEMP, Pin 3 VSWR |
| Amplifier Size | 186 × 94 × 26 mm |
| Operating Temperature | -10 to +55°C |
| Relative Humidity | 5% to 95%, Non-condensing |
| Storage Temperature | -25 to +65°C |
nn
Interpreting the Data: What These Numbers Mean for Your System
nnUnderstanding these specifications is crucial for integrating the amplifier into your network. A VSWR of ≤1.5, for example, indicates excellent impedance matching, which reduces signal reflections and minimizes power loss. This is particularly important in high-frequency applications where even small mismatches can degrade performance. The out-of-band spur limits—≤-36 dBm in the lower spectrum and ≤-30 dBm in the higher—demonstrate the amplifier’s ability to maintain spectral purity, preventing interference with adjacent channels. For engineers working in crowded frequency environments, this is a significant advantage.nnThe working current of ≤9A at DC +32V is another indicator of efficiency. While delivering up to 80W of power, the amplifier keeps current draw reasonable, making it compatible with a range of power supplies. The monitoring interface, which provides access to temperature (Pin 1) and VSWR (Pin 3) via a DB9 connector, adds an extra layer of system intelligence. This allows for real-time diagnostics, enabling proactive maintenance and helping to prevent failures in critical applications.nn
Design and Adaptability for Real-World Deployment

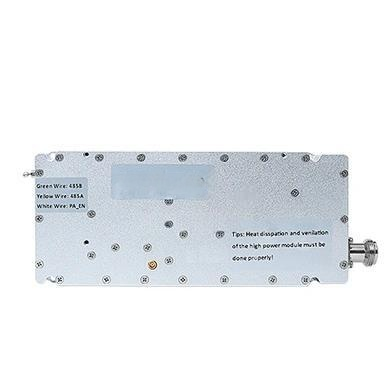

nnBeyond the raw numbers, the physical design of the MOP-PA-5000/6000G-80W is tailored for practicality. Measuring just 186×94×26 mm, it is compact enough for integration into existing enclosures or rack-mounted systems without demanding excessive space. The RF interfaces—SMA-KFD for input and N-F for output—are industry-standard choices that balance performance with ease of connection. These connectors are known for their reliability in high-frequency applications, ensuring a secure and low-loss link.nnEnvironmental robustness is another hallmark of this amplifier. With an operating temperature range of -10 to +55°C and the ability to withstand humidity levels from 5% to 95% without condensation, it is built for both indoor and outdoor deployments. The storage temperature extends even further, from -25 to +65°C, making it suitable for shipping and storage in diverse climates. Whether you are setting up a network in a controlled data center or a semi-exposed base station, this amplifier is designed to perform consistently.nn
Applications Across the Wireless Spectrum
nnThe versatility of the 80W Power Amplifier makes it a valuable asset in multiple scenarios. It is particularly well-suited for boosting signals in Wi-Fi 6E access points, where the 6 GHz band offers new opportunities for high-speed, low-latency connections. In point-to-point links, the amplifier’s high power output extends range, reducing the need for repeaters and lowering overall infrastructure costs. For broadcast and emergency communication systems, the device’s stability ensures that critical data reaches its destination without interruption.nnMoreover, the amplifier’s compatibility with external monitoring systems allows for integration into smart networks that adapt to changing conditions. For instance, by monitoring VSWR readings, a system can detect antenna issues or cable damage early, triggering alerts before a complete failure occurs. This level of intelligence is increasingly important in modern, automated environments.nn
Conclusion: Elevating Your Network with the 80W Power Amplifier
nnThe 80W Power amplifier Model:MOP-PA-5000/6000G-80W is more than just a component—it is a solution for those who demand excellence in their wireless infrastructure. Its combination of high power output, precise gain, low distortion, and thoughtful design makes it an indispensable tool for extending range and improving reliability. By carefully considering each specification, from the frequency range to the monitoring capabilities, we can see that this amplifier is engineered for real-world success.nnWhether you are upgrading an existing system or designing a new one from the ground up, choosing the right amplifier is a decision that echoes through your entire network. With its proven performance and robust construction, the 80W Power Amplifier offers a path to stronger, more resilient connectivity. As you evaluate your options, let the detailed parameters and thoughtful features of this device guide you toward a solution that truly amplifies your network’s potential.
