Introduction: Mastering Low-Altitude Airspace Security
n

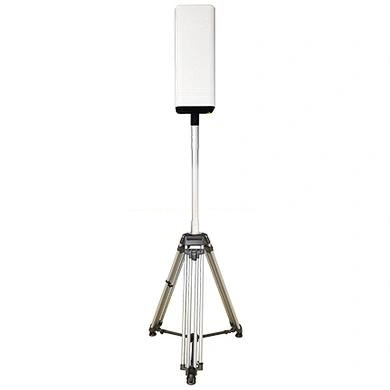

In an era where unmanned aerial vehicles (UAVs) are ubiquitous, securing low-altitude airspace has become a critical challenge. Whether for critical infrastructure, public events, or urban security, the need for reliable detection and positioning is paramount. The MOP-FTD1 Detection and Positioning Equipment stands as a high-performance solution engineered specifically for this complex task. This article explores how this device leverages advanced technology to provide comprehensive situational awareness, safeguarding the skies from potential threats. By integrating industry-leading Time Difference of Arrival (TDOA) technology, the MOP-FTD1 not only identifies but precisely locates aerial targets, forming the backbone of a robust security network.
n
The system operates through a networked array of three or more devices, enabling real-time, precise positioning of both mainstream and custom-built aerial targets. Covering a frequency range from 100MHz to 6GHz, it detects drones at distances of 2 to 6 kilometers and altitudes up to 1000 meters. With a capacity to recognize over 800 aerial types, track a minimum of 10 targets simultaneously, and manage 5 or more TDOA trajectories (with single decoding or over 10 in multi-network setups), the MOP-FTD1 delivers exceptional performance. Its positioning error is remarkably low—≤5 meters for single decoding and ≤10 meters for TDOA networking. This equipment also integrates advanced features such as pilot positioning (compatible with DJI OcuSync), serial number (SN) recognition, blacklist/whitelist management, intrusion alerts, and trajectory playback. All these capabilities are supported by multiple electronic maps and seamless back-end platform linkage, making it a core asset for low-altitude airspace security.
n
Designed for all-weather operation, the MOP-FTD1 employs passive detection technology, boasts an IP66 protection rating, and features a lightweight build. It operates continuously in extreme temperatures ranging from -40°C to 65°C. With stable TDOA positioning and accurate pilot identification, it provides unwavering security for complex urban environments and key areas, ensuring that the sky remains safe around the clock.
nn
MOP-FTD1 Detection and Positioning Equipment: Core Performance Metrics
n
The following table presents the essential performance specifications of the MOP-FTD1, highlighting its capabilities in detection, tracking, and positioning. These metrics are critical for understanding how the system excels in low-altitude airspace security.
nn
| No. | Specification | Parameter | Remarks |
|---|---|---|---|
| 4 | Number of Recognizable Models | ≥900 | N/A |
| 5 | Detection Frequency Range | 100MHz ~ 6GHz | N/A |
| 6 | Detection Range | 2 ~ 6 km | Dependent on environmental conditions and drone model |
| 7 | Single-Station Positioning Range | 1 ~ 3 km | Dependent on environmental conditions and drone model |
| 8 | Detection Altitude | 0 ~ 1000m | N/A |
| 9 | Simultaneously Detectable Targets | ≥10 | N/A |
| 10 | Simultaneous Tracked Trajectories | ≥5 (Single decoding) ≥10 (Multiple TDOA networking) |
N/A |
| 11 | Positioning Error | ≤5m (Single decoding) ≤10m (Multiple TDOA networking) |
N/A |
nn
Mechanical and Electrical Specifications
n
The MOP-FTD1’s design emphasizes ruggedness and efficiency, as detailed in the mechanical and electrical parameters below. These features ensure reliable operation in diverse environments.
nn
Mechanical Parameters
n
| No. | Specification | Parameter | Remarks |
|---|---|---|---|
| 1 | Weight | ≤12 kg | Excluding power adapter |
| 2 | Dimension | (265mm265mm660mm)±2mm | N/A |
nn
Electrical Characteristics
n
| No. | Specification | Parameter | Remarks |
|---|---|---|---|
| 1 | Total Power Consumption | ≤100W | N/A |
| 2 | Power Supply | 220V AC / 12V DC | N/A |
nn
Environmental Adaptability
n
| No. | Specification | Parameter | Remarks |
|---|---|---|---|
| 1 | Operating Temperature | -40~65℃ | N/A |
| 2 | Protection Level | IP66 | N/A |
nn
Advanced Features for Comprehensive Security
n
Beyond its core metrics, the MOP-FTD1 Detection and Positioning Equipment is packed with intelligent features that elevate its role in airspace security. The pilot positioning capability, which works seamlessly with DJI OcuSync and other protocols, allows operators to identify the drone’s pilot location—a critical advantage in mitigating threats. Combined with serial number recognition, the system can automatically categorize drones into blacklists or whitelists, triggering intrusion alerts for unauthorized aircraft. Trajectory playback adds another layer of forensic utility, enabling post-event analysis of flight paths. The integration with multiple electronic maps and back-end platforms ensures that security teams have a unified view of the airspace, facilitating rapid decision-making.
n
This synergy of detection, tracking, and identification makes the MOP-FTD1 an indispensable tool for protecting sensitive sites like airports, government buildings, and large public gatherings. Its passive detection methodology means it operates without emitting signals, remaining stealthy and avoiding detection by potential adversaries. The lightweight, weatherproof design (IP66) further ensures that it can be deployed in outdoor environments year-round, from scorching deserts to freezing tundra.
nn
Conclusion: A Pillar of Low-Altitude Security
n
As the demand for robust low-altitude airspace security grows, the MOP-FTD1 Detection and Positioning Equipment emerges as a proven, comprehensive solution. Its combination of advanced TDOA networking, broad detection range, high target capacity, and integrated pilot identification addresses the full spectrum of drone threats. The system’s performance—underscored by specifications like a 2–6 km detection range, ≤5m positioning error, and simultaneous tracking of up to 10 targets—ensures that no aerial intrusion goes unnoticed. With its all-weather endurance and minimal power consumption, the MOP-FTD1 is built for continuous, reliable service in the most demanding environments. For security professionals seeking to protect complex urban areas and critical assets, investing in the MOP-FTD1 Detection and Positioning Equipment is a decisive step toward achieving airspace dominance and peace of mind.
