Unlocking Reliable Connectivity with the Indoor Directional Panel Antenna
nnIn today’s connected world, ensuring strong, stable signal coverage indoors is not just a convenience—it is a necessity. Whether you are trying to boost mobile network performance in a busy office, enhance smart building systems, or improve digital TV reception in a residential space, the right antenna makes all the difference. The indoor directional panel antenna stands out as a premium solution designed to deliver precise, focused signal coverage with exceptional performance. By engineering focused signal directionality into a compact form factor, this antenna addresses the challenges of interference, signal loss, and weak connectivity that often plague indoor environments.nn
Engineered for Precision and Performance
nnWhat sets the directional 7dbi indoor antenna apart is its ability to concentrate energy in a specific direction, minimizing wasted coverage and maximizing signal strength where it is needed most. This is critical for applications like cellular networks, IoT systems, and television reception, where every decibel counts. With a design that prioritizes efficiency, the antenna operates across multiple frequency bands, ensuring broad compatibility with modern wireless standards. Its compact, sleek form factor allows for seamless integration into offices, homes, and commercial facilities without sacrificing aesthetics.nn
Key Electrical Specifications of the Directional 7dBi Indoor Antenna
nnTo understand the technical prowess of this antenna, consider the following electrical characteristics, which highlight its ability to maintain consistent performance across a wide range of frequencies. The data demonstrates how the antenna adapts to different bands while retaining efficiency and low interference.nn| Parameter | Band 1 | Band 2 | Band 3 | Band 4 | Band 5 |n|———–|——–|——–|——–|——–|——–|n| Frequency Range (MHz) | 698-806 | 806-960 | 1710-2170 | 2200-2700 | 3400-4000 |n| Gain (dBi) | 5 ± 0.5 | 6 ± 0.5 | 7 ± 0.5 | 7.5 ± 0.5 | 8.5 ± 0.5 |n| Polarization | Vertical | Vertical | Vertical | Vertical | Vertical |n| Beam Width Horizontal (°) | 80 | 80 | 65 | 60 | 55 |n| Beam Width Vertical (°) | 73 | 70 | 60 | 60 | 30 |n| Front-To-Back Ratio (dB) | >5 | >8 | >10 | >15 | >10 |n| VSWR | ≤1.8 | ≤1.8 | ≤1.8 | ≤1.8 | ≤1.8 |n| PIM, 3rd Order, 2 x 20 W (dBc) | -153 | -153 | -153 | -153 | -153 |n| Input Power, Maximum (W) | 50 | 50 | 50 | 50 | 50 |n| Impedance (Ohm) | 50 | 50 | 50 | 50 | 50 |nnThis table illustrates the antenna’s versatility, offering gain that increases with higher frequency bands while maintaining low VSWR and excellent front-to-back ratios. Such specs are vital for reducing signal reflections and improving overall efficiency in challenging indoor scenarios.nn
Mechanical Durability and Easy Integration

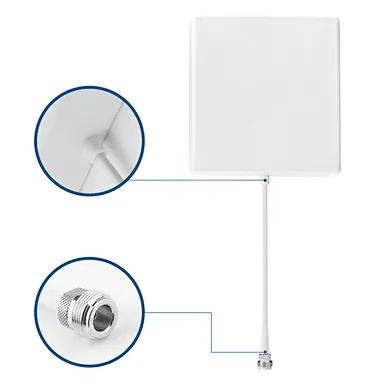

nnBeyond electrical performance, the indoor directional panel antenna is built to last. Its robust mechanical design ensures long-term reliability, even in high-traffic indoor settings like offices, hospitals, or commercial buildings. The use of high-quality ABS radome material and white RAL9003 color allows the antenna to blend into ceilings or walls discreetly. Furthermore, the lightweight construction makes installation straightforward, while the flexible mounting options—including on-wall brackets—provide placement versatility. Connector options such as N-type, DIN, and 4.3-10 female ensure compatibility with a wide range of RF equipment, simplifying upgrades or new installations for professionals.nn
Why the Directional 7dBi Indoor Antenna Excels
nnThe directional 7dbi indoor antenna excels in environments where precise signal directionality is critical. Its optimized radiation pattern enhances signal strength while reducing interference from unwanted sources. Additionally, the 50ohm antenna impedance ensures efficient power transfer and minimal signal loss, which is essential for high-performance wireless communication systems. Whether you are improving Wi-Fi coverage, boosting mobile network signals, or ensuring crisp digital TV reception, this antenna delivers consistent, high-quality results.nn
Applications Demanding Reliable Coverage
nnFrom smart buildings and enterprise networks to home entertainment systems, the indoor directional panel antenna proves itself as a robust, future-proof solution. Its adaptability to multiple frequency bands and low PIM ratings make it ideal for modern telecom infrastructure, IoT deployments, and broadcasting. The antenna’s excellent front-to-back ratio minimizes reflections, enhancing performance in environments with many walls or obstacles. This makes it particularly valuable in settings like conference rooms, retail spaces, or multi-dwelling units where signal dead zones must be eliminated.nn
Conclusion: A Smart Investment for Consistent Signal Strength
nnIn conclusion, the indoor directional panel antenna combines precision engineering, durability, and ease of installation to offer a top-tier solution for indoor wireless communication. Its ability to deliver focused, high-gain performance while reducing interference ensures reliable connectivity for both commercial and residential applications. By choosing a directional 7dbi indoor antenna, professionals and homeowners alike can achieve the robust coverage needed for modern connectivity demands. The specifications and design details outlined here confirm that this antenna is a wise investment for anyone seeking to optimize their indoor network performance, ensuring strong, stable signals in any setting.
