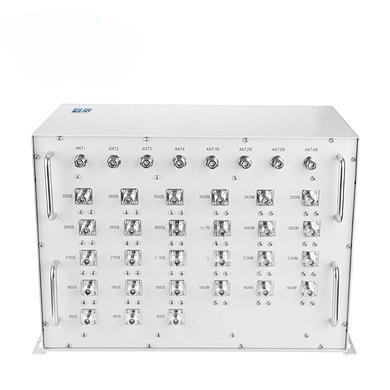

Mastering Signal Integration: The 800-2700MHz 18 In 6 Out POI with DIN Female Connector
nnIn the fast-paced world of modern telecommunications, the ability to integrate and distribute signals efficiently is not just an advantage—it is a necessity. As networks grow denser and more complex, the tools used to manage them must evolve. The 800-2700MHz 18 In 6 Out POI with DIN Female connector stands out as a robust solution engineered to meet these high-stakes demands. This Point of Interface (POI) device acts as a central nervous system for signal flow, combining numerous inputs into streamlined outputs while maintaining pristine signal quality across a wide range of frequencies.nn
Unparalleled Connectivity and Capacity
nnAt the heart of this device is its impressive architecture. Featuring 18 input ports and 6 output ports, the 800-2700MHz 18 In 6 Out POI with DIN Female connector is designed for high-density environments. This configuration allows it to consolidate signals from up to 18 different sources—such as multiple base stations or different network operators—and distribute them efficiently through just 6 output lines. This reduces cabling complexity, saves valuable space, and simplifies network management, all while ensuring that each signal maintains its integrity.nn
Broadband Performance for Multi-RAT Support
nnOne of the most compelling features of this POI is its exceptionally wide operating frequency range. Covering from 800 MHz all the way to 2700 MHz, this device is future-proof and backward-compatible. It seamlessly integrates signals from:n- 2G Networks: GSM900 and DCS1800n- 3G Networks: UMTS2100n- 4G Networks: LTE1800 and LTE2600nnBy supporting these multiple radio access technologies (RATs), the 800-2700MHz 18 In 6 Out POI with DIN Female connector enables smooth coexistence of legacy and modern systems. This is critical for venues like airports, stadiums, and shopping centers, where users on different carriers and devices must all experience reliable connectivity.nn
Technical Specifications at a Glance
nnTo ensure optimal performance in demanding RF environments, this POI is built with precision engineering. Below are the detailed specifications that define its exceptional electrical and mechanical capabilities.nn
| Parameter | Specification |
|---|---|
| Frequency Range | 800 – 2700 MHz |
| Power Handling (per Input Port) | 150W |
| Insertion Loss | < 5.0 dB |
| Voltage Standing Wave Ratio (VSWR) | 1.25:1 |
| Return Loss | -20 dB |
| Passive Intermodulation (PIM, IM3) @ 2×43dBm | < -150 dBc |
| Characteristic Impedance | 50 Ω |
| Input Ports | 18 Ports, DIN-Female |
| Output Ports (to DAS/Antenna) | 6 Ports, DIN-Female |
| Size | 19-inch Rack, 8U Height |
| Mounting | 19-inch Cabinet or Wall Mounting |
| Operating Temperature Range | 0°C to +55°C |
| Humidity | 5% to 97% |
| Environmental Condition | Indoor Type |
nn
Detailed Frequency Allocation
nnFor precise network planning, the device offers dedicated paths for specific bands. The following table outlines the exact frequency assignments for the 18 input ports.nn
| Port Name | Frequency Band (MHz) |
|---|---|
| GSM900-1 | 800 – 960 |
| GSM900-2 | 800 – 960 |
| GSM900-3 | 800 – 960 |
| LTE1800-1 | 1710 – 1880 |
| LTE1800-2 | 1710 – 1880 |
| LTE1800-3 | 1710 – 1880 |
| UMTS2100-1 | 1920 – 2170 |
| UMTS2100-2 | 1920 – 2170 |
| UMTS2100-3 | 1920 – 2170 |
| LTE2600-1 | 2500 – 2690 |
| LTE2600-2 | 2500 – 2690 |
| LTE2600-3 | 2500 – 2690 |
| LTE1800-1_MIMO | 1710 – 1880 |
| LTE1800-2_MIMO | 1710 – 1880 |
| LTE1800-3_MIMO | 1710 – 1880 |
| LTE2600-1_MIMO | 2500 – 2690 |
| LTE2600-2_MIMO | 2500 – 2690 |
| LTE2600-3_MIMO | 2500 – 2690 |
nn
Superior Isolation for Clean Signals
nnA major challenge in multi-band signal integration is interference. The 800-2700MHz 18 In 6 Out POI with DIN Female connector addresses this with industry-leading isolation performance. The isolation between different systems exceeds 90dB, while isolation between identical systems is greater than 25dB. This ensures that each signal path remains clean and free from cross-contamination, which is essential for maintaining low bit error rates and high data throughput in dense urban environments.nn
Robust Construction and Flexible Deployment
nnBuilt with a durable 19-inch rack form factor at 8U height, this POI is designed for professional installation. The use of DIN-Female connectors on all ports guarantees a secure, weather-resistant connection that withstands vibration and repeated use. The device offers flexible mounting options, fitting neatly into standard 19-inch cabinets or directly onto walls in equipment rooms. It operates reliably within a temperature range of 0°C to +55°C and humidity levels from 5% to 97%, making it ideal for controlled indoor environments like server rooms, telecom closets, and head-end facilities.nn
Where Reliability Meets Performance
nnWhether you are outfitting a massive communication base station, deploying an indoor distribution system for a commercial complex, or ensuring robust signal coverage at a transportation hub, the 800-2700MHz 18 In 6 Out POI with DIN Female connector is the right-hand man for the job. Its powerful signal integration capabilities, wide-band frequency compatibility, and reliable connection performance make it an indispensable component in any modern communication network.nn
Conclusion: The Ultimate Signal Integration Solution
nnThe 800-2700MHz 18 In 6 Out POI with DIN Female connector is more than just a hardware component; it is a strategic asset for network operators and system integrators who demand quality and efficiency. By consolidating up to 18 diverse signal sources into a clean, organized 6-output system, it reduces infrastructure costs and simplifies maintenance. With its exceptional electrical specifications—including low insertion loss, high isolation, and low PIM—it guarantees the high-quality transmission required for today’s data-hungry applications. Choose the 800-2700MHz 18 In 6 Out POI with DIN Female connector and build a communication network that is efficient, stable, and ready for the future.
