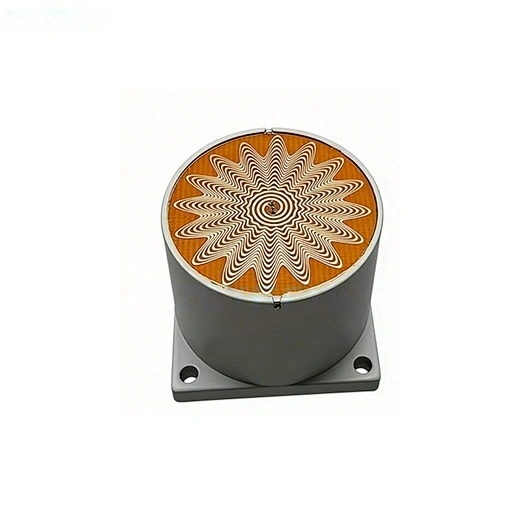

Unlocking Wideband Performance: The 2-18GHz Right-Handed Circular Polarization Plane Spiral Antenna
nnIn the demanding world of RF and microwave communications, achieving reliable, high-fidelity signal transmission across an exceptionally wide bandwidth is a constant challenge. The MOP20180D32-AP Plane Spiral Antenna array rises to meet this challenge head-on, delivering a robust solution for applications that require consistent performance from 2GHz all the way up to 18GHz. At its heart lies a meticulously engineered 2-18GHz Right-Handed Circular Polarization Plane Spiral Antenna, designed to provide stable polarization, low signal loss, and outstanding environmental resilience. This antenna is not just a component; it is a gateway to clear, uninterrupted communication in some of the most demanding radio frequency environments.nnThe foundation of this antenna’s versatility is its ultra-wideband capability. Covering the full 2-18GHz spectrum in a single, compact unit, it eliminates the need for multiple antennas to handle different frequency bands. This simplifies system design, reduces integration complexity, and cuts overall costs. Whether deployed in electronic warfare, spectrum monitoring, or high-bandwidth data links, the 2-18GHz Right-Handed Circular Polarization Plane Spiral Antenna ensures that your system has the frequency agility it needs to adapt to evolving operational requirements.nn
Exceptional Gain and Beam Coverage
nnPerformance in an antenna is measured not just by what frequencies it covers, but how effectively it uses them. This antenna delivers impressive gain characteristics that are stage-optimized across its frequency range. In the crucial lower band from 2 to 2.5 GHz, the gain reaches ≥ -14 dBi, strengthening to ≥ -8 dBi between 2.5 and 3 GHz, and achieving ≥ -5 dBi from 3 to 18 GHz.nnThis progressive gain increase is complemented by a well-defined, frequency-adaptive 3 dB beamwidth. Combined with a generous space coverage of ±45° in both azimuth and elevation, the antenna provides broad, reliable coverage. The result is a consistent and powerful signal across the entire coverage area, making it an ideal choice for systems that need to detect or communicate with targets or devices moving across a wide field of view.nn
Mastering Polarization and Signal Integrity
nnFor applications where signal integrity is paramount, the choice of polarization is critical. As a dedicated Right-handed Circular Polarization Antenna, this model excels. Right-hand circular polarization (RHCP) offers inherent advantages over linear polarization, including superior resistance to signal degradation from reflections and misalignment between transmitting and receiving antennas. This makes it exceptionally effective in multipath-rich environments like urban areas or inside complex structures.nnThe antenna’s polarization characteristics are remarkably stable, with a typical axial ratio of ≤3 dB. This low axial ratio ensures that the signal remains nearly perfectly circular, minimizing polarization mismatch losses. Furthermore, the antenna boasts a high proximal isolation of ≥10 dB within ±90° of azimuth and pitch. This high isolation minimizes interference from nearby signals or other antenna elements, ensuring that the Right-handed Circular Polarization Antenna delivers a clean, strong signal even in dense RF environments.nn
Low Standing Wave and Seamless Integration
nnEfficient power transfer is the lifeblood of any RF system, and this antenna is designed to minimize losses. It features a low standing wave ratio (VSWR) with a typical value of ≤2.5 across the entire band. A low VSWR indicates that the antenna is ideally matched to the transmission line, reflecting very little power back toward the source. This results in exceptionally low transmission loss, ensuring that the maximum amount of RF energy is radiated effectively.nnIntegration is also straightforward, thanks to the standard 50Ω impedance and a robust, stainless steel SMA-50K connector. This professional-grade connector is compatible with the vast majority of modern RF test equipment, transmitters, and receivers. With a continuous wave power handling capacity of 5 Watts, the antenna is well-suited for both high-sensitivity receive applications and moderate-power transmit systems, providing a reliable and efficient RF interface.nn
Technical Specifications at a Glance
nnThe following table details the core parameters that define the performance and capabilities of this antenna.nn
| Parameter | Value |
|---|---|
| Frequency Range | 2 – 18 GHz |
| Gain (In Coverage Area, 2-2.5 GHz) | ≥ -14 dBi |
| Gain (In Coverage Area, 2.5-3 GHz) | ≥ -8 dBi |
| Gain (In Coverage Area, 3-18 GHz) | ≥ -5 dBi |
| Standing Wave Ratio (VSWR, Typical) | ≤ 2.5 |
| Space Coverage (Azimuth & Elevation) | ±45° |
| Connector Type | SMA-50K (Stainless Steel) |
| Proximal Isolation (±90° Azimuth & Pitch) | ≥ 10 dB |
| Polarization Method | Right-Handed Circular (RHCP) |
| Axial Ratio (Typical) | ≤ 3 dB |
| Weight | ≤ 60 g |
| Antenna Size (L x W x H, excl. connector) | ≤ 32.5 mm x 32.5 mm x 33.8 mm |
| Antenna Cavity Material | Alufer |
| Working Temperature | -50°C to +70°C |
| Storage Temperature | -55°C to +60°C |
| Impedance | 50 Ω |
| Power Handling Capacity | 5 W (Continuous Wave) |
| Vibration Resistance (X-axis) | 14.8 g (Test ≥ 4 hours) |
| Vibration Resistance (Y/Z-axis) | 12.7 g (Test ≥ 4 hours per axis) |
nn
Built for the Harshest Environments
nnDurability and reliability are engineered into every aspect of this antenna. The use of Alufer material for the antenna cavity provides an excellent balance of strength and weight, contributing to the antenna’s miniaturized form factor of just 32.5 x 32.5 x 33.8 mm and a weight of only 60 grams. This compact design simplifies integration into tight spaces, such as unmanned aerial vehicles (UAVs), handheld devices, or multi-antenna arrays.nnThe antenna is built to endure extreme conditions. It operates reliably across a wide temperature range from -50°C to +70°C and can be stored in environments from -55°C to +60°C. Furthermore, its superior vibration resistance allows it to withstand rigorous testing: 14.8g in the X-direction and 12.7g in the Y and Z directions for at least 4 hours per axis. This ruggedness ensures consistent performance in mobile platforms, industrial machinery, and airborne applications where shock and vibration are constant factors.nn
Conclusion
nnThe MOP20180D32-AP 2-18GHz Right-Handed Circular Polarization Plane Spiral Antenna represents a convergence of wideband performance, signal integrity, and extreme durability. Its ability to cover a massive 16:1 bandwidth ratio in a single, miniature package, while maintaining excellent gain, low VSWR, and stable right-handed circular polarization, makes it an invaluable asset for system designers. From industrial RF sensing and microwave communication to advanced wireless detection systems, this antenna provides the reliable, high-quality signal foundation necessary to succeed in the most challenging electromagnetic and environmental conditions. It is a true workhorse for the next generation of wideband communication and sensing technologies.
