China Moneypro 6GHz-8GHz 8-Element Sectoral Horn Array Antenna

Unleashing High-Performance Directional Sensing with a Premium Sectoral Horn Array

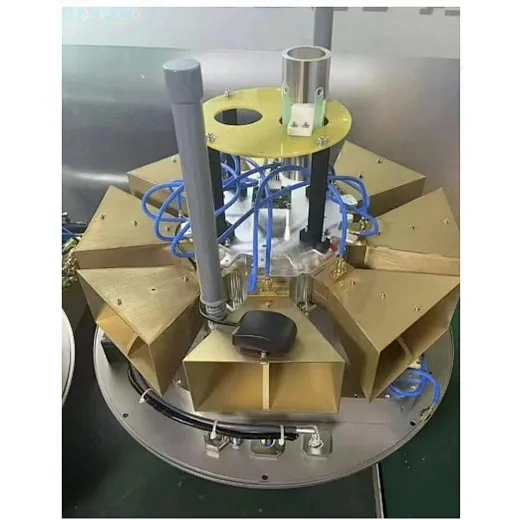

nnIn the demanding world of radio frequency (RF) direction finding, precision and reliability are non-negotiable. The 6GHz-8GHz 8-Element Sectoral Horn Array Antenna embodies advanced engineering, designed to deliver exceptional performance across the critical 6–8 GHz spectrum. This high-gain, omnidirectional antenna system integrates eight sectoral horn elements in a circular configuration, providing full 360° azimuth coverage while maintaining stable signal reception in the elevation plane. Whether deployed in fixed installations or mobile units, this antenna offers the robust hardware foundation required for high-accuracy RF direction positioning applications. As we explore its design, specifications, and real-world utility, you will discover why this sectoral horn array is redefining what is possible in direction finding technology.nn

The Science of Circular Array Design

nnAt the heart of this antenna lies a meticulously optimized circular array of eight sectoral horn elements. Unlike traditional omnidirectional antennas that sacrifice gain for coverage, this design strikes an optimal balance. Each element functions as a sectoral horn with a precisely defined beamwidth of 45°±2° in both azimuth and elevation. When combined, these elements create a seamless 360° coverage pattern, eliminating blind spots and ensuring consistent signal capture from all directions.nnThe sectoral horn geometry itself is critical. Horn antennas are known for their low sidelobe levels and high directivity, but the sectoral variant tailors the beam to a specific angular aperture. This makes it ideal for array integration, where overlapping beams must maintain uniform performance. The result is an antenna array that not only covers all azimuths but also provides consistent gain and phase characteristics across the entire frequency range, making it a cornerstone for any high-precision sectoral horn array system.nn

Understanding the Sectoral Horn Array Through Key Specifications

nnTo appreciate the engineering excellence of this antenna, it helps to examine its specifications in detail. The table below summarizes the critical parameters that define its performance:nn

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

nnThese specifications underscore the antenna’s suitability for high-precision direction finding systems. The low VSWR of ≤2.5 ensures minimal signal reflection, maximizing power transfer and reducing interference. Port isolation of ≥25 dB is crucial for preventing cross-coupling between adjacent elements—a common source of error in phased array systems. Meanwhile, the tight gain consistency of ≤±0.5 dB and phase consistency of ≤±3° ensure that each element behaves uniformly, enabling accurate angle-of-arrival estimation. These metrics collectively make this sectoral horn array a top-tier choice for professionals who demand nothing less than perfection.nn

Advanced Sectoral Horn Array Technology

nnThe term sectoral horn array refers to the specific arrangement and design of the radiating elements. In this antenna, each horn is a sectoral type, meaning its aperture is flared in only one plane (the H-plane or E-plane) while remaining narrow in the other. This produces a fan-shaped beam that is well-suited for creating overlapping coverage zones in a circular array. When eight such horns are arranged in a regular octagon, their individual beams combine to form a near-perfect omnidirectional pattern in azimuth.nnThe key advantage of this architecture is its ability to maintain high gain across the full 360° coverage. Traditional omnidirectional antennas, such as dipoles or discones, typically offer gains of 2–6 dBi. In contrast, each element in this array provides 10–12 dBi, meaning the overall system sensitivity is significantly higher. This is particularly valuable in direction finding applications where weak signals must be detected and accurately localized.nnFurthermore, the sectoral horn array design inherently supports amplitude and phase calibration. With individual element gains and phases matched so closely, the antenna system can deliver consistent, repeatable results—a requirement for any professional DF system. The phase uniformity of ≤±3° is especially impressive, as phase errors are a primary source of bearing inaccuracy in interferometric or correlative DF methods. This level of precision ensures that when you deploy this sectoral horn array, you are building your system on a foundation of reliability and accuracy.nn

Rugged Construction for Harsh Environments

nnBuilt to endure, this antenna features a housing crafted from aluminum alloy with a gold anodized finish. This surface treatment not only provides an aesthetically pleasing appearance but also delivers exceptional corrosion resistance and durability. The gold anodization process creates a hard, protective layer that withstands UV exposure, salt spray, and chemical pollutants, making the antenna suitable for outdoor deployment in coastal, industrial, or desert environments.nnThe antenna’s operating temperature range of -40°C to +85°C ensures reliable performance in extreme climates, from Arctic cold to desert heat. The storage temperature range extends to -55°C to +90°C, accommodating transport and storage in unregulated conditions. This thermal resilience is critical for military, aerospace, and critical infrastructure applications where failure is not an option.nnWeight is also a consideration for mobile deployments. At just 8 kg, this antenna is lightweight enough for rooftop installations, vehicle mounts, or portable tripods. The bottom flange with mounting holes simplifies integration onto standard mast systems or custom platforms, reducing setup time and complexity.nn

Applications in Professional RF Direction Finding

nnThis antenna is purpose-built for high-precision direction finding systems. Its wideband 6–8 GHz coverage aligns with several critical RF bands used in radar, communications, and electronic warfare. Common applications include:nn- Spectrum Monitoring: Detecting and locating unauthorized transmitters, interference sources, or regulatory violations.n- Electronic Support Measures (ESM): Identifying and geolocating radar or communication signals in military and defense environments.n- Telecommunications Testing: Verifying the directional performance of antennas, base stations, and repeaters.n- Search and Rescue: Locating emergency beacons or personnel transmitters in the 6–8 GHz range.n- Radio Astronomy: Characterizing celestial RF sources with high angular resolution.nnIn each of these scenarios, the antenna’s consistent gain, phase, and isolation parameters enable accurate bearing estimation. When paired with a suitable receiver and direction finding algorithm, it can achieve bearing accuracies of just a few degrees—a level of performance that sets it apart from simpler antenna designs. Whether you are tracking signals for security, research, or communications, this sectoral horn array gives you the edge you need.nn

Conclusion: The Gold Standard for Sectoral Horn Array Solutions

nnThe 6GHz-8GHz 8-Element Sectoral Horn Array Antenna represents a pinnacle of engineering for professional direction finding. Its circular array of eight sectoral horn elements delivers both high gain and full 360° coverage, while its precise amplitude and phase characteristics ensure reliable, repeatable results. The rugged aluminum alloy construction with gold anodized finish guarantees years of trouble-free operation in demanding environments.nnWhether you are designing a spectrum monitoring system, upgrading an ESM suite, or deploying a mobile DF unit, this antenna offers the performance, durability, and precision you need. Its specifications speak for themselves: low VSWR, high isolation, and tight uniformity across all eight ports. In the world of RF direction finding, where every decibel and every degree counts, this sectoral horn array stands ready to deliver the performance you demand. Embrace the future of directional sensing with a solution that is truly built to excel.
