Unlocking Powerful Performance: The 100W Power Amplifier Series
nnIn the demanding world of RF communication, signal integrity and reach are paramount. When a transmitter’s native power falls short, a high-gain booster becomes the critical link in the chain. Our latest series of 100W Power Amplifiers, specifically the MOP-PA-868/915M-100W and the MOP-PA-2400/2500M-100W, are engineered to deliver exactly that—robust, clean, and reliable signal amplification. Whether you are working in the sub-gigahertz ISM bands or the higher-frequency 2.4 GHz spectrum, these amplifiers provide the muscle needed to extend communication range and overcome challenging path losses. This article dives deep into the technical architecture, performance specifications, and key features of these powerful RF components.nn

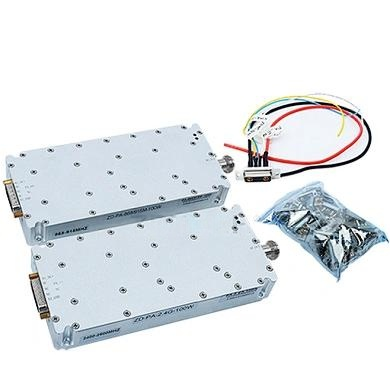

Understanding the 100W Power Amplifier Core Design
nnAt the heart of each module lies a meticulously designed amplification chain, optimized for linearity and efficiency. Achieving a saturated output power of 50±1dBm (100 Watts) requires not only high-performance transistors but also precise impedance matching and thermal management. Both models share a common foundation in their gain stage, offering a typical small-signal gain of 50±2dB. This high gain means that a modest input signal of just a few milliwatts can be boosted to a full 100 Watts, making these amplifiers ideal for use behind signal generators, software-defined radios, or low-power transceivers.nn
Comprehensive Technical Specifications for the 100W Power Amplifier
nnBelow are the detailed RF technical parameters for both models. This data is critical for system integrators and engineers who need to verify compatibility with their existing RF front ends and regulatory requirements.nn
MOP-PA-868/915M-100W Specifications
n
| Parameter | Value |
|---|---|
| Working Frequency | 868-915 MHz |
| Saturated Output Power | 50±1 dBm |
| Gain | 50±2 dB |
| In-band Fluctuation | ≤2.0 dB |
| Out-of-band Spurious (9kHz-1GHz) | ≤-36 dBm/30kHz |
| Out-of-band Spurious (1GHz-12.75GHz) | ≤-30 dBm/30kHz |
| Input VSWR | ≤1.5 |
| Gain Temperature Stability | ≤±1.5 dB |
| Working Voltage | DC +32V |
| Working Current | ≤8.5A |
| Power Supply Monitoring Interface | 7W2 Power Seat: A1:32V, A2:GND. Pins: 1:PA_SW, 2:TEMP_ALM, 3:NC, 4:NC, 5:VSWR_ALM (Alarm: 0V, Normal: 3V) |
| Output RF Port | N-F (N-Type Female) |
| Dimensions | 170 × 77 × 24.5 mm |
| Working Temperature | -10 to +55℃ |
nn
MOP-PA-2400/2500M-100W Specifications
n
| Parameter | Value |
|---|---|
| Working Frequency | 2400-2500 MHz |
| Saturated Output Power | 50±1 dBm |
| Gain | 50±2 dB |
| In-band Fluctuation | ≤2.0 dB |
| Out-of-band Spurious (9kHz-1GHz) | ≤-36 dBm/30kHz |
| Out-of-band Spurious (1GHz-12.75GHz) | ≤-30 dBm/30kHz |
| Input VSWR | ≤1.5 |
| Gain Temperature Stability | ≤±1.5 dB |
| Maximum Lossless Input | +10 dBm |
| Working Voltage | DC +32V |
| Working Current | ≤8.5A |
| Power Supply Monitoring Interface | 7W2 Power Seat: A1:32V, A2:GND. Pins: 1:PA_SW, 2:TEMP_ALM, 3:NC, 4:NC, 5:VSWR_ALM (Alarm: 0V, Normal: 3V) |
| Output RF Port | N-F (N-Type Female) |
| Dimensions | 170 × 77 × 24.5 mm |
| Working Temperature | -10 to +55℃ |
nn
Key Features and Advanced Protection of the 100W Power Amplifier
nnBeyond raw power, these amplifiers are designed for real-world deployment. The integrated power supply monitoring interface is a standout feature, offering critical telemetry for system health. The 7W2 connector provides not only the DC input (32V and GND) but also logic-level signals for remote control and fault indication. The PA_SW pin allows for external enable/disable control, while the TEMP_ALM and VSWR_ALM pins provide immediate notification of thermal or antenna mismatch issues. The alarm logic is straightforward: a 3V signal indicates normal operation, and a 0V signal triggers an alert. This digital feedback loop is invaluable for unmanned installations or automated power-cycling systems.nn
Thermal and Impedance Management
nnThe robust gain temperature stability of ≤±1.5dB ensures consistent performance across the -10 to +55℃ operating range. This is achieved through advanced biasing circuits and a heatsink-friendly mechanical design housed within a compact 170×77×24.5mm chassis. The low input VSWR of ≤1.5 minimizes reflected power back to the driving source, preserving signal quality and preventing damage to the upstream transmitter.nn
Conclusion: Selecting the Right 100W Power Amplifier
nnThe choice between the MOP-PA-868/915M-100W and the MOP-PA-2400/2500M-100W hinges entirely on your working frequency. For applications in the 868 MHz or 915 MHz ISM bands—common in LoRaWAN gateways, industrial telemetry, and long-range IoT backhauls—the sub-gigahertz model is the perfect fit. For Wi-Fi backhaul, drone command links, or high-speed data systems operating in the 2.4 GHz band, the 2400-2500 MHz unit provides identical power and gain characteristics. Both models share the same footprint, power requirements, and monitoring interface, which simplifies integration and inventory management. By choosing a 100W Power Amplifier from this series, you are investing in a robust, high-performance solution designed to deliver reliable signal boost with comprehensive diagnostic capabilities.
