Unleashing Long-Range Reliability: The High Gain Helical Antenna for Critical Outdoor Links
nnWhen you need a robust, long-range wireless solution that can withstand the harshest outdoor environments, the high gain helical antenna emerges as a superior choice. Engineered for precision and durability, this directional antenna is more than just a signal booster—it is a cornerstone of reliable communication in demanding applications. Designed to bridge the gap between powerful transmission and resilient construction, it offers a unique blend of performance and practicality.nn
Built for Precision: Why a High Gain Helical Antenna Matters
nnAt the heart of this device lies its impressive 14dBi gain. This high gain helical antenna focuses radio frequency energy into a tight, directional beam, significantly extending communication range and improving signal clarity. Unlike omnidirectional antennas that broadcast indiscriminately, this focused approach minimizes signal loss and dramatically reduces interference from surrounding sources. This makes it an ideal choice for point-to-point links, such as connecting remote buildings on a campus, securing video surveillance feeds, or establishing reliable industrial data networks.nnOperating flawlessly within the 1500-1620MHz frequency band, this antenna also serves as a dependable directional outdoor GPS antenna. Its precise signal focusing ensures stable reception from GPS satellites, even in environments with high levels of radio frequency clutter.nn
Technical Excellence in Every Detail
nnThe performance of this antenna is rooted in meticulous engineering. It achieves a very low Voltage Standing Wave Ratio (VSWR) of ≤1.5, which means almost all the power from your transmitter is delivered to the antenna with minimal reflection. This efficiency translates directly into stronger signals and less heat generation within your equipment.nnFurthermore, the vertical polarization and standard 50Ω impedance guarantee seamless compatibility with the vast majority of modern wireless transceivers, routers, and access points. Installation is straightforward, requiring no complex impedance matching or adapters. The built-in DC grounding provides essential lightning protection, ensuring the antenna and connected equipment are safe from static discharge and induced surges during electrical storms.nn
| Parameter | Specification |
|---|---|
| Frequency Range | 1500-1620 MHz |
| Peak Gain | 14 dBi |
| Polarization | Vertical |
| VSWR (Typical) | ≤1.5 |
| Impedance | 50 Ohms |
| Maximum Input Power | 50 Watts |
| Lightning Protection | DC Ground |
| Connector Type | N Female |
| Cable | RG58/U, 300mm length |
| Reflector Material | Aluminum |
| Radome Material | ABS |
| Pole Diameter Range | 35-50 mm |
| Rated Wind Velocity | 36.9 m/s |
| Operating Temperature | -40°C to +90°C |
nn
Engineered for the Most Demanding Outdoor Conditions

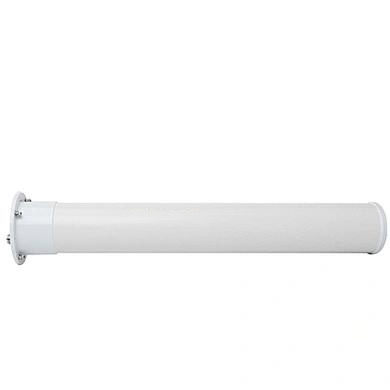

nnA high gain antenna is only as good as its ability to survive its installation environment. The MOP-DHA-1.5G-14-NF excels here. It features a machined aluminum reflector and a durable ABS radome. This construction allows it to operate flawlessly in extreme temperatures ranging from -40°C to +90°C. Whether it’s on a sun-baked rooftop in a desert or a frozen tower in a northern climate, this antenna maintains its structural integrity and electrical performance.nnIts rated wind velocity of 36.9 m/s underscores its ability to withstand severe storms. The included mounting hardware accommodates poles ranging from 35mm to 50mm in diameter, offering flexible installation options on masts, towers, or wall mounts.nn
Conclusion: The Ultimate Choice for Stable Long-Range Links
nnSelecting the right antenna is critical to the success of any wireless deployment. This high gain helical antenna offers an exceptional balance of high performance, robust construction, and user-friendly installation. Its focused 14dBi gain extends range and cuts through interference, while its rugged design ensures years of reliable service, even in the most challenging outdoor settings. For campus networks, industrial automation, or advanced security systems requiring a stable, long-range directional link, this antenna stands as a top-tier solution. Its thoughtful design—from the DC lightning protection to the corrosion-resistant materials—ensures that your critical connection remains strong, secure, and uninterrupted.
