China Moneypro Airborne 4g lte Base Station Fast Deployment For Emergency Long Range Video and Voice Communication

Introducing the Patron-X10: Your Rapid-Response 4G LTE Network in the Sky

The Patron-X10 by IWAVE is an advanced, lightweight LTE compact eNodeB, engineered specifically for drone deployment. Designed for speed and reliability, it enables a fully operational 4G LTE network within minutes—ideal for emergency and crisis response scenarios.

Key Features & Benefits:

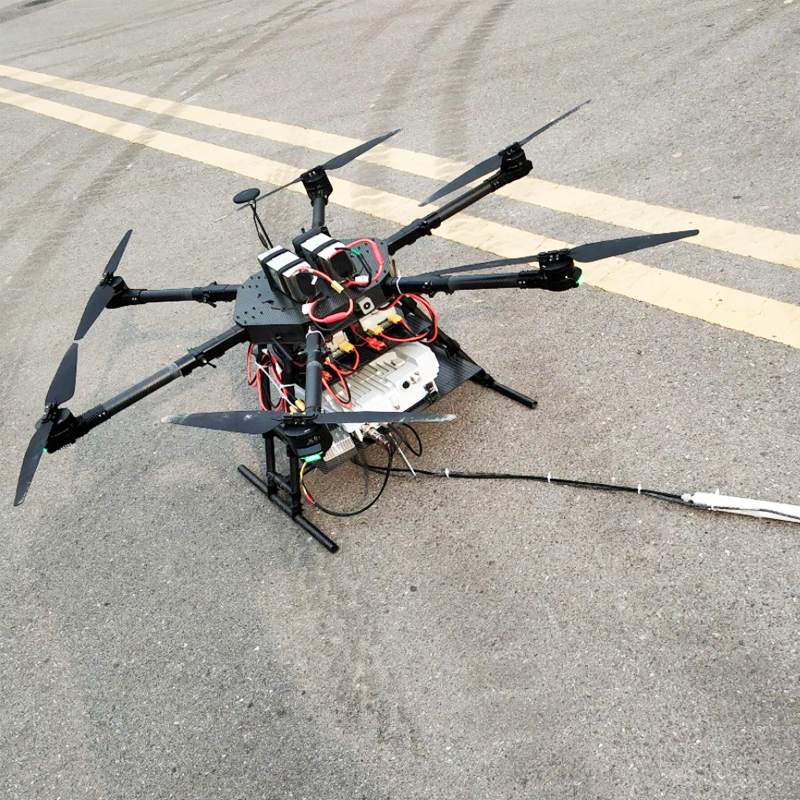

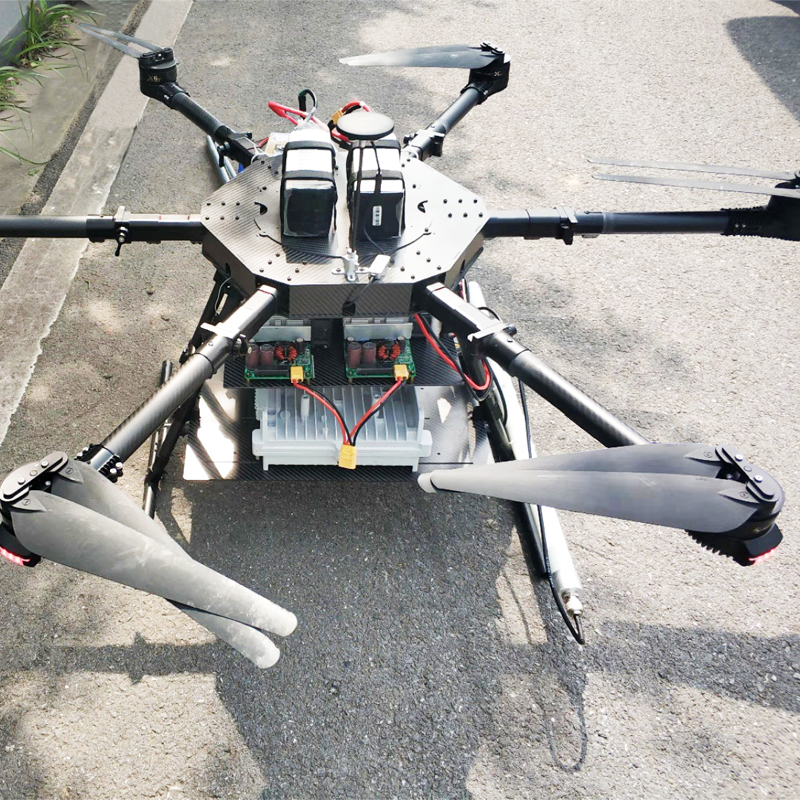

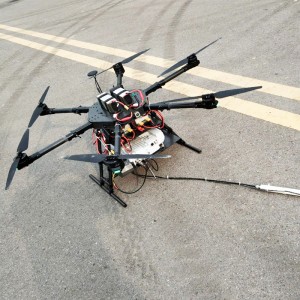

  • Rapid Deployment: Mounts on a tethered drone and becomes operational in under 10 minutes.
  • Extended Coverage: Delivers LTE connectivity across a radius of over 20 km.
  • Always-On Network: Ensures 24/7 LTE coverage during emergencies when deployed on a tethered drone.
  • Cost-Effective Performance: Supports multimedia trunking, live video, voice communications, and video surveillance—efficiently and affordably.
  • Enhanced Response Capability: Improves dispatch efficiency and accelerates emergency response, all while reducing operational costs.

Built for agility and built to last, the Patron-X10 keeps critical communications live when it matters most.

Category:
Description

Introducing the All-in-One Rapid Deployment Communication System

Key Features at a Glance:

Plug-and-Play Simplicity
A fully integrated, compact design that combines Core Network, base station, and dispatching system into a single, ready-to-use unit.

Rapid Deployment
Set up a complete critical communication network in just 10 minutes—ideal for emergencies, disaster zones, or events where public networks fail or signals are weak.

Flexible & Rugged
Operates across multiple frequency bands (400MHz, 600MHz, 1.4GHz, 1.8GHz) and delivers reliable communication across a 20km+ radius in demanding environments.

High-Performance Connectivity
Enables clear voice communication, real-time dispatching, and live video uploads with simultaneous streaming to all members of a call group. Designed for diverse industries and mission-critical applications.

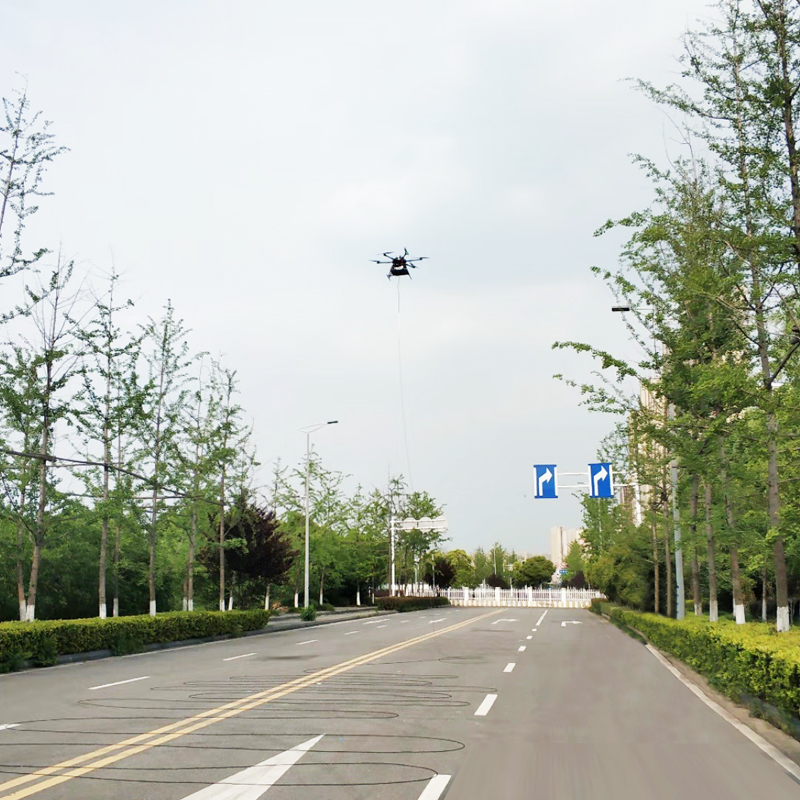

Extended Coverage with Aerial Deployment
When elevated on a tethered drone at 100m above ground, the system expands coverage to a radius of ≥20km, ensuring communication across wide and difficult terrain.

Improved for clarity, flow, and impact:

  • Structured with clear headings and concise bullet points
  • Active voice and stronger verbs (e.g., “Set up” instead of “fast deployment”)
  • Consistent formatting for readability
  • Added emphasis on key specs and benefits
  • Removed redundancy and tightened phrasing
LTE Base Station 03



Key Features

  • Outdoor-Ready Design – No indoor equipment needed.
  • Quick & Simple Setup – Easy to install and maintain.
  • Flexible Bandwidth – Choose 5, 10, 15, or 20 MHz.
  • High Power Option – Up to 20W RF power available.
  • High-Speed Connectivity – Ultra-broadband with 80 Mbps download and 30 Mbps upload.
  • Scalable Capacity – Supports up to 128 active users at once.

Ideal For

  • Public Safety & Emergency Management
  • VIP & Executive Security
  • Disaster Relief & Mobile Communications

Let me know if you’d like this tailored for a brochure, website, or proposal!

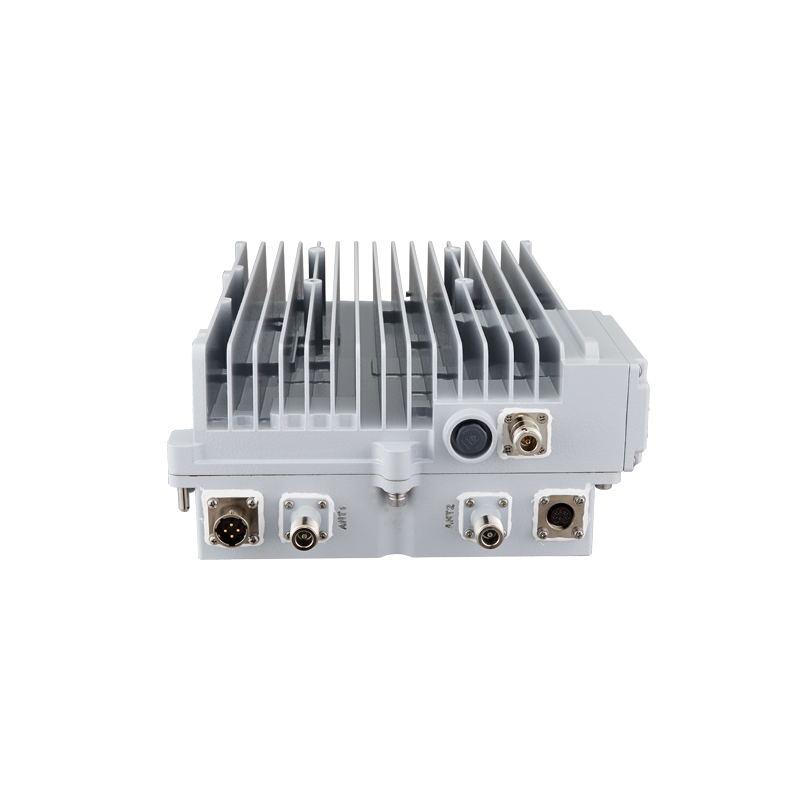

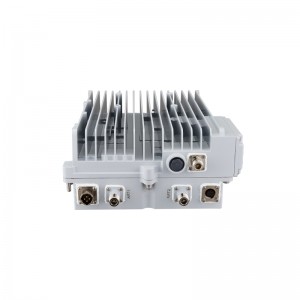

Airborne TD-LTE Base Station


Specification

SPECIFICATIONS
LTE Mode TDD
Frequency Bands 400Mhz: 400Mhz-430Mhz
600Mhz: 566Mhz-626Mhz, 606Mhz-678Mhz
1.4Ghz: 1447Mhz-1467Mhz
1.8Ghz: 1785Mhz-1805Mhz
Channel Bandwidth 5/10/15/20 MHz
Max Output Power 20Watts
Power Supply 48V DC or 220V AC
Power Consumption 280watts
Receive Sensitivity
MIMO 2×2
Installation Drone Mount
Dimensions 377*298*124mm
Weight 8.9kg
Users 128
Working Temperature -20°C ～60°C
Throughput DL: ≤80mbps
UL: ≤30mbp
