Powerful & Adaptive Communication System
Core Capabilities:
- Extended Range & Reliability: Exceptional transmission distance with strong anti-interference and non-line-of-sight (NLOS) performance.
- Mobile-Ready Design: Fully adaptable to dynamic and on-the-move environments.
- Adjustable RF Power: Flexible output settings from 2W to 25W (2/5/10/15/20/25W).
- Rapid Deployment: Supports quick setup with dynamic, self-organizing networks—no central hub required.
- Multi-Hop Forwarding: Enables extended coverage through intelligent signal relaying.
Advanced Technical Features:
- High Sensitivity: Outstanding reception down to -120dBm for clear signal acquisition.
- Versatile Voice Channels: Six time slots allow multiple simultaneous group or individual calls.
- Dual-Band Operation: Compatible with both VHF and UHF frequencies.
- Repeater Function: Single-frequency operation with 3-channel repeating capability.
- Adaptive Networking:
- 6-hop, 1-channel ad hoc networking
- 3-hop, 2-channel ad hoc networking
- User-Friendly Software: Dedicated programming software for easy frequency management.
Endurance & Usability:
- Long-Lasting Battery: Up to 28 hours of continuous operation on a single charge.
Improved by:
- Grouping related features thematically
- Using active voice and stronger verbs
- Adding brief explanatory phrases for technical terms
- Creating a more scannable, engaging structure
- Maintaining all technical details while improving readability
Build a Powerful, Instant Communication Network Anywhere
Extend Your Reach with Multi-Hop Mesh Technology
• Communicate over 15–20 km per hop, with high-to-low point distances reaching 50–80 km.
• Supports up to 6 hops, extending total communication range by 5–6 times.
• Connect flexibly—network with multiple base stations or directly with handheld PTT Mesh Radios like the TS1.
Deploy in Seconds When It Matters Most
• In emergencies, every second counts. The BM3 Ad-Hoc Radio Repeater enables push-to-start networking—instantly creating a multi-hop communication system that covers large, non-line-of-sight terrain.
No Infrastructure Needed—Truly Independent
• The BM3 PTT Mesh Radio Base Station forms direct peer-to-peer connections, building temporary ad-hoc networks without relying on IP links, cellular towers, or external infrastructure. Get an operational radio network anytime, anywhere.
Always in Control with Remote Management
• Monitor your entire tactical network in real time from the portable Defensor-T9 Command Dispatch Center. Track battery levels, signal strength, online status, locations, and more—all from one centralized view.
Seamless Compatibility Across Devices
• Every device in the IWAVE Defensor Series—handheld narrowband MESH PTT radios, base stations, and command centers—works together seamlessly to form a long-range, self-organizing, multi-hop tactical network.
Built for Reliability
• Enjoy uninterrupted communication thanks to intelligent path routing. If one connection is blocked or a device goes out of range, the network automatically reroutes data through alternate paths.
Improved for:
- Clarity: Simplified technical phrasing and structured each section around a clear benefit.
- Engagement: Started with a strong headline, used active voice, and emphasized user advantages.
- Flow: Grouped related ideas and added subheadings to improve readability and scannability.
- Impact: Focused on outcomes—speed, independence, control, and reliability—to resonate with users in high-stakes environments.
Overcoming Communication Barriers in Critical Situations
During major incidents, traditional communication networks often fail. Cellular systems can become overloaded, and local towers may go offline. The challenge intensifies when teams operate in demanding environments—underground, in mountains, dense forests, or along remote coastlines—where both cellular and DMR/LMR radio coverage is unavailable. In these high-stakes scenarios, maintaining reliable, real-time communication is not just important—it’s essential.
That’s where Push-to-Talk Mesh Radio comes in.
Unlike systems that depend on external infrastructure such as towers or base stations, PTT Mesh Radio enables teams to quickly establish their own secure, on-demand communication network. By creating an instant, ad hoc voice network, it ensures seamless connectivity where it’s needed most—directly among team members, on the ground, in real time.
Ideal for:
- Military & Security Operations
- Emergency Management & Rescue
- Law Enforcement
- Maritime & Navigation
- Mining & Remote Industrial Activities
When every second counts, and connectivity can’t be left to chance, PTT Mesh Radio keeps teams connected, coordinated, and in control.

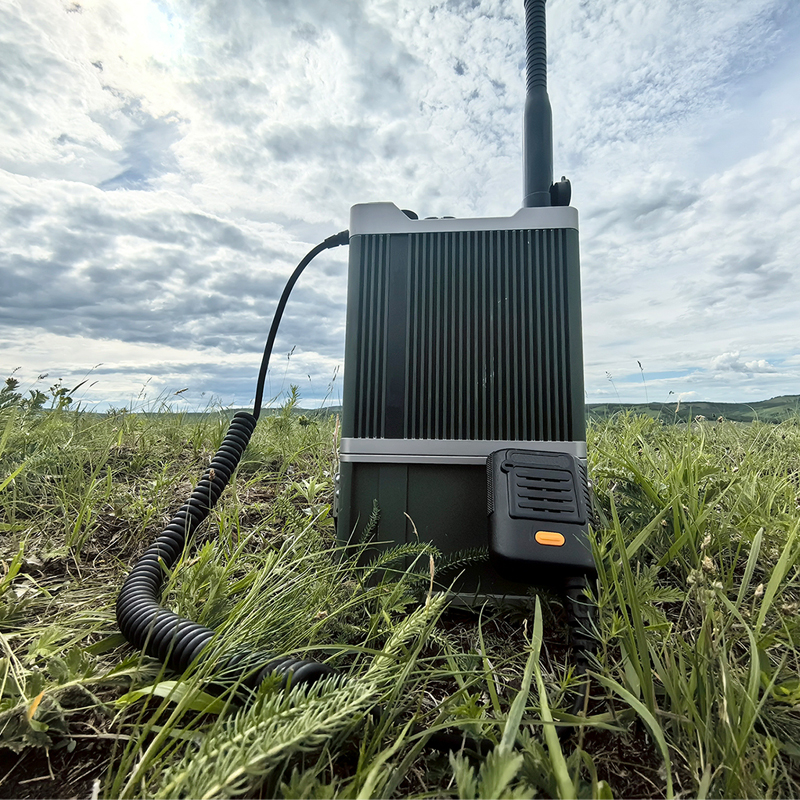

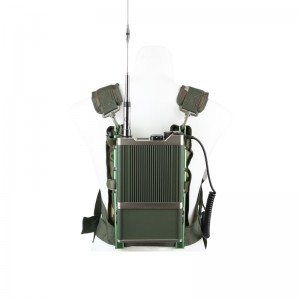

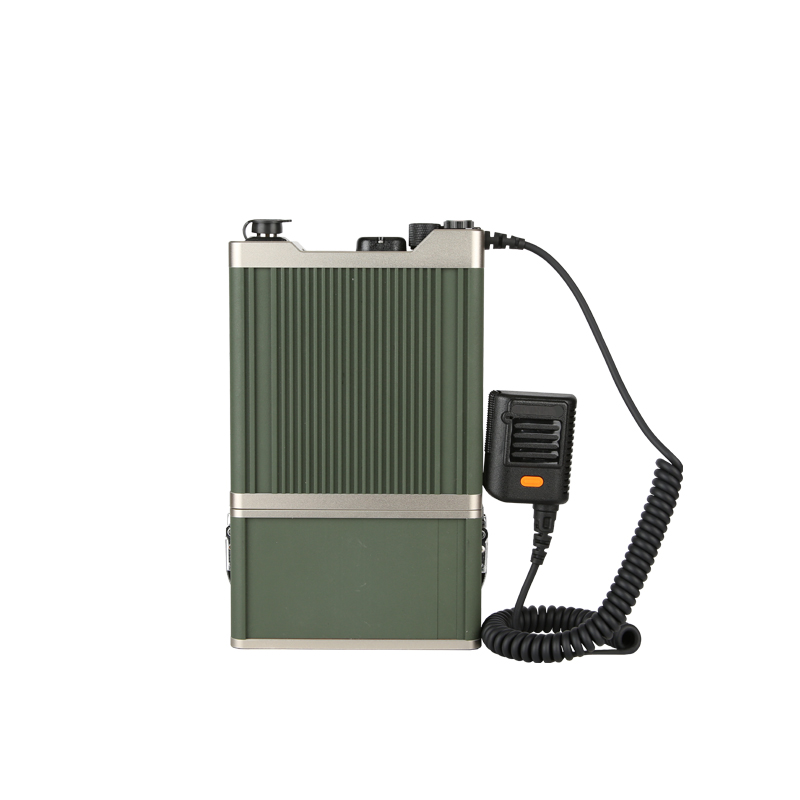

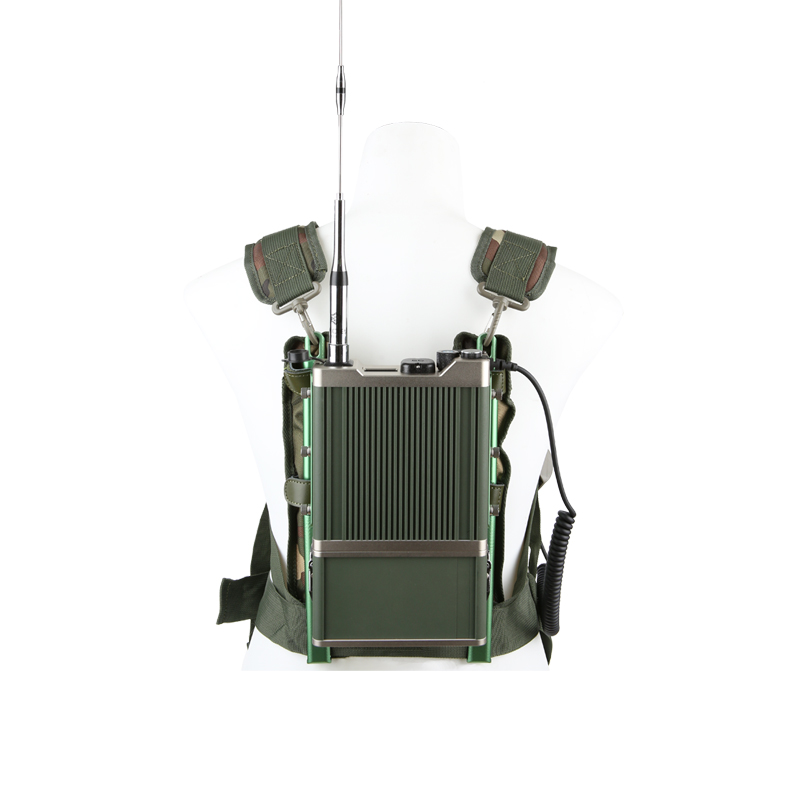

| Manpack PTT MESH Radio Base Station(Defensor-BM3) | |||
| General | Transmitter | ||
| Frequency | VHF: 136-174MHz UHF1: 350-390MHz UHF2: 400-470MHz |
RF Power | 2/5/10/15/20/25W(adjustable by software) |
| Channel Capacity | 300 (10 Zone, each with a maximum of 30 channels) | 4FSK Digital Modulation | 12.5kHz Data Only: 7K60FXD 12.5kHz Data&Voice: 7K60FXE |
| Channel Interval | 12.5khz/25khz | Conducted/Radiated Emission | -36dBm -30dBm>1GHz |
| Operating Voltage | 10.8V | Modulation Limiting | ±2.5kHz @ 12.5 kHz ±5.0kHz @ 25 kHz |
| Frequency Stability | ±1.5ppm | Adjacent Channel Power | 60dB @ 12.5 kHz 70dB @ 25 kHz |
| Antenna Impedance | 50Ω | Audio Response | +1~-3dB |
| Dimension(with battery) | 270*168*51.7mm(without antenna) | Audio Distortion | 5% |
| Weight | 2.8kg/6.173lb | Environment | |
| Battery | 9600mAh Li-ion battery (standard) | Operating Temperature | -20°C ~ +55°C |
| Battery Life with standard battery (5-5-90 Duty Cycle, High TX Power) | 28h(RT, max power) | Storage Temperature | -40°C ~ +85°C |
| Case Material | Aluminum Alloy | ||
| Receiver | GPS | ||
| Sensitivity | -120dBm/BER5% | TTFF(Time To First Fix)cold start | |
| Selectivity | 60dB@12.5KHz 70dB@25KHz |
TTFF (Time To First Fix)hot start | |
| Intermodulation TIA-603 ETSI |
70dB @ (digital) 65dB @ (digital) |
Horizontal Accuracy | |
| Spurious Response Rejection | 70dB(digital) | Positioning Support | GPS/BDS |
| Rated Audio Distortion | 5% | ||
| Audio Response | +1~-3dB | ||
| Conducted Spurious Emission | -57dBm | ||
