China Moneypro IP68 Waterproof Body Worn Camera For IP MESH Network for Video and Voice Communication



Introducing the Cuckoo-P8: Reliable Communication When It Matters Most

When critical situations unfold in areas with little or no cellular coverage, the Cuckoo-P8 seamlessly integrates with the IWAVE tactical mesh network. This ensures uninterrupted live video and audio capture, recording, and transmission—keeping communication clear and continuous when every second counts.

Built on the Android platform, the Cuckoo-P8 enables real-time streaming and recording while supporting comprehensive on-site coordination and law enforcement operations.

In high-pressure scenarios, details can become blurred—for both officers and witnesses. The presence of a body-worn camera often helps prevent conflicts from escalating. And if an incident does occur, the Cuckoo-P8 delivers high-definition video evidence, providing an objective and reliable record of events.

Why it works better:

  • Stronger opening: Starts with a clear product introduction and emphasizes reliability.
  • Active voice & flow: Sentences are more direct and connected.
  • Engaging tone: Language is professional yet compelling, focusing on real-world impact.
  • Improved structure: Separates technical features from operational benefits for easier reading.
  • Polished phrasing: Removes redundancy and awkward wording while keeping all key information.



Category:
Description




Enhanced Night Vision

Equipped with an infrared camera that automatically activates in low light, featuring dual high-power infrared LEDs for exceptional clarity: – 15m range: Clearly distinguish human outlines. – 5m range: Illuminate approximately 70% of the field of view.

IP MESH Network Connectivity

When cellular networks (4G/5G) are unavailable, the Cuckoo-P8 seamlessly integrates with IWAVE IP MESH systems, ensuring continuous operation for critical surveillance and evidence capture.

Ample Storage & Memory

– 32GB TF card included (expandable up to 256GB) – 1GB RAM for smooth performance – Store 10+ hours of continuous video or 3,000 high-resolution photos (8MP)

Extended Battery Life

– Up to 100 hours on standby – 4 hours of continuous recording – Full recharge in just 120 minutes

Rugged & Reliable Design

– IP68 waterproof (submersible up to 1m for 60 minutes) – Drop-resistant from up to 2 meters – Supports efficient H.265 video encoding for high-quality, compact files

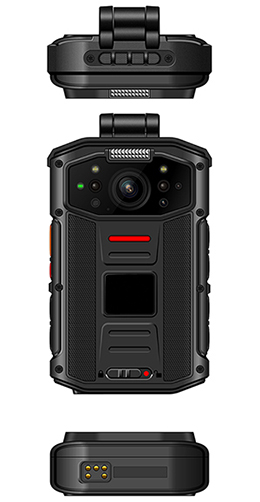

Bodyworn Camera-01




Advanced Connectivity & Security Features Cuckoo-P8 offers GPS, Wi-Fi, and Bluetooth connectivity, with all video feeds secured by AES256 encryption. Tactical Body Camera System This police body camera integrates seamlessly with the IWAVE tactical IP MESH network, enabling real-time video and audio capture, recording, and transmission—even in areas without 3G/4G coverage. Designed for law enforcement, it is used to document interactions with the public and collect critical evidence at crime scenes.

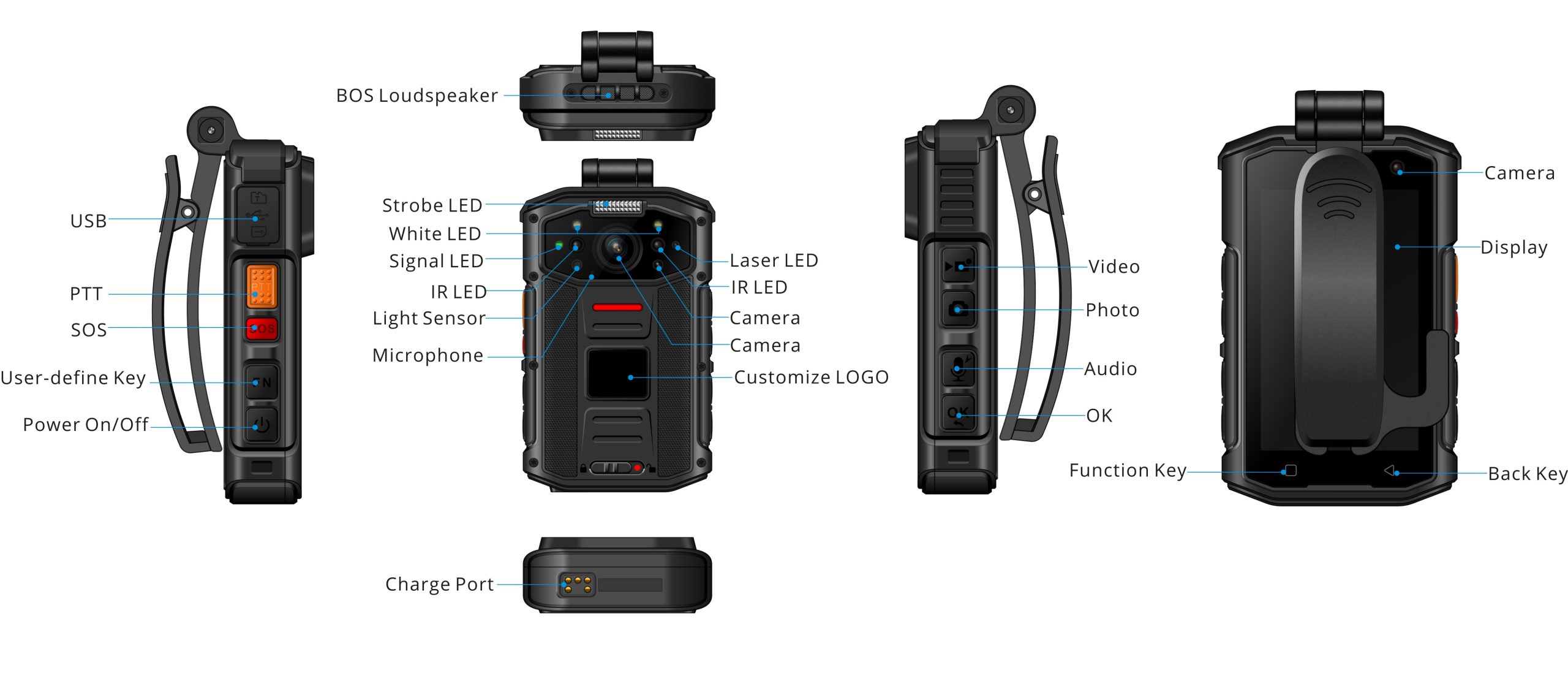

police camera


Advanced Body-Worn Camera & Mesh Communication System

Body-Worn Camera

  • Rugged & Reliable: IP68 waterproof rating for all-weather operation
  • Seamless Connectivity: Wirelessly syncs with handheld mesh units via Wi-Fi
  • High-Definition Recording: Stores HD video locally on a TF card (32GB or 128GB included)
  • Instant Communication: Push-to-talk functionality with all operators in the mesh network
  • Precise Location Tracking: Supports GPS, Galileo, and GLONASS systems
  • Enhanced Visibility: Equipped with infrared (IR) capability for low-light environments

Handheld IP Mesh Device

  • Durable Design: IP65-rated for dust and water resistance
  • Universal Connectivity: Wirelessly links body-worn cameras, tablets, PCs, and mobile devices
  • Integrated GPS: Built-in positioning for real-time location tracking
  • Optimized Performance: Ideal for non-line-of-sight (NLOS) wireless video transmission
  • Secure Communication: Protected by AES 256 encryption
  • Resilient Networking: Creates a self-healing MIMO mesh network for uninterrupted operations

Command Center (HQ)

  • Extended Range: Installs a 10W mesh unit to communicate with vehicle-mounted mesh boxes
  • Live Monitoring: Use our software to view real-time video feeds from every body-worn camera
  • Direct Communication: Instantly talk to operators in the field
  • Complete Situational Awareness: Monitor the live location of all personnel on a single dashboard

Improved with:

  • Clear categorization and consistent formatting
  • Engaging subheadings and descriptive bullet points
  • Active voice and benefit-focused language
  • Professional tone suitable for technical or security audiences
  • Logical flow from field equipment to command center capabilities

Let me know if you’d like this tailored for a specific use case like a product sheet, proposal, or marketing material.

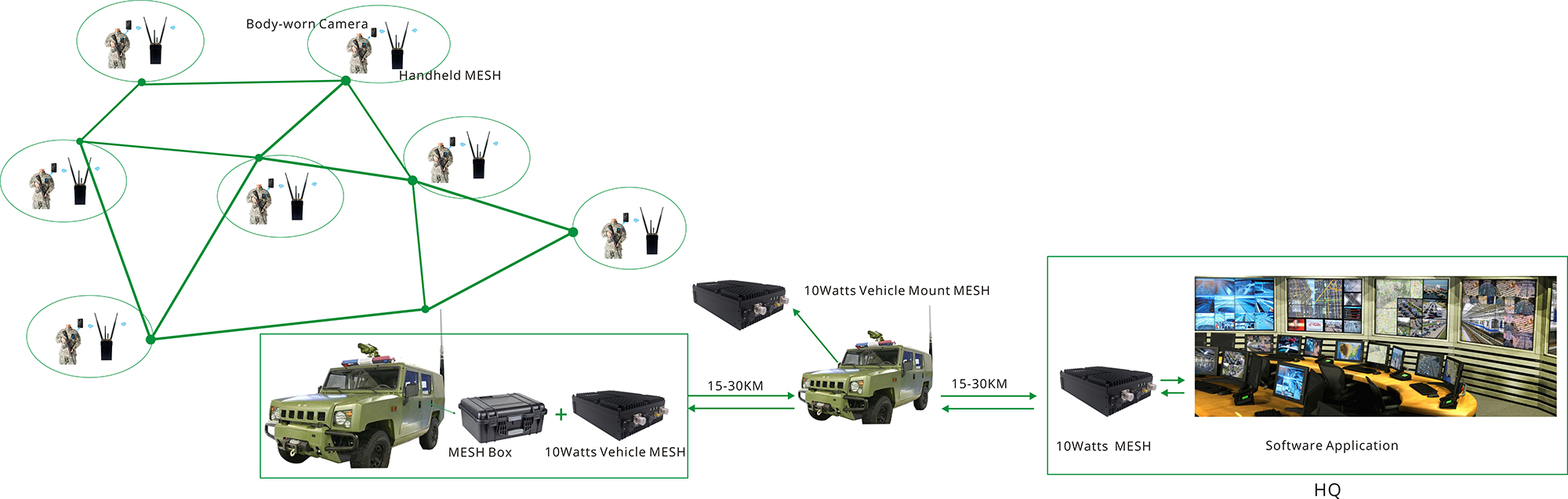

MESH SOLUTION


Specifications

Hardware CPU Octa-core 64bit(2.3Ghz)
RAM 2+16GB
Reliability IP Grade IP68(1meters underwater for 60minutes) IEC60529 standard
Anti-fall height 2meters
Structure Dimension 96*60*20.5mm
Weight 160g
Keys 7 keys on both sidePush to photo
●Push to video record
●Push to audio record, etc.
●PTT
●Power
●SOS
●Ok
Display Display 3.1inch screen (IPS, supporting glove mode)
Touch Screen Multi-point capacitive touch screen
Angle The horizontal angle of the camera lens>100°
Video Video Definition:
3840*2160/30FPS，1920*1080/30FPS
1920*1080/60FPS，1280*720/30FPS
1280*720/60FPS，640*480/30FPS
Video record ●Color video record
●4K Video
Video format MP4
Video Input Support external USB camera
Photo format ●Max output pixel≥16 million,
●Actual effective pixel: 4608*3456
●saved in JPG file format
Audio PTT ●Push to Talk
●Supports group call, individual call and Temporary group talk
Gravity sensor After collision or landing, acceleration sensor can be triggered to open automatic video recording
Shutter Electronic Shutter
IR ●Automatic IR Light on/off
●Clear contour within 15 meters
White balance Yes
Flashlight Yes
Laser positioning Yes
Ambient light detection Built-in ambient light detection chip, automatically switch infrared night vision
Photo 8MP, 13MP, 32MP, 42MP
Positioning Satellite positioning ●Support GPS, Beidou and GLONASS systems
●Electronic fence, track record and query function
Wireless 3G/4G real time transmitting ●GSM:
Band3(UL: 1710-1785M, DL: 1805-1880Mhz)
Band8(UL: 880-915Mhz, DL: 925-960Mhz)
●CDMA/CDMA2000: 870Mhz
●WCDMA:
Band8: (UL: 880-915Mhz, DL: 925-960Mhz)
Band1: (UL: 1920-1980Mhz, DL: 2110-2170Mhz)
●TD-SCDMA:
band34/band39
Band34: (2010-2025Mhz)
Band39: (1880-1920Mhz)
●TD-LTE: B38/39/40/41
Band38: 2570Mhz-2620Mhz
Band39: 1880Mhz-1920Mhz
Band40: 2300Mhz-2400Mhz
Band41: 2496Mhz-2690Mhz
●FDD-LTE: B1/B3/B5/B8
Band1: (UL: 1920-1980Mhz, DL: 2110-2170Mhz)
Band3: (UL: 1710-1785M, DL: 1805-1880Mhz)
Band5: (UL:824-849Mhz, DL:869-894Mhz)
Band8:(UL: 880-915Mhz, DL: 925-960Mhz)
WIFI 802.11b/g/n
Bluetooth 4.1
NFC NFC(Option)
Data Port Mini USB 2.0
Charge 5V/1.5A Supercharge (Full battery within 2hours)
T Card Yes ((Double T card or safety chip)(On request)
Battery Replaceable battery 4.35V/3050mAh
Built-in battery When users replace the main battery, the built-in battery will keep the camera continuous working for 5min.
Storage ●Default built-in 32G TF card.
●Support continuous recording for 10 hours, and simultaneously storage of 3000 photos (8 million pixel)
●Run memory 1GB, support TF card expansion up to 256GB
Speaker High-power speaker for loud and clear voice
Operate System Android 7.1
