The T6D isn’t just a two-way radio—it’s a complete dispatch command center. Built on the IWAVE platform, it combines powerful hardware with intuitive software, delivering advanced capabilities without complex setup or extra hardware.
Key Dispatch & Command Features:
- Private & Group Calling – Instant communication with individuals or teams.
- Real-Time Location Tracking – View mobile terminal and base station locations on screen.
- Status Monitoring – Check battery levels and radio status at a glance.
- Full Messaging Suite – Send and receive SMS, record calls, and manage dispatch interactions seamlessly.
Easy Connectivity & Operation:

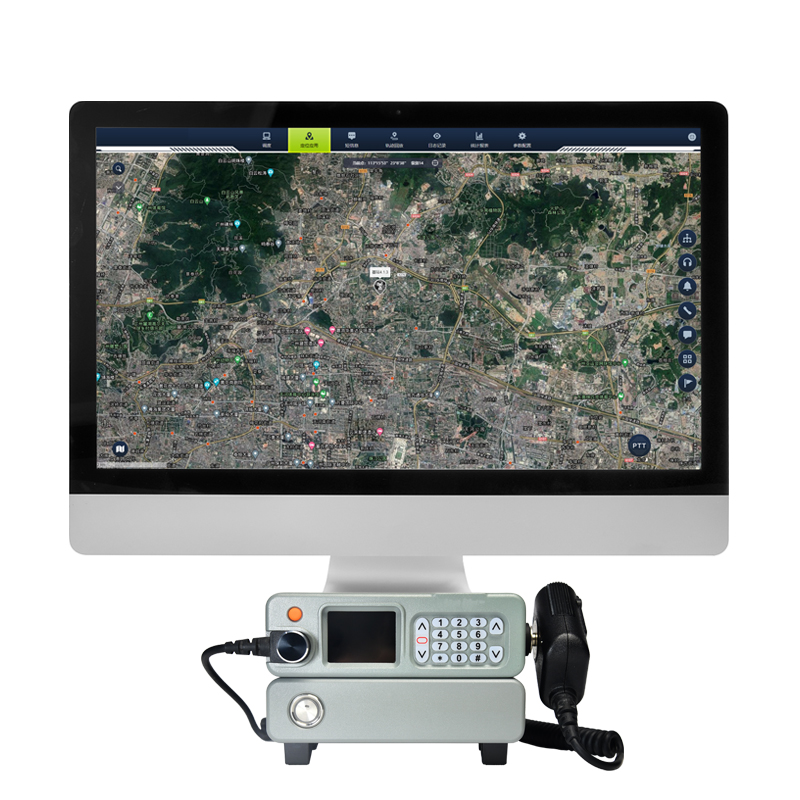

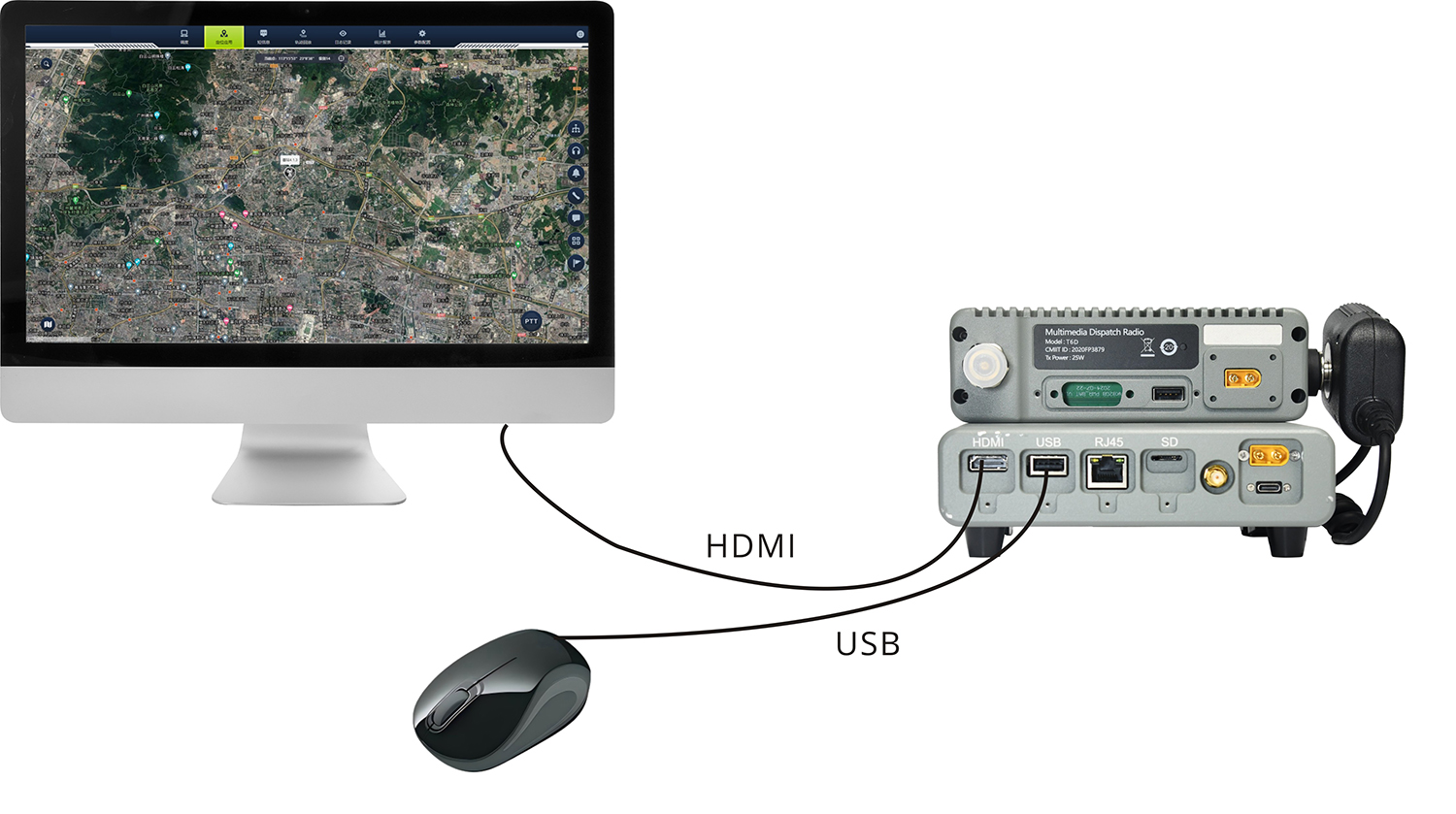

- HDMI Output – Display live data on a large monitor for clear, real-time oversight.
- Wi-Fi Hotspot – Let computers, phones, or tablets connect wirelessly to the T6D dispatch platform.
- Ethernet Port – Ensure a stable, wired connection for desktop login.
- Mouse & Keyboard Ready – Designed for smooth, efficient dispatcher control.
Feature-rich yet simple to use, the T6D puts professional-grade command and dispatch capability right at your fingertips.

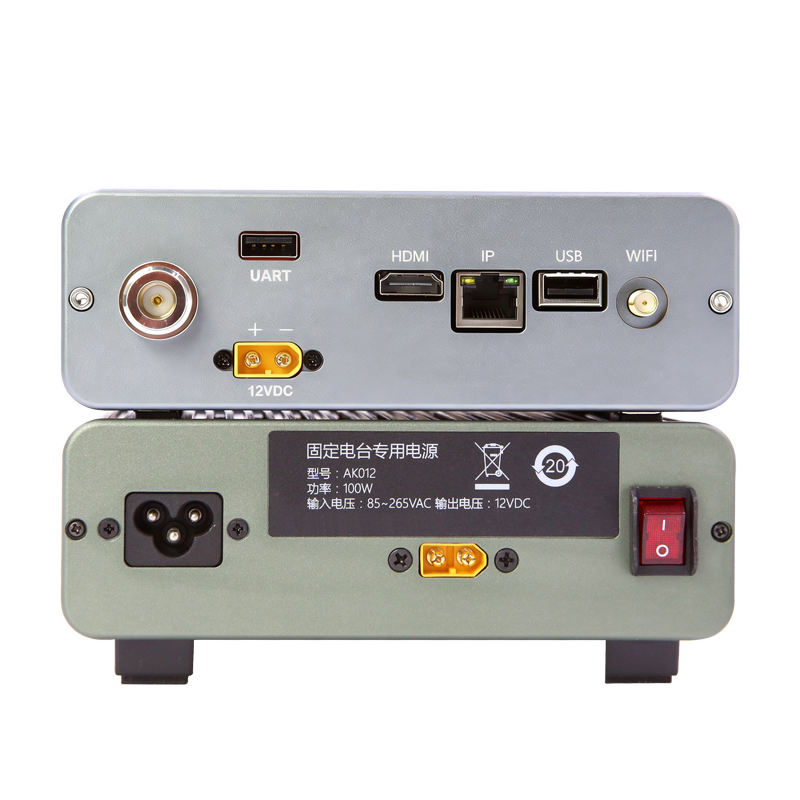

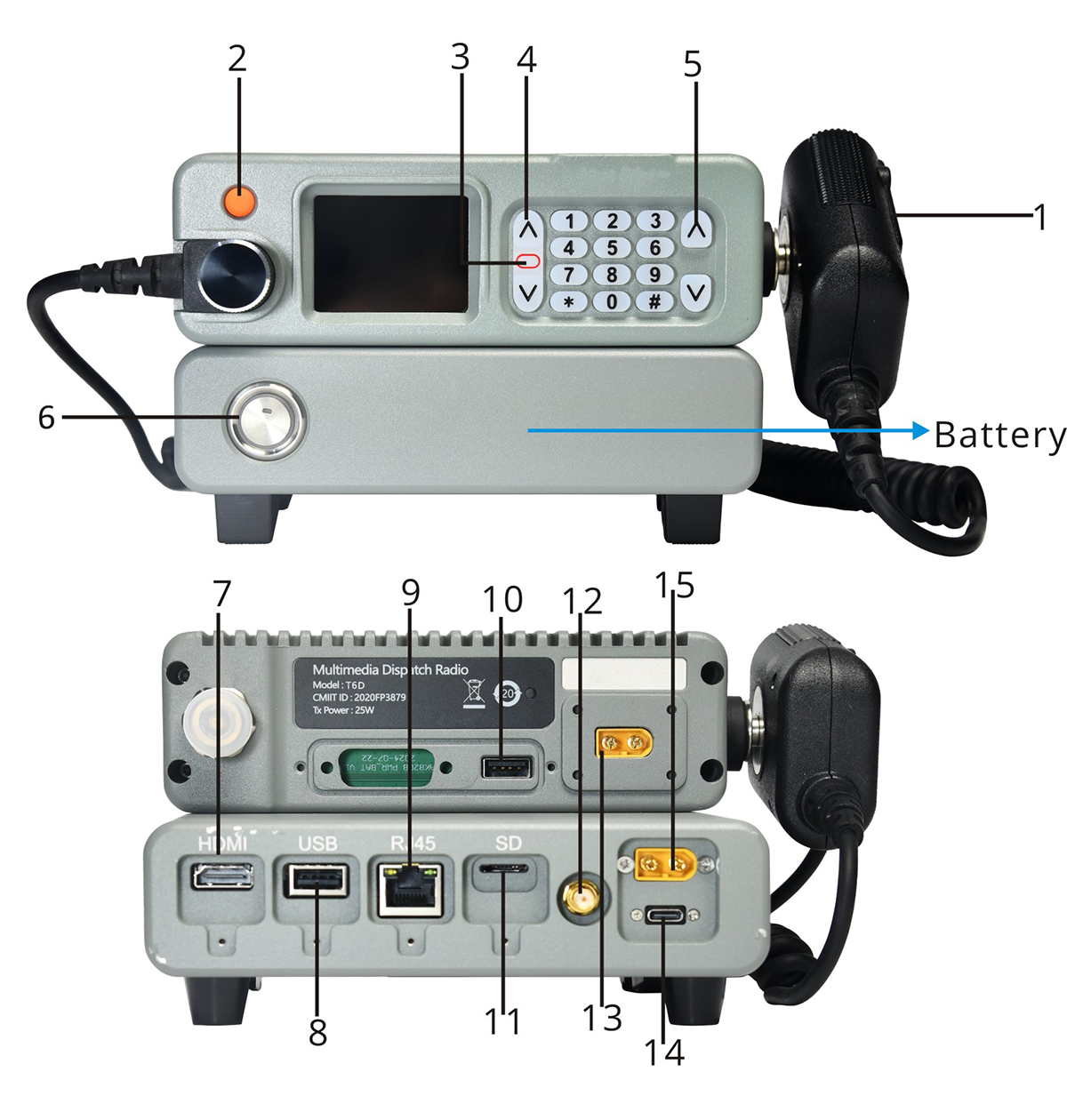

| 1 | PTT Key |
| 2 | Emergency Call |
| 3 | ON/OFF Key |
| 4 | Change Group/Channel |
| 5 | Volume Key |
| 6 | ON/OFF |

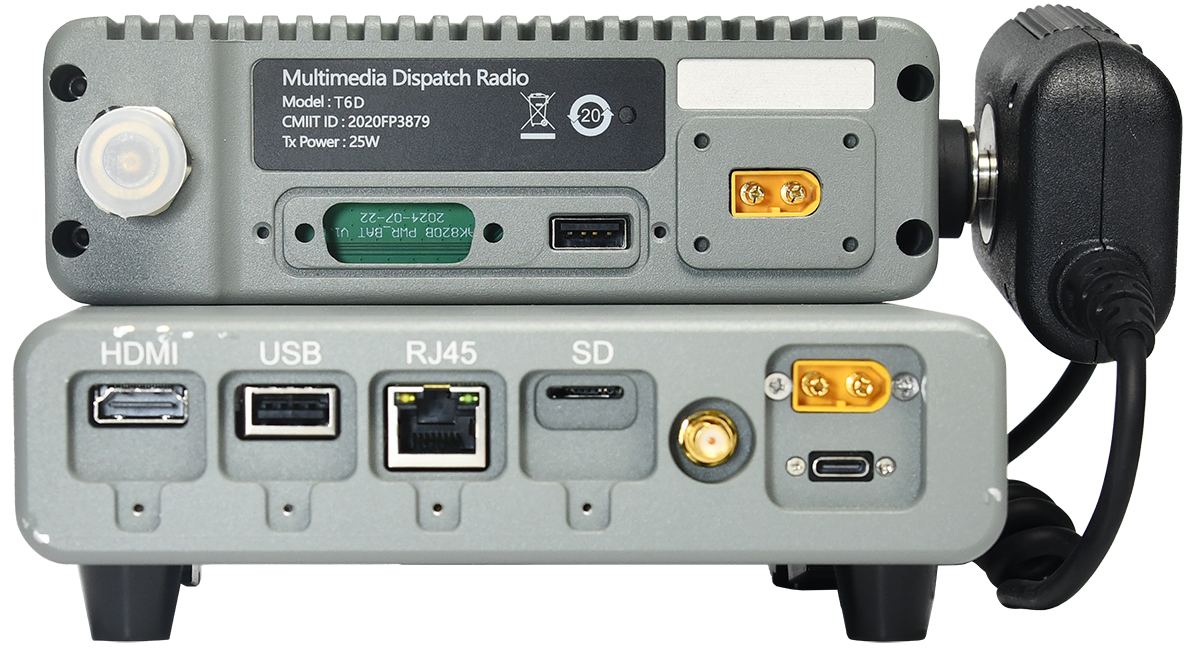

| 7 | HDMI Port |
| 8 | Keyboard/Mouse Port |
| 9 | IP Port |
| 10 | UART Port |
| 11 | SD Card slot |
| 12 | WIFI Antenna Port |
| 13 | DC12V Input |
| 14 | DC12V Output |
Enhanced Version:
The T6D is a versatile solution for building robust emergency communication command and dispatch systems, ideal for disaster response and rescue operations.
Key Applications:

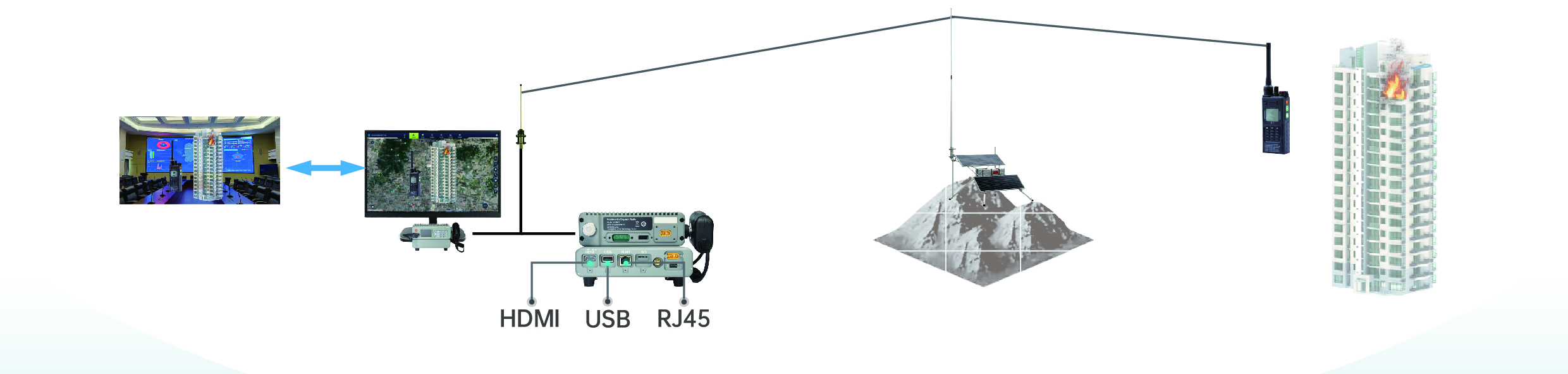

- Rapid On-Site Deployment
In remote or challenging environments—such as mountainous regions without public network coverage—the T6D quickly establishes resilient self-organizing wireless networks. By deploying solar-powered base stations and handheld terminals, it ensures seamless, real-time communication between field personnel and the command center. - Centralized Command & Visualization
At the command center, the T6D connects directly to dispatch displays via HDMI, USB, and RJ45 interfaces. This enables clear visualization of terminal locations, live situational data, and operational progress—allowing commanders to monitor and direct rescue efforts with precision. - Seamless Multi-Level Coordination
The system supports integration with large-screen displays and facilitates cross-level, cross-regional collaboration. It ensures efficient transmission of instructions, real-time data exchange, and coordinated resource allocation—delivering stable, reliable communication support for critical emergency scenarios.
Why this version works better:
- Clearer structure – Uses headings and bullet points to improve readability.
- Stronger opening – Starts with a concise, benefit-focused statement.
- Active voice – Replaces passive phrasing for more direct engagement.
- Enhanced flow – Each section logically builds from field deployment to command coordination.
- Engaging language – Words like versatile, robust, seamless, and precision add impact while maintaining professionalism.
Let me know if you’d like this tailored further for a specific audience, such as technical buyers, government agencies, or marketing materials.
| Frequency Ranges | VHF: 136-174MHz /UHF1: 350-390MHz /UHF2: 400-470MHz |
| Channel Capacity | 300(10 Zone,each with a maximum of 30 channels) |
| Channel Spacing | Digital:12.5kHz |
| Operating Voltage | 12V±15％(rated) |
| Battery Life with standard battery (5-5-90 Duty Cycle, High TX Power) | 28h(RT, max power) |
| Frequency Stability | ±1.5ppm |
| Antenna Impedance | 50Ω |
| Dimensions (H*W*D) | 65.5*159*166.5mmwith LiIon Battery, without antenna |
| Weight | 1500g/3.3lb |
| Front case | Aluminum Alloy |
| Transmitter | |
| RF Power Output | 25W(2/5/10/15/20/25W selectable) |
| 4FSK Digital Modulation | 12.5kHz Data Only: 7K60FXD 12.5kHz Data & Voice: 7K60FXE |
| Conducted/Radiated Emission | -36dBm -30dBm>1GHz |
| Modulation Limiting | ±2.5kHz @ 12.5 kHz ±5.0kHz @ 25 kHz |
| Adjacent Channel Power | 60dB @ 12.5 kHz 70dB @ 25 kHz |
| Audio Response | +1~-3dB |
| Audio Distortion | 0.05 |
| Receiver | |
| Sensitivity | -120dBm/BER5% |
| Selectivity | 60dB@12.5KHz / Digital |
| Intermodulation TIA-603 ETSI |
70dB @ (digital) 65dB @ (digital) |
| Spurious Response Rejection | 70dB (digital) |
| Rated Audio Distortion | 0.05 |
| Audio Response | +1~-3dB |
| Conducted Spurious Emission | -57 dBm |
