Powerful Features for Seamless Connectivity
- Flexible Network Integration – Transparent IP design allows easy connection with other IP-based systems.
- Versatile Mounting – Install inside or outside any mobile asset.
- High-Speed Performance – Enjoy up to 30Mbps throughput for smooth data and video transmission.
- Scalable Design – Expand your network to support 8, 16, or 32 nodes as needed.
- Multiple Frequency Bands – Choose from 800MHz, 1.4GHz, or 2.4GHz to suit your environment.
- Adaptable Deployment – Supports mesh, star, chained, or hybrid network configurations.
- Advanced Security – AES128/256 encryption protects your video and data from unauthorized access.
- Real-Time Network Visualization – Web UI displays live topology of all connected nodes.
- Self-Healing Mesh – Fluid, optimized performance for mobile applications with automatic recovery.
- Superior Range & NLOS Capability – Strong signal even in Non-Line-of-Sight conditions.

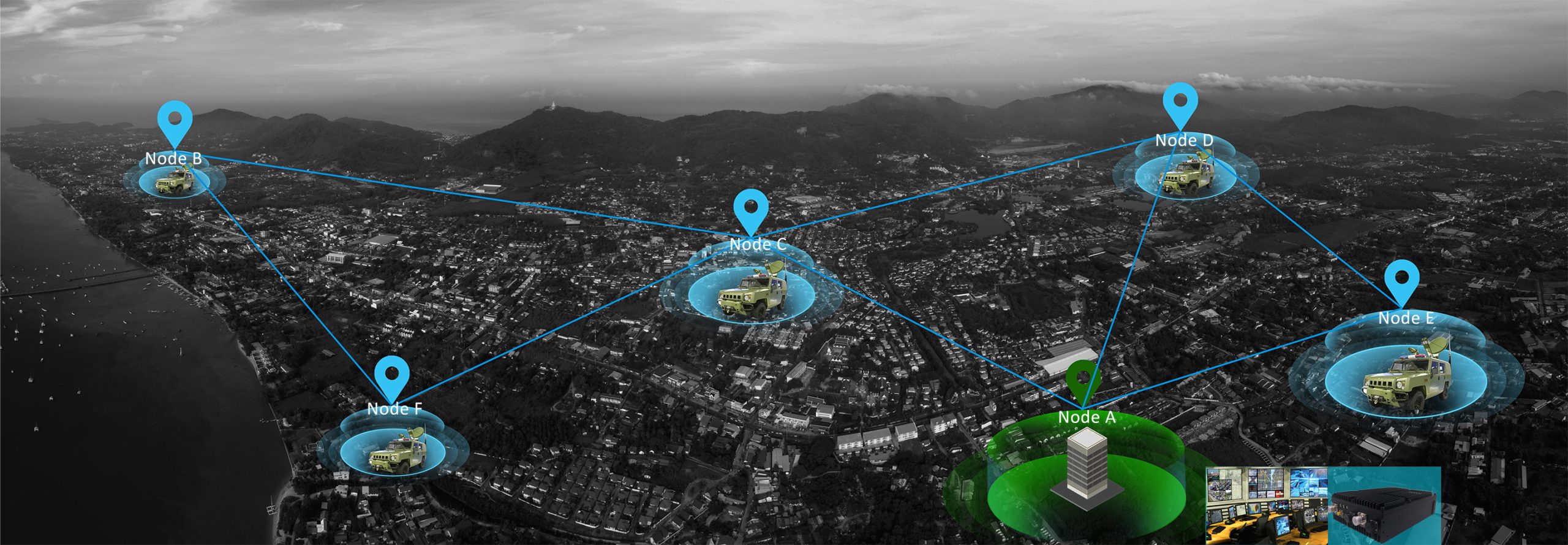

- Strategic Placement – Deploy the FD-615VT on high ground or buildings as an aggregation node or relay for wider coverage.
- Rapid, Self-Forming Setup – Easily add or remove nodes for quick network expansion.
- Adaptive Modulation – Automatically adjusts to ensure smooth video and data traffic in motion.
- Dynamic Routing – Devices can be moved randomly; the system updates topology in real time.
Made with ❤️ by Breebs
Your go-to for clear, engaging, and structured content.
Frequency-Hopping Spread Spectrum (FHSS)
IWAVE’s IP MESH products feature a proprietary frequency-hopping algorithm that continuously monitors link quality—including signal strength (RSRP), signal-to-noise ratio (SNR), and bit error rate (SER). When conditions meet predefined thresholds, the system automatically hops to an optimal frequency from its available list. Frequency hopping occurs only when necessary, ensuring stable performance in varying wireless environments.
Automatic Frequency Point Control
On startup, the device first attempts to establish a network using the last-used frequency points. If those are unavailable or unsuitable, it seamlessly scans and switches to other available frequencies to ensure reliable network deployment.
Automatic Power Control
Each node dynamically adjusts its transmission power based on real-time signal quality, optimizing performance and efficiency across the network.
Improved for clarity and engagement by:
- Using active voice and stronger verbs
- Removing redundancy and simplifying sentence structure
- Grouping related ideas for better flow
- Enhancing readability with clear, concise phrasing

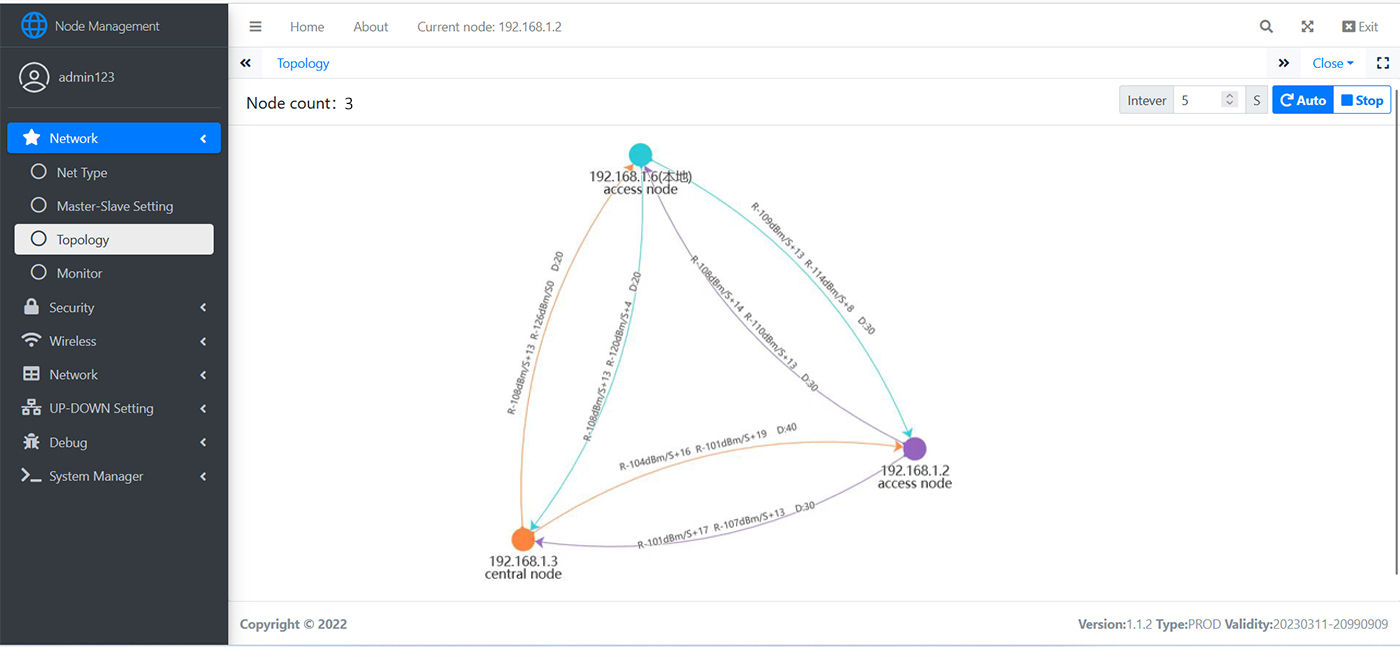

MESH Network Management Software
Our IWAVE MESH network management platform gives you complete visibility and control over your entire network in real time.
- Real-Time Network Overview – Instantly view the topology, signal strength (RSRP), SNR, distance, IP addresses, and other key details for every node.
- Accessible Anywhere – A web-based interface lets you securely log in from any location using a standard web browser.
- Full Configuration Control – Customize your network settings to match your needs:
- Working frequency & bandwidth
- IP addressing & dynamic topology
- Real-time distance monitoring
- Algorithm settings
- Uplink/downlink frame ratio
- AT command support
Take command of your MESH network—anytime, anywhere.
Enhanced Version:
The FD-615VT is a versatile communication system designed for flexible deployment in both urban and rural environments. It functions effectively as either a mobile or fixed-site solution across terrestrial, airborne, and maritime applications.
Ideal for a wide range of uses, including:
- Border surveillance and security operations
- Mining and remote resource extraction sites
- Offshore oil and gas communications
- Urban backup and emergency communication networks
- Private and secure microwave networks
Built to perform reliably anywhere, the FD-615VT ensures connectivity when and where it matters most.
Why this version works better:
- Clearer structure – Separates description from application examples
- Active voice – Uses stronger, more engaging language
- Bulleted list – Improves readability and scannability
- Added context – Briefly highlights reliability and versatility
- Removed redundancy – Streamlines technical phrasing while keeping all key information
| GENERAL | |||
| TECHNOLOGY | MESH base on TD-LTE Wireless technology standard | ||
| ENCRYPTION | ZUC/SNOW3G/AES(128/256) OptionalLayer-2 | ||
| DATE RATE | 30Mbps(Uplink and Downlink) | ||
| RANGE | 5km-10km(nlos ground to ground) (depends on the actual environment) | ||
| CAPACITY | 32nodes | ||
| MIMO | 2×2 MIMO | ||
| POWER | 10watts/20watts | ||
| LATENCY | One Hop Transmission≤30ms | ||
| MODULATION | QPSK, 16QAM, 64QAM | ||
| ANTI-JAM | Automatically Cross-Band frequency hopping | ||
| BANDWIDTH | 1.4Mhz/3Mhz/5Mhz/10MHz/20MHz | ||
| POWER CONSUMPTION | 30Watts | ||
| POWER INPUT | DC28V | ||
| SENSITIVITY | |||
| 2.4GHZ | 20MHZ | -99dBm | |
| 10MHZ | -103dBm | ||
| 5MHZ | -104dBm | ||
| 3MHZ | -106dBm | ||
| 1.4GHZ | 20MHZ | -100dBm | |
| 10MHZ | -103dBm | ||
| 5MHZ | -104dBm | ||
| 3MHZ | -106dBm | ||
| 800MHZ | 20MHZ | -100dBm | |
| 10MHZ | -103dBm | ||
| 5MHZ | -104dBm | ||
| 3MHZ | -106dBm | ||
| FREQUENCY BAND | |||
| 2.4Ghz | 2401.5-2481.5 MHz | ||
| 1.4Ghz | 1427.9-1447.9MHz | ||
| 800Mhz | 806-826 MHz | ||
| MECHANICAL | |||
| Temperature | -20℃~+55℃ | ||
| Weight | 8kg | ||
| Dimension | 30×25×8cm | ||
| MATERIAL | Anodized Aluminum | ||
| MOUNTING | Vehicle-mounted | ||
| Stability | MTBF≥10000hr | ||

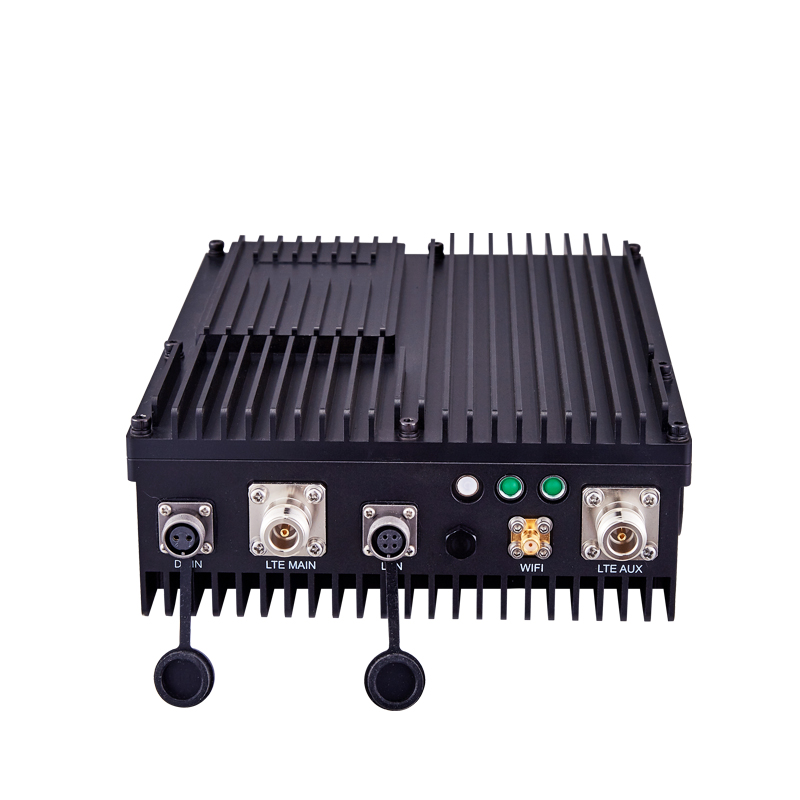

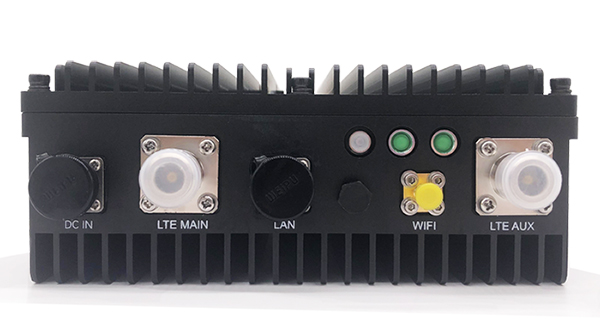

| INTERFACES | |||
| RF | 2 x N Type Connector1x SMA for Wifi | ||
| ETHERNET | 1 x LAN | ||
| PWER INPUT | 1 x DC Input | ||
| TTL Data | 1 x Serial Port | ||
| Debug | 1 x USB | ||
