Unleashing the Power of the MOPGT35: A Professional-Grade Gasoline Engine
China Moneypro has long been synonymous with high-quality gasoline engines, and the MOPGT35 stands as a testament to their engineering excellence. Designed specifically for RC enthusiasts, this two-stroke gasoline engine combines compact construction with an attractive appearance and stable performance that delivers substantial power. Whether you are flying a 120-180 level RC aircraft or a model with a takeoff weight of 8-10 kilograms, the MOPGT35 offers the ideal power configuration. Its installation size matches that of a 180 glow engine, yet its output power is completely comparable to that standard. The engine uses a CM6 spark plug and is built for reliability. For those ready to elevate their RC experience, the MOPGT35 is a remarkable choice.
Key Specifications of the MOPGT35 Engine
To fully appreciate the MOPGT35, it is essential to understand its technical parameters. Below is a detailed breakdown of its specifications, presented for clarity and precision.
| Parameter | Value |
|---|---|
| Displacement | 34.96cc |
| Bore | 37.3mm |
| Stroke | 32mm |
| Practical Speed Range | 1500-8000 rpm |
| Output Power | 4.2 HP / 8800 rpm |
| Tensile Force | 8.9 kg |
| Engine Weight | 1150 g |
| Muffler Weight | 140 g |
| Igniter Weight | 100 g |
| Ignition Power | DC6V – 14.4V, 1000 mAh |
| Recommended Propeller | 18×10, 19×8-10, 20×8 (Two-blades) |
| Fuel | 92# unleaded petrol + fully synthetic 2T lubricants |
| Lubrication Ratio | Gasoline : Lubricant = 35:1 |
Professional-Grade Gasoline Engine Design Philosophy
This professional-grade gasoline engine is not just about raw numbers; it is about thoughtful engineering that enhances every flight. The MOPGT35 features a front carburetor that leverages propeller pressure to increase air intake, boosting power output. This design also avoids interference from firewalls during RC aircraft installation, simplifying the mounting process. The engine benefits from an integral bronze connecting rod. After complete running-in, this component offers superior durability and wear resistance, far exceeding standard high-quality needle roller connecting rods. This ensures long-term reliability under demanding conditions.
Advanced Materials and Manufacturing Precision
The MOPGT35 incorporates cutting-edge materials to optimize performance. The cylinder liner is crafted from wear-resistant nodular cast iron, with a bore tolerance within 0.01 mm. This precision is significantly higher than the 0.03 mm roundness tolerance of aluminum alloy chrome-plated cylinder liners commonly found in other engines. Additionally, aluminum alloy plating chromium cylinder liners often fail to meet EU environmental regulations, whereas the MOPGT35 avoids such issues entirely. The engine intake system uses a crankshaft intake mode, which provides more accurate opening and closing times than reed valve intake systems. Reed valves suffer from spring delay and variability in crankcase negative pressure, leading to less precise intake timing.
Enhanced Stability with Patented Components

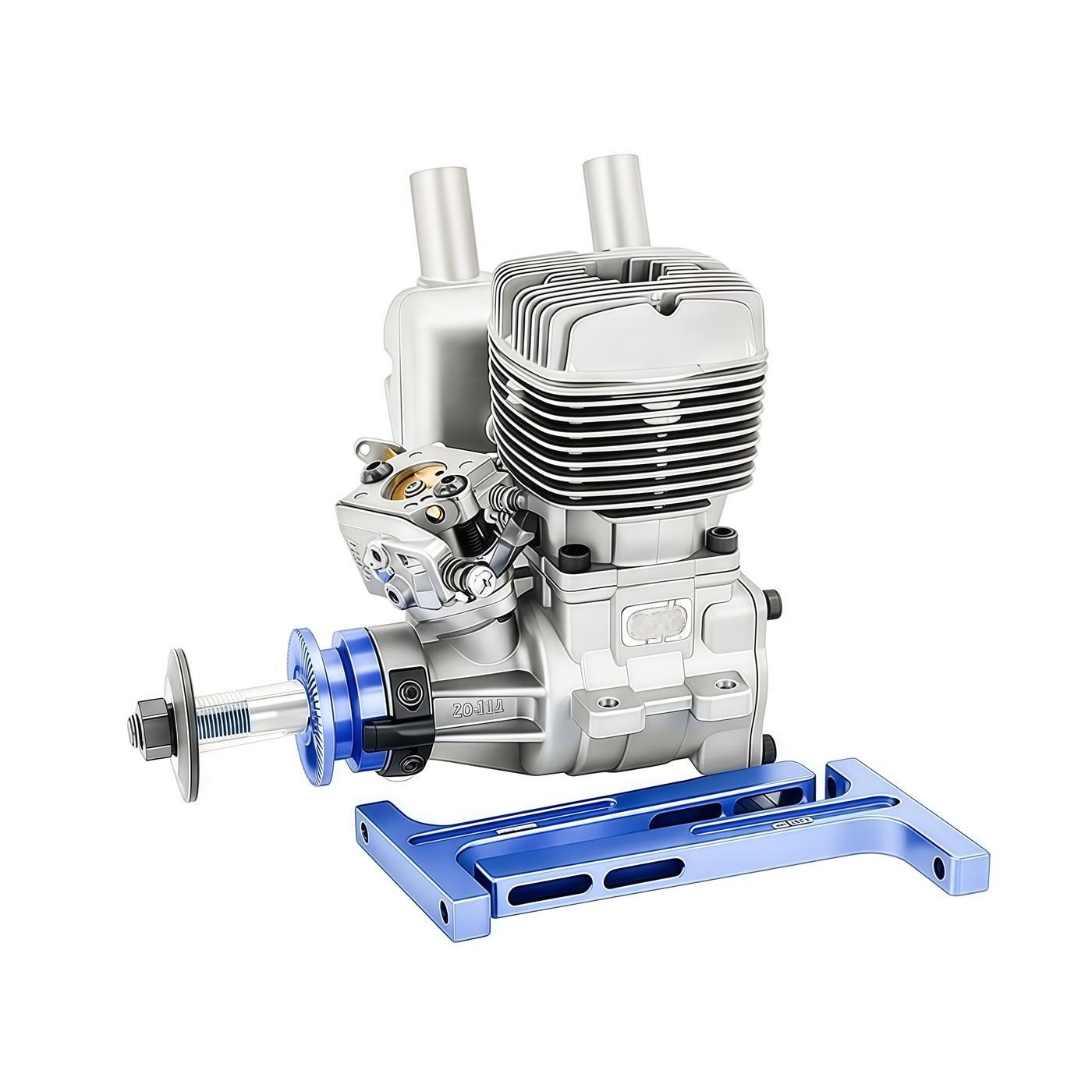

China Moneypro includes its patented double-outlet exhaust muffler as standard equipment. This design ensures smoother exhaust flow, a deeper sound, and more powerful performance. The muffler is complemented by a CNC-carved and anodized adjustable-length T-engine mounting frame. This frame enhances installation stability, reduces vibration, and allows for fine-tuning to match specific RC aircraft configurations. For those seeking even quieter operation, an optional surround exhaust pipe is available, which effectively reduces noise and remains highly praised among European and American RC enthusiasts.
Additional Features of the MOPGT35
The MOPGT35 is packed with thoughtful features that elevate its status as a professional-grade gasoline engine. These include a single-nut output shaft for flexible propeller selection, double needle roller bearings, and a CNC-carved connecting rod. The RCEXL automatic ignition system, developed specifically for China Moneypro, ensures reliable starts and consistent spark timing. The engine uses an RCEXL CM6 spark plug and high-quality bearings throughout. With a Walbro carburetor in front, operation is reliable, and debugging remains simple, even for hobbyists who prefer straightforward maintenance.
In summary, the MOPGT35 is more than just a gasoline engine; it is a meticulously engineered component for RC enthusiasts who demand the best. Its combination of compact size, robust power, and advanced materials ensures stable performance across various applications. From its precision-crafted cylinder liner to its patented exhaust system, every detail contributes to an unparalleled flying experience. When you choose the MOPGT35, you are investing in a professional-grade gasoline engine that sets a new standard for reliability and performance. Upgrade your RC aircraft today and feel the difference that true engineering makes.
