High-Performance 2.4GHz Directional Antenna for Reliable Wireless Connectivity
n

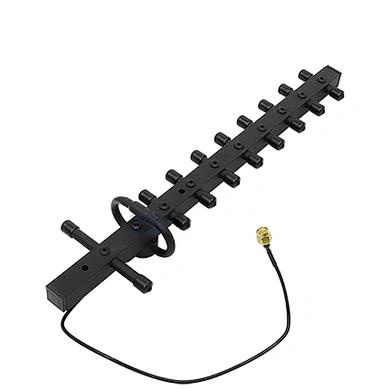

In the world of wireless communications, antenna performance can make or break your network’s reliability. The MOP-DYA-2.4G is engineered to deliver exceptional results for 2.4GHz applications, whether you’re extending Wi-Fi coverage, establishing point-to-point links, or strengthening industrial connections. This antenna combines robust construction with precise electrical characteristics to ensure consistent, high-quality signal transmission.
n
Understanding the technical specifications is crucial for selecting the right antenna. The MOP-DYA-2.4G offers a focused beam pattern that concentrates energy in a specific direction, reducing interference and enhancing signal strength where it matters most. Its vertical polarization aligns with standard wireless access points and devices, ensuring seamless integration into existing systems. The unit’s low Voltage Standing Wave Ratio (VSWR) minimizes signal reflection, maximizing power transfer from the transmitter to the antenna.
n
Durability is another hallmark of this design. Built to withstand harsh environmental conditions, the antenna features a rugged aluminum reflector and an ABS radome that protects internal components from moisture, UV radiation, and temperature extremes. The included mounting hardware accommodates poles from 35mm to 50mm in diameter, allowing flexible installation on walls, masts, or towers. With a rated wind velocity of 60 m/s, the MOP-DYA-2.4G remains stable even in strong gusts, making it suitable for outdoor deployments.
n
Key Electrical Specifications of the MOP-DYA-2.4G
n
| Parameter | Value |
|---|---|
| Model No. | MOP-DYA-2.4G |
| Frequency Range | 2400-2500 MHz |
| Gain | 10±1 dBi |
| Polarization | Vertical |
| VSWR | ≤1.5 |
| Front to Back Ratio | ≥15 dB |
| Maximum Input Power | 50 W |
| Impedance | 50 Ω |
| Lightning Protection | DC Ground |
n
Mechanical and Environmental Specifications
n
| Parameter | Value |
|---|---|
| Connector Type | SMA Male |
| Dimensions | Cable RG58/U, 300mm length |
| Effective Wind Area | ≤0.2 m² |
| Rated Wind Velocity | 60 m/s |
| Reflector Material | Aluminum |
| Radome Material | ABS |
| Operating Temperature | -40°C to +90°C |
| Mounting Hardware | φ35～φ50 mm |
n
The MOP-DYA-2.4G is designed to deliver consistent performance across its specified frequency range. Its 10 dBi gain provides a significant boost over standard omni-directional antennas, enabling longer transmission distances and improved signal penetration through obstacles. The vertical polarization and low VSWR ensure compatibility with most 2.4GHz devices, while the DC ground lightning protection adds a layer of safety for outdoor installations.
n
Customization Options for Your Specific Needs
n
While the standard MOP-DYA-2.4G covers the 2400-2500 MHz band, we understand that different applications may require tailored solutions. For projects needing alternative frequency ranges or gain levels, our engineering team can customize the antenna to meet your precise requirements. Whether you need a higher gain for extreme distances or a specific frequency for licensed spectrum, we invite you to contact us with your specifications. Our goal is to ensure you get the optimal antenna for your unique wireless challenge.
n
Installation Tips for Maximum Performance
n
To fully leverage the MOP-DYA-2.4G’s capabilities, proper installation is key. Mount the antenna at a height that provides a clear line of sight to the target device, avoiding obstructions like trees, buildings, or metal structures. Use high-quality, low-loss coaxial cable (such as LMR-400) for connections longer than the supplied 300mm RG58/U cable to minimize signal loss. Ensure all connectors are weather-sealed with appropriate tape or compounds to prevent moisture ingress. Regularly inspect the mounting hardware for tightness, especially after high-wind events.
n
Conclusion: Why the MOP-DYA-2.4G is Your Ideal Choice
n
When you need a reliable, high-performance directional antenna for 2.4GHz applications, the MOP-DYA-2.4G stands out as a cost-effective and durable solution. Its precise electrical specifications, rugged mechanical design, and flexibility in mounting make it suitable for both fixed wireless installations and temporary deployments. Whether you’re a system integrator, network administrator, or hobbyist, this antenna delivers the consistent results you expect. For any customized frequency range or gain requirements, please do not hesitate to contact us—we are ready to help you achieve optimal wireless performance with the MOP-DYA-2.4G.
