Wideband 100W RF Power Amplifier for Communication Testing
nnWhen it comes to reliable signal amplification across a broad frequency spectrum, precision and durability are paramount. The RF power amplifier described here is a wideband, high gain solution engineered to operate from 30 to 500 MHz, delivering a maximum output power of 100 watts. This device is designed not just for peak performance, but for sustained, stable operation in demanding environments, thanks to its integrated high-efficiency heat sink and industrial-grade construction.nnIn the world of communication testing, laboratory measurement, and signal enhancement, having an amplifier that can maintain consistent power output without overheating is invaluable. This amplifier excels in these scenarios, offering a robust platform for engineers and technicians who require dependable power amplification for a variety of applications, from research and development to field service.nn
Core Specifications and Performance
nnThe heart of this RF power amplifier lies in its ability to provide substantial gain while maintaining signal integrity. With a maximum gain of 50dB and gain flatness of ≤5dB across the entire 30-500MHz band, it ensures that the amplified signal remains true to its original shape. This performance is critical when working with complex modulation schemes or when precise signal levels are needed for calibration.nnThe unit operates from a standard 28V DC power supply (with a tolerance of 24-30V) and delivers a typical output power of 100W at 10.5A. The power output can be adjusted within a range of 50 to 120W, providing flexibility for different operational requirements. Its efficiency of 29% at 100W output helps manage thermal load, contributing to long-term reliability.nn| Parameter | Value |n| :— | :— |n| Frequency Range | 30 – 500 MHz |n| Operating Voltage | 28V DC (24-30V range) |n| Max Output Power (Typical) | 100 W at 10.5A |n| Output Power Range | 50 – 120 W / 47.0 – 51.5 dBm |n| Output Current Range | 8.5 – 12 A |n| Amplifier Efficiency | 29% at 100W output |n| Maximum Gain | 50 dB |n| Gain Flatness | ≤5 dB |n| Standard Input Power | 7 dBm (0 – 7 dBm range) |n| Max Undamaged Input Power | ≤10 dBm |n| Voltage Standing Wave Ratio (VSWR) | ≤2 |n| Operating Temperature | -10 to +55°C |n| Power Stability | ±1 dB (-40°C to +55°C) |n| Power Requirement | ≥15 A at +28V DC (Continuous wave output) |n| Power Supply Interface | DB9 |n| Control/Communication Interface | DB9 with 485 Protocol (Default disconnected internally) |n| RF Connector (Input) | F-SMA |n| RF Connector (Output) | N-Type |n| Dimensions | 190 x 130 x 65 mm |n| Weight | 2.5 kg |nn
Integrated Cooling and Industrial Design
nnA key factor in the reliable performance of this RF power amplifier is its built-in high-efficiency heat sink. Thermal management is often the limiting factor in continuous high-power RF operation. By effectively dissipating heat, this design allows the amplifier to run for extended periods without performance degradation, a feature that is essential for long-duration testing or signal broadcasting.nnThe industrial-grade construction further enhances reliability, making the unit suitable for both lab bench use and integration into larger systems. Its compact footprint, measuring 190 x 130 x 65 mm and weighing only 2.5 kg, allows for easy placement in equipment racks or test setups.nn
Connectivity and Control

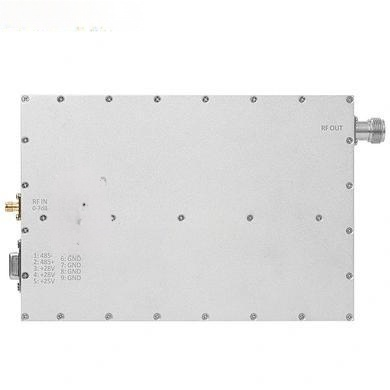

nnThis amplifier is equipped with a versatile set of interfaces to suit various integration needs. The RF input uses an F-SMA connector, while the output is a standard N-Type connector, ensuring compatibility with common test cables and antennas.nnFor power and control, the device employs DB9 interfaces. The primary DB9 interface handles the 28V DC power connection. A second DB9 interface provides 485 communication protocol support. This digital interface allows for advanced remote control and monitoring when used with a compatible digital source. Through the 485 protocol, users can set the frequency band and output power of the digital source, enabling automated or remote adjustment of test parameters.nn
Practical Applications and Conclusion
nnThe capabilities of this RF power amplifier make it an excellent choice for a wide range of uses. Its broad frequency coverage and high output power are ideal for:nn- Communication Testing: Simulating high-power signals for receiver testing and compliance testing.n- Signal Enhancement: Boosting weak signals in research or field applications.n- Laboratory Measurement: Providing a stable, high-power RF source for measurements such as antenna pattern testing and component characterization.nnThe amplifier’s excellent power stability (±1 dB across a wide temperature range) and low VSWR (≤2) contribute to measurement accuracy and protect the amplifier and connected equipment from reflected power.nnIn conclusion, this wideband RF power amplifier stands out as a robust, high-performance solution for professionals who demand reliability and consistency. With its 100W output, 50dB gain, and industrial-grade thermal design, it is engineered to meet the rigorous demands of modern communication and laboratory environments. Whether used for critical testing or continuous signal enhancement, this amplifier delivers the power and stability your applications require.
