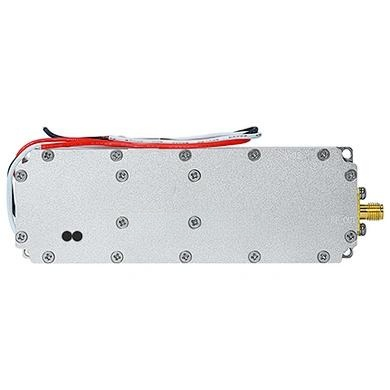

Powering the Future: Introducing the 5725-5850MHz LoRa Module for 5G-Ready IoT
nnThe landscape of wireless communication is evolving rapidly, demanding solutions that bridge the gap between long-range reliability and high-bandwidth speed. Our cutting-edge 50W 5725-5850MHz High Power LoRa Module emerges as a revolutionary 5G LoRa module solution, meticulously engineered for next-generation wireless systems. This high power LoRa module delivers an exceptional 50W output across the 5725-5850MHz frequency band, positioning it as the ideal cornerstone for industrial IoT, smart city infrastructure, and critical communication networks.nnWhat sets this 5725-5850MHz LoRa module apart is its unique fusion of two powerful technologies. It harnesses the energy-efficient, long-range capabilities of LoRa and seamlessly integrates them with the high-speed, low-latency attributes of 5G connectivity. The result is a versatile 5G LoRa module that excels in both extended coverage and robust data throughput. As a high power LoRa module, it provides superior signal penetration, ensuring consistent and reliable communication even in the most challenging environments, such as dense urban centers, remote industrial sites, and underground facilities.nnEngineered with advanced RF technology, this module features robust interference resistance and state-of-the-art thermal management. These design elements allow for continuous operation at maximum power without performance degradation, ensuring that your critical applications remain online and responsive. The integrated 5G LoRa module architecture guarantees seamless compatibility with existing network infrastructures while future-proofing your investment against evolving technological standards.nnWhether you require a high power LoRa module for remote environmental monitoring, automated manufacturing controls, or expansive sensor networks across smart agriculture, our 5725-5850MHz LoRa module delivers the unmatched performance necessary for success. This 5G LoRa module solution represents the perfect equilibrium of power, range, and connectivity, empowering your most demanding wireless applications with unwavering confidence.nn
Technical Specifications of the 5725-5850MHz LoRa Module
nnTo provide a clear overview of its capabilities, the detailed technical parameters for this high power LoRa module are presented below.nn
| Parameter | Specification | Notes |
|---|---|---|
| Model Number | MOP-PAL-5725/5850M–50W | |
| Working Frequency | 5725 – 5850 MHz | Customizable upon request |
| Saturated Output Power | 49 ± 1 dBm | Approximately 50W |
| Gain | 49 ± 2 dB | |
| In-Band Fluctuation | ≤ 2.0 dB | |
| Input VSWR | ≤ 1.5 | |
| Gain Temperature Stability | ± 1.5 dB | |
| Working Voltage | DC +28V | |
| Working Current (at 49 dBm) | ≤ 5A | |
| Out-of-Band Spurs | 9 kHz – 1 GHz: ≤ -36 dBm / 30 kHz | Meets stringent regulatory standards |
| 1 GHz – 12.75 GHz: ≤ -30 dBm / 30 kHz | ||
| Output RF Port | SMA or N-Type | Connector type selectable |
| Operating Temperature | -10°C to +55°C | |
| Storage Temperature | -25°C to +65°C | |
| Operating Humidity | 5% to 95% (Non-condensing) |
nn
Unlocking the Potential of a High Power LoRa Module
nnThe 5725-5850MHz LoRa module is not merely a component; it is a complete solution designed to unlock new possibilities in wireless communication. Its 50W output power dramatically extends the range and reliability of LoRa networks, enabling coverage over vast distances that were previously challenging for standard modules. This feature is particularly critical for applications like smart city lighting, where a single module can control a district, or agricultural IoT, where sensors across hundreds of acres must report back to a central hub.nnThe module’s robust design also makes it an excellent choice for the backbone of 5G infrastructure. As a 5G LoRa module, it can serve as a high-power relay point, boosting signals to ensure consistent coverage in hard-to-reach areas. The exceptional thermal management ensures that the module does not overheat during prolonged high-power operation, providing the dependability required for mission-critical systems such as emergency response networks and industrial safety monitoring.nn
Conclusion: The Ultimate 5725-5850MHz LoRa Module for Next-Gen Connectivity
nnIn conclusion, this high power LoRa module sets a new benchmark for performance in the wireless communication industry. Its unique combination of 50W output, LoRa efficiency, and 5G compatibility makes it an indispensable tool for system integrators, network engineers, and IoT developers. By choosing our 5725-5850MHz LoRa module, you are investing in a solution that offers unmatched signal strength, superior reliability, and long-term scalability. Embrace the future of connectivity with a 5G LoRa module that delivers where others fall short, ensuring your networks are not only operational today but ready for the challenges of tomorrow.
