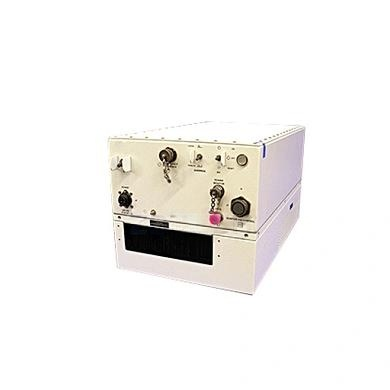

Unleashing High Power in the Millimeter-Wave Spectrum: The Q/V-band 80W SSPA
nnIn the demanding world of millimeter-wave (mmWave) technology, achieving a perfect balance between raw power, affordability, and seamless integration is often a significant challenge. Enter the Q/V-band 80W Solid State Power Amplifier (SSPA), a groundbreaking solution designed to deliver exceptional performance in the crucial 47-51.5GHz frequency range. This amplifier is not just a component; it is a powerhouse engineered for high-demand communication and radar systems, providing robust power output while ensuring cost-effectiveness and intuitive system integration. For engineers and system designers seeking a reliable path to high performance without sacrificing economic viability, this Q/V-band 80W SSPA stands as the definitive choice.nn
Engineering a Balance of Performance and Cost
nnThe core philosophy behind this amplifier is the elimination of compromise. It masterfully combines high performance with low total cost of ownership, ensuring that you do not have to choose between power and budget. By optimizing design and manufacturing processes, this Q/V-band 80W SSPA achieves a remarkable power output with excellent signal fidelity, all while keeping system costs under control. This approach makes advanced mmWave capabilities accessible for a wider range of applications without the exorbitant premium typically associated with such high-frequency equipment.nn
Broad Applicability Across Critical Sectors
nnThanks to its robust design and versatile performance parameters, this amplifier is suitable for a diverse array of high-frequency application scenarios. Whether it is powering satellite communication (SATCOM) uplinks, enhancing the range and resolution of radar systems, or supporting advanced electronic warfare (EW) equipment, the Q/V-band 80W SSPA adapts to meet the demanding needs of different users. Its performance consistency across the wide frequency band makes it an invaluable asset for both communications and sensing platforms.nn
Simplified Integration and Long-Term Reliability
nnA product is only as good as its ability to work within an existing ecosystem. This amplifier is designed for ease of integration, featuring a compact form factor (438×274×174mm) and standardized interfaces, including an RS485 communication interface. This modularity allows for rapid deployment into current or new system architectures, significantly reducing installation, maintenance, and engineering overhead. Perhaps most importantly, the product prioritizes high reliability. It is built with a high-quality structure and incorporates a built-in forced air cooling system. This thermal management solution ensures stability and durability even under prolonged high-load operation, guaranteeing that your critical systems remain online and performant.nn
Comprehensive Technical Specifications
nn
| Category | Parameter | Specification / Value |
|---|---|---|
| Electrical Specifications | Frequency Range | 47-51.5GHz (suitable for 47~52.4GHz) |
| Psat CW | ≥47dBm/50W @ 47~51.5GHz ≥46dBm/40W @ 51.5~52.4GHz |
|
| Gain | ≥48dB | |
| Gain Stability | ≤1dB | |
| Input/Output VSWR | ≤2:1 | |
| Spurious | ≤-60dBc | |
| IM3 | ≤-20dBc | |
| Power Supply | 220VAC | |
| Power Consumption | ≤800W | |
| Communication Interface | RS485 (optional) | |
| Mechanical Specifications | Dimensions | ≤438×274×174mm |
| Weight | ≤17.5Kg | |
| RF Connectors (Input/Output) | WR19 UG383/U | |
| Power Connector | Circle 4-pin | |
| Environmental | Cooling | Built-in Forced Air Cooling |
nn
Conclusion: The Reliable Solution for High-Frequency Demands
nnIn summary, the Q/V-band 80W SSPA transcends the definition of a simple amplifier. With its outstanding performance—delivering up to 50W of solid-state power—and its exceptional cost-effectiveness, it has become an ideal choice for the most challenging high-frequency applications. Whether your priority is achieving superior link budgets in satellite communications or ensuring the fidelity of radar returns, this product provides a proven, reliable solution. It assists in the efficient operation of critical communication and radar systems, ensuring that your investment yields both high performance and economic return. If you are ready to elevate your system capabilities with a robust, high-power amplifier, do not hesitate to contact us to discuss how this technology can be tailored for your specific needs.
