Unleashing the Power of the 8-12GHz Amplifier: A Game-Changer for Modern RF Systems
nnEngineered for the most demanding radio frequency environments, this 8-12GHz power amplifier sets a new standard in performance and reliability. With a staggering saturated output power of 100W (50dBm), it is purpose-built for mission-critical applications, including advanced radar modules, electronic warfare systems, and high-bandwidth satellite communications. The amplifier’s broadband capability ensures consistent, unwavering power delivery across the entire X-band frequency spectrum, making it a cornerstone for defense and aerospace infrastructure. Designed for precision, this X-band amplifier achieves ultra-low gain flatness of ±1dB and superior harmonic suppression, effectively eliminating signal distortion in sensitive and congested spectral environments. Its advanced thermal management system guarantees stable operation from -40°C to +71°C, providing reliability in the most extreme military and aerospace deployments. With a fast switching speed of just 1 microsecond, it seamlessly integrates into dynamic military RF modules, where rapid response is non-negotiable. This broadband power amplifier excels in multi-channel architectures, delivering a minimum of 50dB isolation between outputs to prevent interference and maintain signal purity. Its compact yet rugged design, weighing only 5.7kg, is housed in a durable alloy enclosure, making it equally suited for fixed installations and mobile platforms. Standard RF connectors—SMA for input and N-type for output—ensure easy integration with existing infrastructure, while the DB15 control interface offers flexible gain adjustment and modulation capabilities. Optimized for radar and satcom applications, this amplifier combines high efficiency with low spurious emissions (-60dBc max), meeting stringent electromagnetic compatibility requirements. The integrated heat sink dissipates thermal energy effectively, sustaining peak performance during prolonged operation. Whether deployed in ground-based radar systems or airborne electronic countermeasures, this 8-12GHz power amplifier delivers unmatched power density and reliability. Its military-grade construction and precision engineering redefine the benchmarks for RF performance in defense and aerospace sectors.nn
Technical Specifications of the Broadband Power Amplifier
nnTo provide clarity and precision, all critical specifications of this high-performance module are detailed below in a structured format. This ensures engineers and system integrators can quickly assess its capabilities for custom radar modules, satellite links, and electronic warfare platforms.nn
| Parameter | Specification/Value |
|---|---|
| Frequency Range | 8-12 GHz |
| Input Power | 0 ± 5 dBm |
| Saturated Output Power | Min. 50 dBm (100W) |
| Gain Flatness | Max. ±1 dB |
| Output Power at RFO2 | Typ. 10 dBm |
| Harmonic Suppression | Max. -20 dBc |
| Spurious Suppression | Max. -60 dBc |
| RFO1 and RFO2 Isolation | Min. 50 dBc |
| Input VSWR | Max. 2.2:1 |
| Output VSWR | Max. 1.8:1 |
| SPDT Switching Time | Max. 1 μs |
| Gain Adjustment | 31 dB, 1 dB steps, speed 1 μs |
| Supply Voltage | 28 ± 1V |
| RF Connector Input | SMA (F) |
| RF1 Output Connector | N-type (F) |
| RF2 Output Connector | SMA (F) |
| Power Supply Connector | 7W2 |
| Control Connector | DB15 |

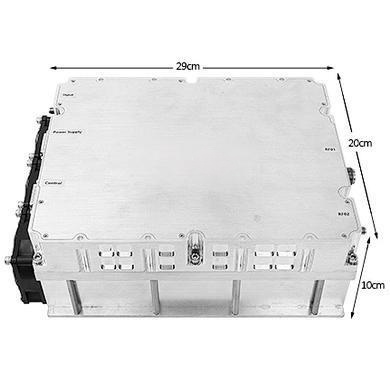

| Dimensions (L x W x H) | 250 x 200 x 100 mm (tolerance: ±0.5 mm) |
| Weight | Max. 5.7 kg |
| Finishing | Alloy iridite |
| Operating Temperature (Case) | -40 to +71°C |
| Storage Temperature | -55 to +85°C |
| Heat Dissipation | Heat sink |
| Environmental | N/A (compliant with military standards) |
nn
DB-15 Control Interface Pin Definitions
n
| Pin | Function |
|---|---|
| 1 | Power ON/OFF |
| 2 | Modulation |
| 3 | SW-CTR |
| 4 | ATT-1dB |
| 5 | ATT-2dB |
| 6 | ATT-4dB |
| 7 | ATT-8dB |
| 8 | ATT-16dB |
| 9 | Status Report |
| 10 – 15 | GND |
nn
7W2 Power Supply Interface Pin Definitions
n
| Pin | Function |
|---|---|
| A1 | GND |
| A2 | +28V |
| Others | NC (No Connection) |
nn
Conclusion: The Ultimate 8-12GHz Amplifier for Next-Generation Applications
nnIn summary, this broadband power amplifier represents the pinnacle of RF engineering, merging advanced thermal management, rugged military-grade construction, and exceptional signal integrity. Its versatility across radar modules, satellite communications, and electronic warfare ensures broad applicability in both defense and commercial sectors. For engineers seeking a reliable broadband power amplifier, this module delivers a perfect balance of high power, low distortion, and durability. The X-band amplifier excels in electronic warfare scenarios, where jamming resistance and signal purity are critical, offering superior spurious suppression (-60dBc) and harmonic control (-20dBc) for clean output in congested environments. With low VSWR (1.8:1 max) and configurable attenuation in 1 dB steps, it ensures minimal signal reflection and fine-tuned power management. This 8-12GHz power amplifier is designed for future-proofing, supporting firmware upgrades and modular replacements to reduce lifecycle costs in high-availability systems. From enhancing radar detection ranges to enabling secure satellite links, this amplifier delivers the power and precision required for tomorrow’s challenges. It stands as the ultimate solution for systems demanding high power, low distortion, and military-grade durability.
