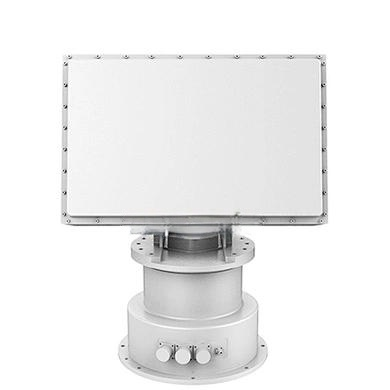

Unmatched Precision with the Next-Generation Drone Detection Radar
n
In an era where aerial threats evolve rapidly, securing airspace demands technology that is both intelligent and relentless. The advanced drone detection radar system presented here is not merely a surveillance tool; it is a comprehensive security sentinel designed to dominate both sprawling urban landscapes and isolated remote frontiers. Operating within the precise Ku-Band frequency, this system leverages cutting-edge 2D phased array three-coordinate technology to deliver real-time, high-fidelity tracking of even the smallest, most elusive targets. From covert micro-drones to fast-moving birds, this radar ensures that no threat goes unnoticed. By integrating artificial intelligence with robust hardware, it redefines what is possible in modern radar security, offering a proactive shield against unauthorized aerial intrusion. This is the cornerstone of a truly resilient defense network.
nn
Core Technical Specifications of the UAV Detection Radar
n
To fully appreciate the capabilities of this system, one must examine the raw performance data that defines its operational excellence. The following table details the critical parameters that make this drone detection radar a leader in its class.
n
| Indicator | Parameter | Value |
|---|---|---|
| Operating Frequency | Ku-Band | Advanced frequency for high-resolution detection |
| Technical System | 2D Phased Array | Three-coordinate technology |
| Scanning Method | Azimuth + 2D Phase | Dual scanning for comprehensive coverage |
| Detection Distance (Search) | ≥5km (RCS=0.01m²) | Stationary turnable, 90° phase scan; or rotation, 360° scanning |
| Detection Distance (Tracking) | ≥6km (RCS=0.01m²) | Enhanced for high-precision tracking |
| Detection Range | 360° Direction | 45° search elevation, 65° tracking elevation |
| Target Identification | AI-Powered | Comprehensive identification of UAVs or birds via flight characteristics |
| Distance Error | ≤10m (Search/Tracking) | Exceptional accuracy in both modes |
| Azimuth Error | ≤0.5° (Search), ≤0.3° (Tracking) | Minimal angular deviation for precise targeting |
| Pitch Error | ≤0.5° (Search), ≤0.4° (Tracking) | High vertical accuracy |
| Target Capacity | ≤256 (Search), ≤4 (Tracking) | Manages high-density airspace |
| Speed Range | 1-80 m/s | Detects slow and fast-moving objects |
| Data Rate | 6s (Search), 0.5s (Tracking) | Optimized for rapid situational updates |
| Machine Weight | 50 kg | Compact for versatile deployment |
| Dimensions | 465 x 300 x 590 mm | Space-efficient design |
| Information Interface | Ethernet | Seamless integration with command systems |
| Power Supply | AC220V | Standard mains compatibility |
| Power Consumption | 600W | Energy-efficient operation |
| Installation Method | Fixed, Vehicle-mounted, Tripod-mounted | Flexible for diverse environments |
nn
How This Drone Radar Redefines Radar Security
n
AI-Enhanced Target Discrimination
n
The core intelligence of this drone detection radar lies in its AI-powered target identification. Traditional radar systems often struggle with clutter, mistaking birds or other airborne debris for genuine threats. This system, however, analyzes complex flight characteristics—such as trajectory, speed, and movement patterns—to differentiate between UAVs and non-threats with remarkable precision. This results in a dramatic reduction in false alarms, allowing security teams to focus on real, actionable threats. The system’s ability to handle up to 256 targets in search mode and 4 in tracking mode ensures that even in congested airspace, it maintains clarity and accuracy.
n
High-Performance Tracking with Minimal Error
n
Precision is the backbone of any effective radar security solution, and this system delivers it in spades. With distance errors limited to ≤10 meters in both search and tracking modes, and azimuth errors as low as ≤0.3° during tracking, the radar provides targeting-grade data. This level of accuracy is critical for guiding countermeasures or alerting security personnel with confidence. The dual scanning method, which combines 360° azimuth rotation with 2D phase scanning, ensures that no angle is left unmonitored. The expandable tracking elevation of up to 65° further enhances its ability to follow fast-moving targets, making it an ideal choice for protecting high-value assets like military bases and critical infrastructure.
nn
Versatile Deployment and Power Efficiency
n
Adaptability is a hallmark of this UAV detection radar. Weighing in at just 50 kg and housed in a compact chassis (465 x 300 x 590 mm), it can be deployed in three distinct configurations: fixed installation for permanent security perimeters, vehicle-mounted for mobile patrols, or tripod-mounted for rapid, temporary setups. This flexibility ensures that it can be integrated into any operational scenario, from a bustling urban command center to a remote border outpost. Furthermore, its low power consumption of 600W, compatible with standard AC220V supplies, makes it suitable for off-grid or energy-conscious applications. The Ethernet-based information interface enables seamless integration with existing command and control ecosystems, allowing real-time data sharing across network infrastructures for a unified security posture.
nn
Conclusion: The Future of Aerial Defense
n
In conclusion, this drone detection radar is far more than a piece of hardware; it is a strategic asset for modern security. By combining AI-driven analytics, high-precision tracking, and multi-scenario adaptability, it offers an unmatched defense against the growing threat of rogue drones. Its ability to operate in diverse environments, from dense urban centers to isolated rural areas, ensures that your security infrastructure is both proactive and resilient. With a proven track record in military, government, and commercial applications, this radar security system empowers you to maintain continuous situational awareness. The investment in this drone radar is an investment in peace of mind, providing a formidable barrier against emerging aerial threats and ensuring the safety of your most critical assets.
