Unleashing the Power of the 200W Signal Amplifier: A Compact Giant for Modern Communications
nnIn the fast-evolving world of wireless communication, the demand for reliable, high-performance amplification has never been greater. Enter the 200W power amplifier, a marvel of engineering designed to deliver robust signal amplification across the critical 2200-2700MHz frequency range. This isn’t just any amplifier; it is an indispensable signal amplifier for modern wireless communication systems, from cellular infrastructure to military communications and radar systems. By combining exceptional power output with a surprisingly compact footprint, this device sets a new standard for what is possible in RF technology. Let’s explore the features and capabilities that make this 200W power amplifier a game-changer for engineers and system integrators alike.nn
Compact Design Meets Unrivaled Performance

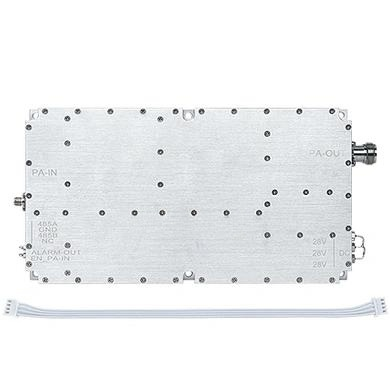

nnEngineered as a remarkably compact amplifier, this unit boasts dimensions of just 220×118×27mm. This impressive size-to-power ratio challenges conventional expectations, fitting seamlessly into space-constrained environments without compromising on output. The 200W power amplifier delivers exceptional output capability of ≥53dBm, with customizable gain settings of 53±1.5dB to meet specific system requirements. Its aluminum enclosure is not just for structure; it ensures optimal thermal management, even during continuous high-power operation. This design philosophy ensures that the signal amplifier remains a reliable workhorse in any installation, whether fixed or mobile.nn
Superior Signal Integrity and Spectral Purity
nnWhen it comes to maintaining signal quality, this 200W power amplifier excels. It offers outstanding signal integrity characterized by ≤1.5dB peak-to-peak in-band fluctuation, ensuring that your transmitted data remains clean and accurate. To further protect against interference, the signal amplifier rigorously controls spurious emissions below -36dBm (9kHz-1GHz) and -30dBm (1GHz-12.75GHz). This makes the compact amplifier ideal for sensitive applications where electromagnetic interference must be minimized, such as in medical or scientific equipment. Additionally, its excellent voltage standing wave ratio performance (≤1.6 VSWR) across the operating band ensures efficient energy transfer while minimizing signal reflections.nn
Advanced Protection Mechanisms for Uninterrupted Operation
nnReliability is paramount in demanding environments, and this 200W power amplifier incorporates advanced protection mechanisms to ensure continuous operation. The unit features automatic overheating protection that activates at ≥90°C and resets only when temperatures fall below 65°C, preventing damage from excessive heat. It also includes comprehensive fault detection systems, such as open-circuit protection triggered when VSWR exceeds 2.5dB. These features provide an additional layer of security for both the amplifier and connected equipment, making the signal amplifier a trusted partner for mission-critical applications.nn
Technical Specifications at a Glance
nnTo fully appreciate the capabilities of this 200W power amplifier, let’s examine its detailed technical parameters. All specifications are presented in the table below for clarity and precision.nn
| Parameter | Technical Data | Remarks |
|---|---|---|
| Frequency Band (MHz) | 2200 – 2700 | |
| Max. Output Power (dBm) | ≥53 | |
| Max. Gain (dB) | 53 ± 1.5 | Customizable |
| In-Band Fluctuation (Peak-to-Peak) (dB) | ≤1.5 | |
| Spurious Emissions | 9kHz – 1GHz: ≤ -36dBm 1GHz – 12.75GHz: ≤ -30dBm |
RBW= 100kHz RBW= 1MHz (excluding SEM test band) |
| VSWR | ≤1.6 | |
| Supply Voltage (V) | 32 | |
| Working Current (A) | ≤20 (at full power) | |
| Working Temperature (°C) | -40 to +55 | |
| Power Supply Interface | M4.0 Feedthrough Capacitor | |
| RF Port | ANT IN: SMA ANT OUT: N-type |
Customizable |
| Switch Control | M2.5 Through-Core Capacitor | High level (2.5V) turns on; low level turns off |
| Output Open Circuit Alarm | M2.5 Feedthrough Capacitor | High level indicates open circuit alarm |
| Communication Monitoring | 1 x 4Pin (2.5 pitch) Pin 1: A; Pin 2: GND; Pin 3: B; Pin 4: NC |
|
| Temperature Detection Error | ≤3°C | |
| Downlink Output Power Detection | ≥20dB, (P0+2 – P0-18) | |
| Open Circuit Protection | VSWR > 2.5 dB, PA switch off, indicator alarm, automatic restart | |
| Overheating Protection | ≥90°C activates; ≤65°C deactivates | Automatic |
| Embedded Software Environment | Fully connected to RS485; control of actual temperature, outflow rate, descent decline | |
| Material | Aluminum | |
| Dimensions (mm) | L220 x W118 x H27 | Reference |
| Installation Fixed Hole Spacing Size | M4 |
nn
Flexible Integration and Remote Management
nnFlexibility is a key advantage of this 200W power amplifier. It features configurable SMA and N-type RF ports along with an M4.0 feedthrough capacitor for secure power connections. The compact amplifier supports remote monitoring and control through its RS485 interface, enabling real-time adjustment of operational parameters. This interface provides detailed system telemetry, including temperature readings with ≤3°C accuracy and downlink power detection across a ≥20dB dynamic range. These capabilities make the signal amplifier particularly valuable for automated systems requiring precise performance feedback and remote management. The inclusion of M2.5 through-core switching allows for convenient activation using a 2.5V high-level signal, while the 4-pin communication port facilitates integration with broader control systems.nn
Built for the Harshest Environments
nnThis 200W power amplifier is engineered to withstand extreme conditions, maintaining full functionality across a -40°C to +55°C temperature range. This ensures consistent performance whether deployed in arctic research stations or desert communication outposts. The aluminum chassis provides both electromagnetic shielding and structural integrity, while M4 mounting holes facilitate secure installation in various orientations. With its robust protection systems, clean signal amplification, and adaptable control interfaces, this signal amplifier represents a versatile solution for engineers who need reliable high-power amplification without compromising on signal quality or system integration capabilities.nn
Conclusion: The Ultimate Compact Amplifier for Professional Applications
nnIn summary, the 200W power amplifier delivers laboratory-grade performance in a field-deployable package, making it an indispensable signal amplifier for professional wireless communication systems. Whether used as a standalone unit or integrated into a larger RF system, this compact amplifier provides the perfect balance of power, precision, and protection. Its sophisticated design ensures stable operation in challenging environments, with automatic restart capability after fault conditions enhance reliability for unattended operation. For engineers and system integrators seeking a high-performance, space-efficient solution, this 200W power amplifier represents the next evolution in high-power RF amplification technology, where reliability and performance cannot be compromised.
