Revolutionizing RF Performance: The 100W Power Amplifier with Integrated DDS Module
nnIn the fast-evolving world of wireless communication, system integrators and engineers constantly seek components that deliver both high performance and operational simplicity. The 100W Power Amplifier presented here transcends the limitations of ordinary power amplifier modules by integrating a Direct Digital Synthesis (DDS) unit directly onto the module. This innovative design slashes system complexity, minimizes signal interference, and ensures reliable, real-time performance across demanding applications in the 2300–2400MHz frequency band.nnTraditional power amplifier modules often require cumbersome external signal sources for frequency tuning, leading to increased integration hurdles and heightened risks of signal degradation. By contrast, this Integrated DDS Module eliminates the need for such add-ons, streamlining system architecture and lowering the potential for signal loss. The result is a robust, all-in-one solution that enhances stability while reducing time-to-market for new wireless systems.nn
Unmatched Low-Latency Performance for Critical Communications
nnFor applications where every millisecond matters—such as wireless communication base stations and industrial wireless control systems—this 2300-2400MHz Amplifier delivers exceptional signal integrity. The incorporation of a wideband 400MHz DDS unit shortens the signal path inside the module, significantly reducing delays. This ensures that commands and data packets arrive precisely when needed, safeguarding real-time operation in environments where latency is unacceptable.nnThe module’s frequency range, fixed at 2300–2400MHz, is a globally recognized spectrum for high-reliability communications. With a saturated output power of 50±1dBm (100W CW), a 50-ohm impedance, and an industry-standard N-K RF connector, the amplifier is designed for seamless integration with existing infrastructure. Its optimized thermal management—supporting an operating temperature range of -25°C to +55°C—and over-temperature protection (triggered at +75°C, automatic reset at +65°C) further guarantee sustained performance without external cooling systems.nn
Intelligent Monitoring and Maintenance with the Integrated DDS Module
nnOne of the standout features of this Integrated DDS Module is its integrated RS485 monitoring system (baud rate 19200). This advanced telemetry capability allows technicians to access critical operational parameters—including temperature, voltage, forward/reverse power, and input/output power—in real time, without disassembling equipment. No longer must maintenance teams rely on multiple external instruments to diagnose faults. Instead, a simple glance at the module’s LED indicators (covering temperature alarm, VSWR alarm, over/under voltage alarm, and non-radiation status) quickly pinpoints the issue, enabling rapid remediation.nnThis monitoring architecture dramatically reduces system downtime and maintenance costs. For operators managing large-scale deployments, the ability to remotely check module health while the system remains operational is a game-changing advantage. The 100W Power Amplifier supports both software-enable and manual physical switch control, offering flexible power amplifier management to suit various operational workflows.nn
Technical Specifications at a Glance
nn
| Parameter | Value/Specification |
|---|---|
| Working Frequency | 2300–2400MHz |
| Bandwidth (DDS) | 400MHz |
| Saturated Output Power | 50±1dBm (100W CW) |
| Gain | 50±1dB |
| In-band Flatness | ≤2.0dB |
| Power Stability | ±1.5dBm (at -25°C to +55°C) |
| Output VSWR | ≤1.5 |
| Operating Voltage | DC28 ±1.0V |
| Operating Current | 10.0A typ; 11.0A max (Pout=100W CW, 50Ω load) |
| Operating Temperature | -25°C to +55°C |
| Relative Humidity | 5%–95%, non-condensing |
| RF Connector | N-K type, 50 ohms |
| Power Supply Interface | 7W2 seat; Pin1: RS485A, Pin2: RS485B, Pin3: NC, Pin4: NC, Pin5: enable (+12V on / 0V off) |

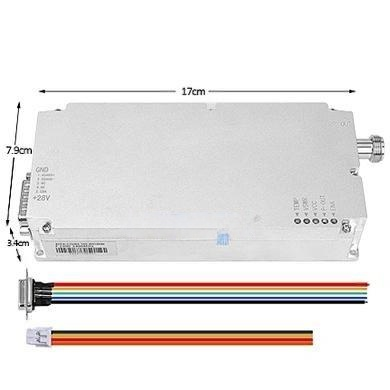

| Amplifier Dimensions | 170 × 79.5 × 34 mm |
| Installation Dimensions | 164 × 73.5 × 34 mm |
| Mounting Screw Dimensions | 4-Ø3.2mm |
| Monitoring Interface | RS485, baud rate 19200 |
| LED Indication | TEMP, VSWR, VCC (over/under voltage), P-OUT (non-radiation), ENA (switch status) |
| Monitoring Functions | Temperature, voltage, forward/reverse power, input/output power, enable switch, temperature alarm (threshold +75°C, reset +65°C), VSWR alarm (threshold >4.0), over-voltage alarm (>32V), under-voltage alarm (<24V), non-radiation indication (<10W) |
nn
Streamlined Integration for Multi-Channel Systems
nnThe 100W Power Amplifier is engineered as a highly integrated Integrated DDS Module, providing a turnkey solution for high-speed assembly automation and system integration. Its compact dimensions (170×79.5×34mm) and standardized interfaces (7W2 power connector, N-K RF port) enable plug-and-play insertion into diverse platforms without complex secondary development. Whether you are building a single-channel booster or a complete multi-channel power amplification system, you can combine multiple modules to create a flexible, scalable architecture that adapts to evolving application needs.nnThis modularity not only improves technical performance across the 2300–2400MHz band but also delivers unmatched convenience during installation, debugging, and future expansion. By reducing the need for custom engineering, the Integrated DDS Module accelerates product cycles and lowers overall system costs.nn
Conclusion
nnIn summary, the 100W Power Amplifier with Integrated DDS Module redefines what engineers can expect from a power amplification solution. It provides low-latency performance, comprehensive real-time monitoring, and straightforward integration—all in a compact, robust package. For any system operating in the 2300–2400MHz range—from wireless base stations to industrial controls—this module is the cornerstone of reliable, efficient, and future-ready communication networks.
