Patron-G20 4G LTE Rapid-Deploy Base Station for Emergency Communications
A compact, all-in-one solution designed to restore critical communications when and where they’re needed most.
Key Features:
- All-in-One Compact Design
Integrates baseband processing, radio unit, core network, multimedia dispatch, and antennas into a single, portable system. - High-Performance & Multifunctional
Delivers LTE-based professional trunked voice, multimedia dispatch, real-time video, GIS location services, and full-duplex audio/video communication. - Rapid Deployment
Set up in under 10 minutes to establish reliable communications in emergencies, remote areas, or during events where public networks fail or signals are weak. - Flexible Frequency Options
Supports 400MHz, 600MHz, 1.4GHz, or 1.8GHz bands to meet varied operational and regulatory needs. - Strong & Wide Coverage
Transmits at 2x10W power with a coverage radius of up to 20 km in suburban environments, ensuring dependable connectivity over broad areas.
Ready when you are—anytime, anywhere.
Key Features
- All-Outdoor Design – No indoor equipment required
- Quick & Simple Setup – Easy to install and maintain
- Flexible Bandwidth Support – Compatible with 5, 10, 15, or 20 MHz
- High-Speed Connectivity – Ultra-broadband access with up to 80 Mbps download and 30 Mbps upload
- Supports 128 Active Users – Reliable performance for multiple connections
Integration Instructions – Easy to implement and configure
Why this version works better:
- Clear, scannable bullet points
- Benefit-driven language (e.g., “Quick & Simple Setup” instead of “Easy maintenance”)
- Active voice and consistent formatting
- Logical grouping of related features
- Engaging sub-headings that highlight value

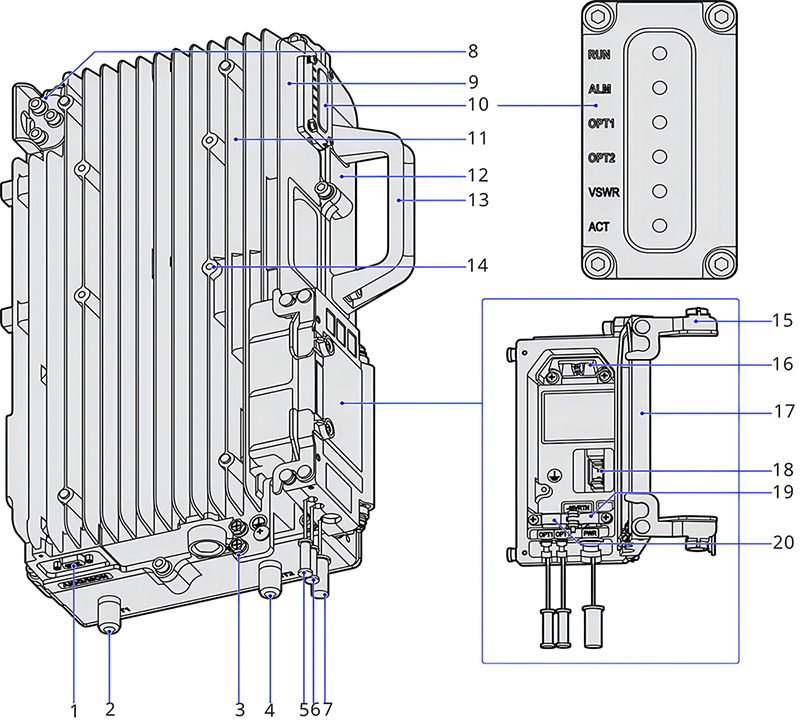

Enhanced Component List: 1. AISG/MON Port 2. Antenna Interface 1 3. Grounding Bolts 4. Antenna Interface 2 5. Fiber Card Slot – Waterproof Seal 1 6. Fiber Card Slot – Waterproof Seal 2 7. Power Cord Slot – Waterproof Seal 8. Hoisting Bracket 9. Upper Shell 10. Guiding Lights 11. Heat Dissipation Strip 12. Upper Shell (Secondary Reference) 13. Handle 14. Support Mounting Bolt 15. O&M Window Handle 16. Fiber Interface 17. O&M Window Cover 18. Power Input Interface 19. Fiber Crimping Clamp 20. Power Cord Crimping Clamp —
Application Overview

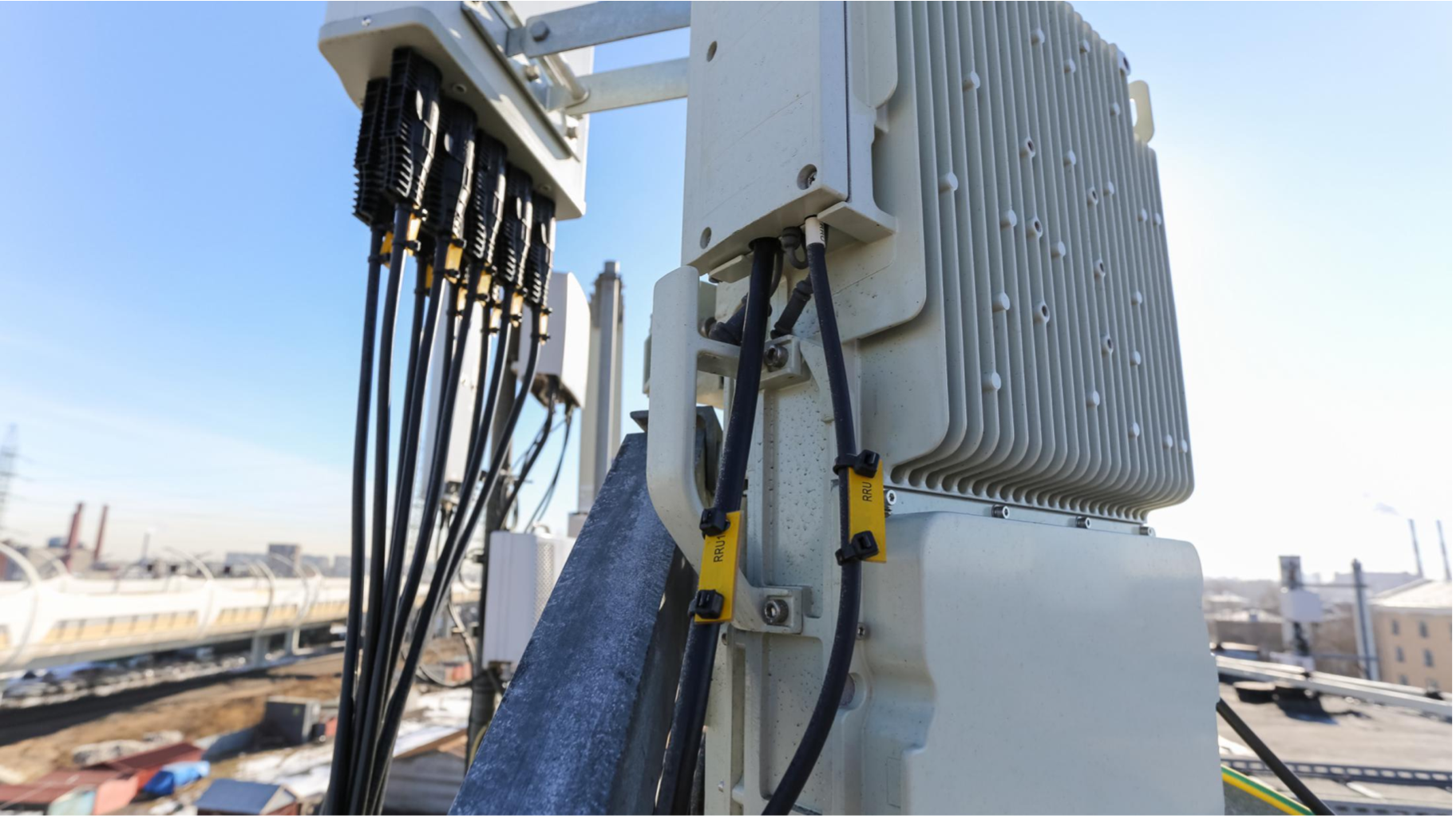

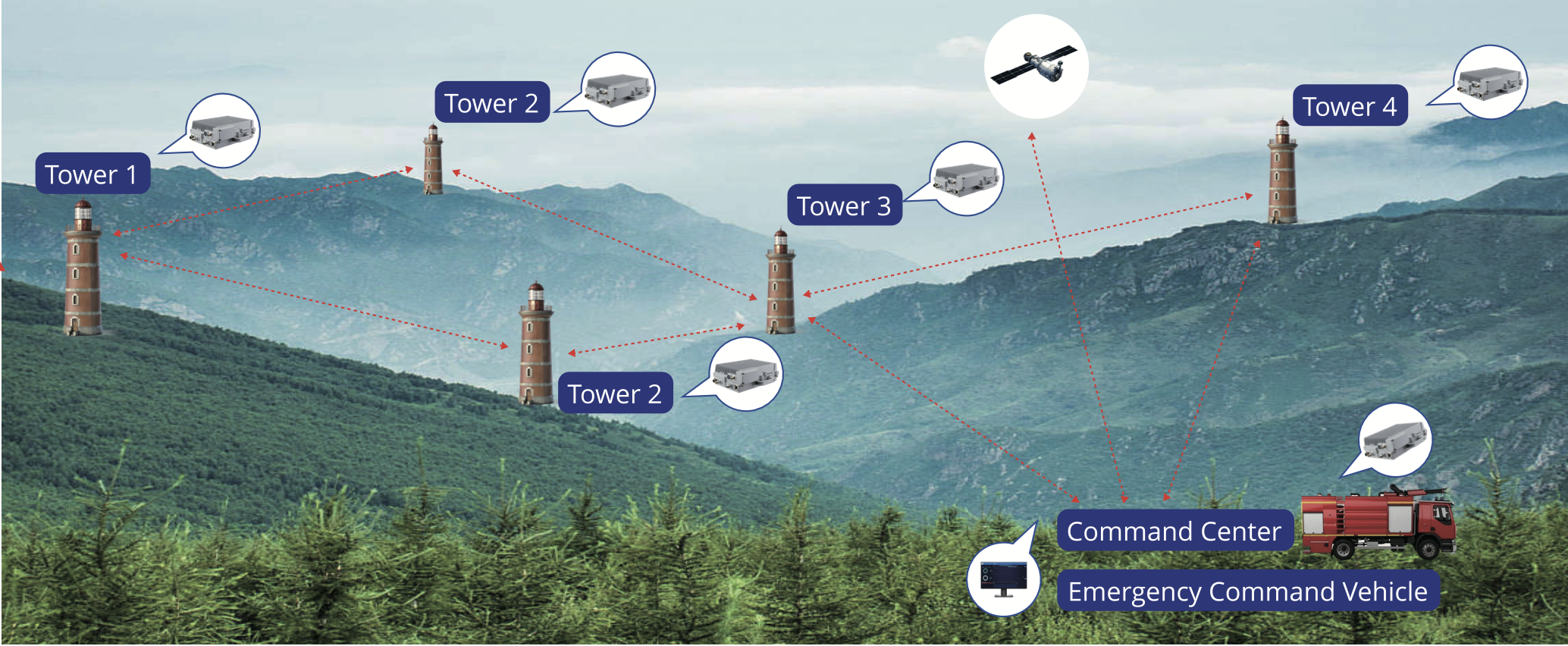

The Patron-G20 Integrated Base Station is designed for secure mounting on fixed structures like tower masts. By deploying it at elevation, the system extends the coverage of self-organizing networks and ensures reliable long-distance signal transmission. A key application is within Forest Fire Prevention & Emergency Response Networks, where the Patron-G20 enables wide-area monitoring and communication across forested regions. In the event of a wildfire or other emergency, the system supports real-time remote command and rapid dispatch of resources to the affected area.
|
GENERAL |
|
| Model | 4G LTE base station-G20 |
| Network Technology | TD-LTE |
| Number of carriers | Single carrier,1*20MHz |
| Channel bandwidth | 20MHz/10MHz/5MHz |
| User capacity | 128 users |
| Number of channels | 2T2R, support MIMO |
| RF Power | 2*10W/channel |
| Receiving sensitivity | ≮-103dBm |
| Coverage range | Radius 20km |
| Throughout | UL：≥30Mbps，DL：≥80Mbps |
| Power Consumption | ≯280W |
| weight | 8.9kg |
| Dimension | 377*298*124mm |
| levels of protection | IP65 |
| Temperature (operating) | -40°C ~ +55°C |
| Humidity(operating) | 5% ~ 95% RH(No condensation) |
| Air pressure range | 70kPa ~ 106kPa |
| Installation method | Support fixed installation and on-board installation |
| Heat dissipation method | Natural heat dissipation |
|
FREQUENCY(Optional) |
|
| 400Mhz | 400Mhz-430Mhz |
| 600Mhz | 566Mhz-626Mhz, 606Mhz-678Mhz |
| 1.4Ghz | 1447Mhz-1467Mhz |
| 1.8Ghz | 1785Mhz-1805Mhz |
