China Moneypro 10km Drone Video Transmitter for HDMI Camera and Telemetry

China Moneypro 4G TD-LTE Base Station Portable Emergency Communications Network During Disaster

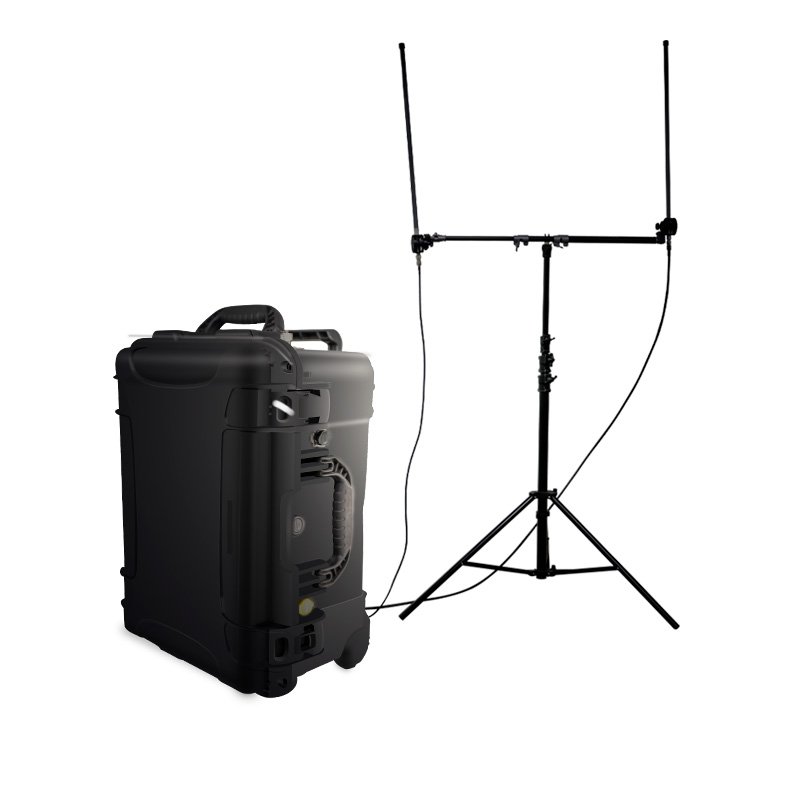

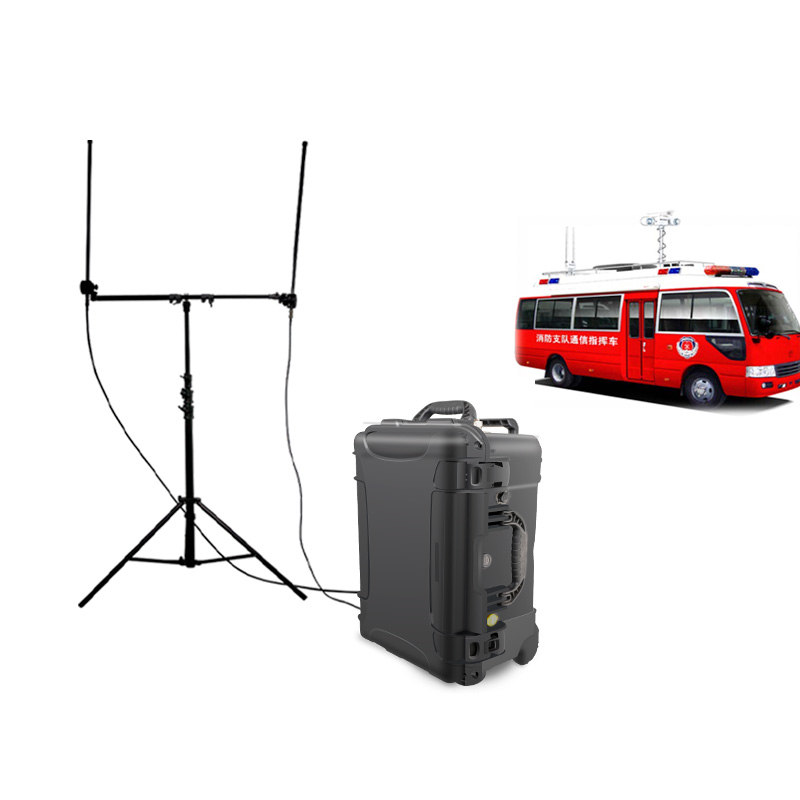

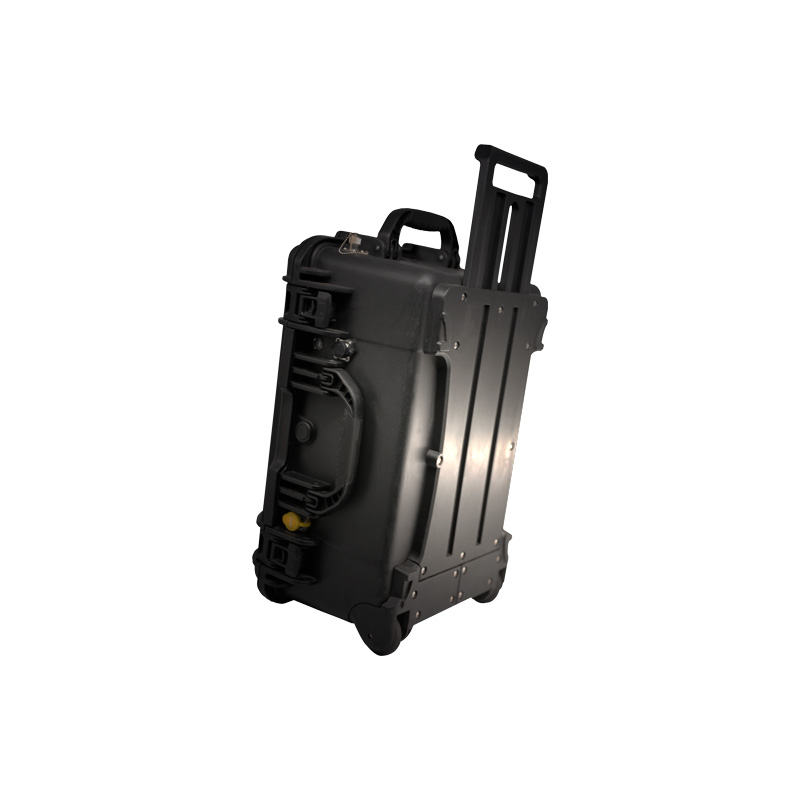

Introducing the Patron-P10: Your All-in-One Portable Emergency Command System

The Patron-P10 is a fully integrated, portable command solution designed to deliver instant, reliable communication in critical situations. By combining a Baseband Processing Unit (BBU), Remote Radio Unit (RRU), Evolved Packet Core (EPC), and multimedia dispatch into one compact system, it enables rapid network deployment with minimal setup time.

First responders stay connected to command centers with real-time HD video and crystal-clear voice communication—anytime, anywhere.

Ideal for emergency scenarios including:

  • Forest firefighting
  • Fire and rescue operations
  • Earthquake and disaster response
  • Production safety incidents
  • Coverage of government network blind spots

Flexible Connectivity: Supports multiple backhaul options such as satellite, Mesh, fiber optics, microwave, and public networks.

Deploy fast. Communicate clearly. Act decisively.

Category:
Description




Key Features

All-in-One Network Solution
Integrates baseband processing, radio transmission, core networking, and dispatch services into a single compact system. Delivers LTE-based broadband, professional voice trunking, multimedia dispatch, real-time video, GIS mapping, and full-duplex audio/video communication.

Extended Coverage & High Capacity

  • Covers areas up to 50 km with just one unit
  • Supports 200+ active users simultaneously

Rapid Deployment for Emergency Response

  • Portable, rugged design enables on-site network setup in under 10 minutes
  • Built for harsh environments—reliable video and data transmission when it matters most
  • One-touch startup with no extra configuration required

Seamless System Integration

  • Connects broadband with existing narrowband networks
  • Enables secure private-to-public network interoperability

Improved Version Highlights:

  • Clearer section headers for quick scanning
  • Bullet points converted to concise statements
  • Active voice and stronger verbs (e.g., “enables,” “delivers”)
  • Emphasis on user benefits and real-world application
  • Consistent formatting for better readability
  • Removed redundancy while keeping all technical details

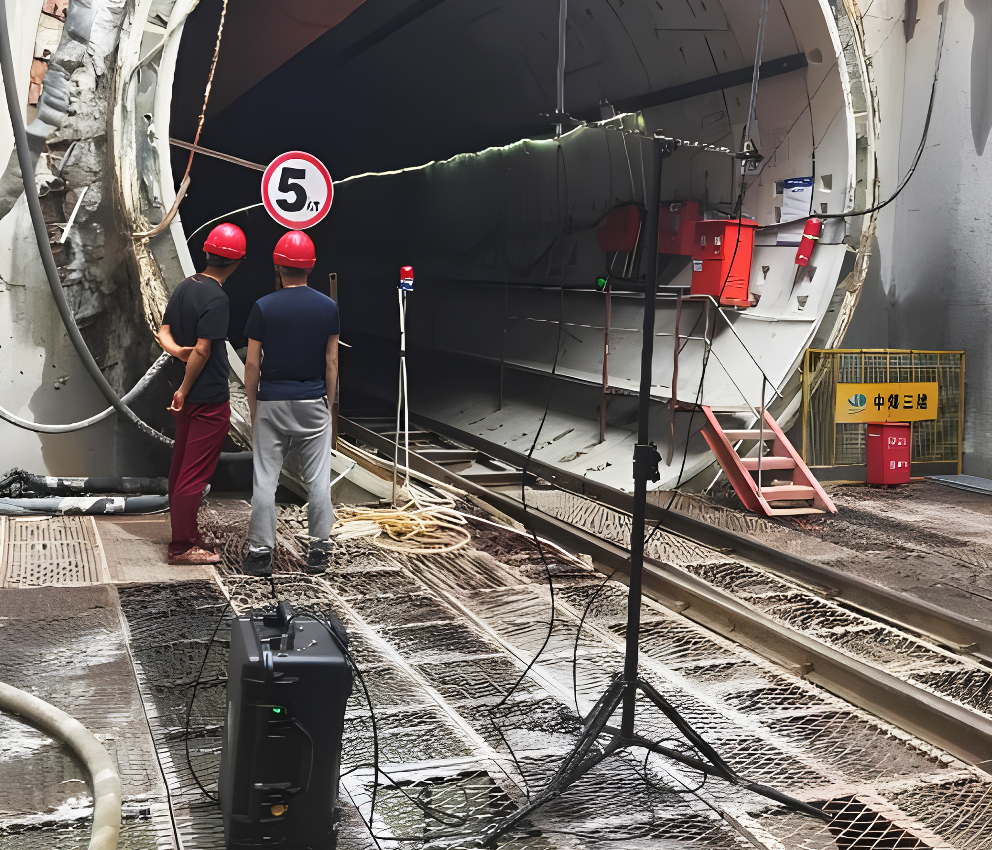

private lte base station underground

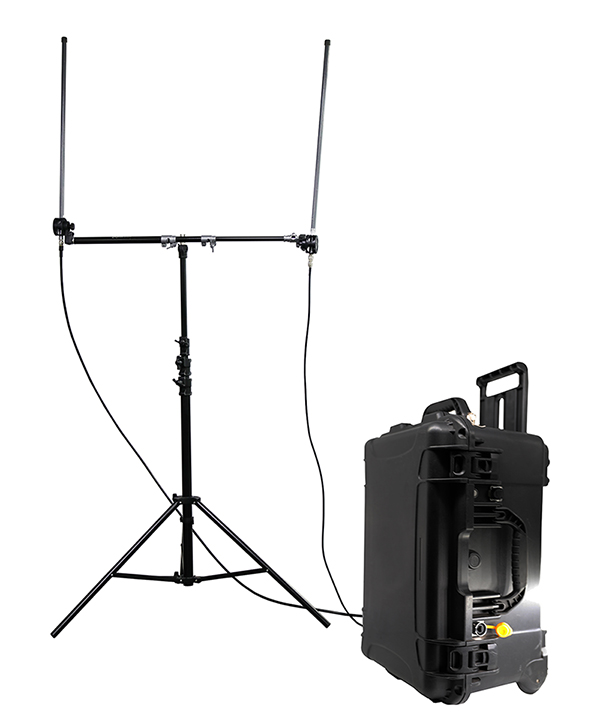

alternative communication during disaster



Versatile & User-Friendly Design

  • Broad Compatibility: Works seamlessly with trunking handsets, manpacks, UAVs, portable dome cameras, AI glasses, and more.

Intuitive Operation

  • Simple Controls: Adjust transmit power and frequency easily through a clear UI interface.
  • Dispatch Ready: Fully compatible with PAD dispatch consoles for streamlined command and control.

Built for Demanding Environments

  • Rugged & Reliable: Rated IP65 for dust and water resistance, with high shock resistance and an operating range of -40°C to +60°C.





Instructions for integration

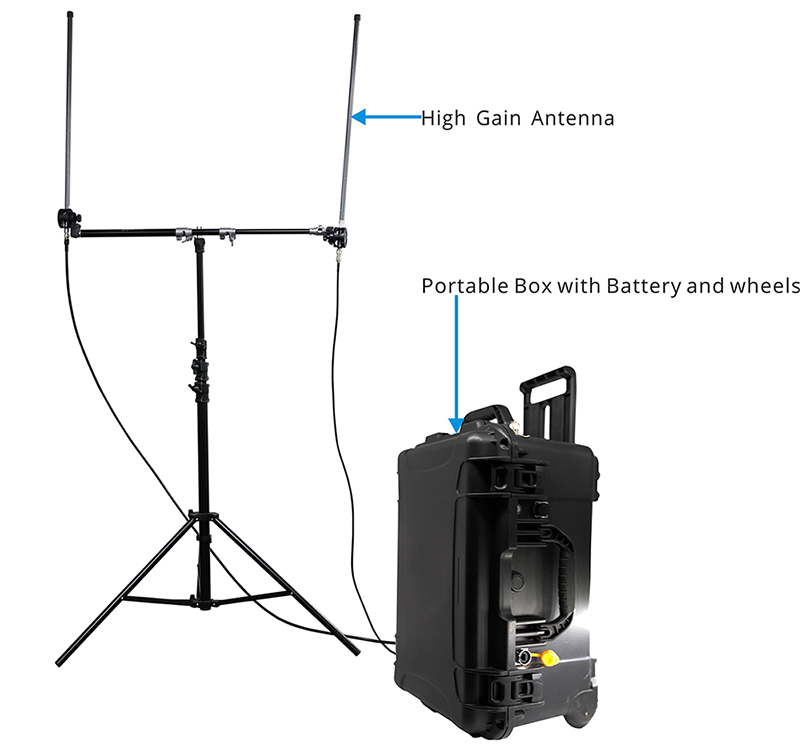

Instand LTE network deployment




Enhanced Version:

In critical situations where communication is essential, the Patron-P10 portable emergency command system ensures seamless connectivity—even in low-signal or high-stress environments. Deployable in just 15 minutes, it provides instant, reliable communication between first responders and decision-makers when every second counts.

Ideal for a wide range of emergency and high-stakes scenarios, the Patron-P10 supports vital operations including:

  • Natural disaster relief
  • Counter-terrorism and emergency response
  • VIP security details
  • Remote site operations (oilfields, mines, and more)

Stay connected when it matters most.

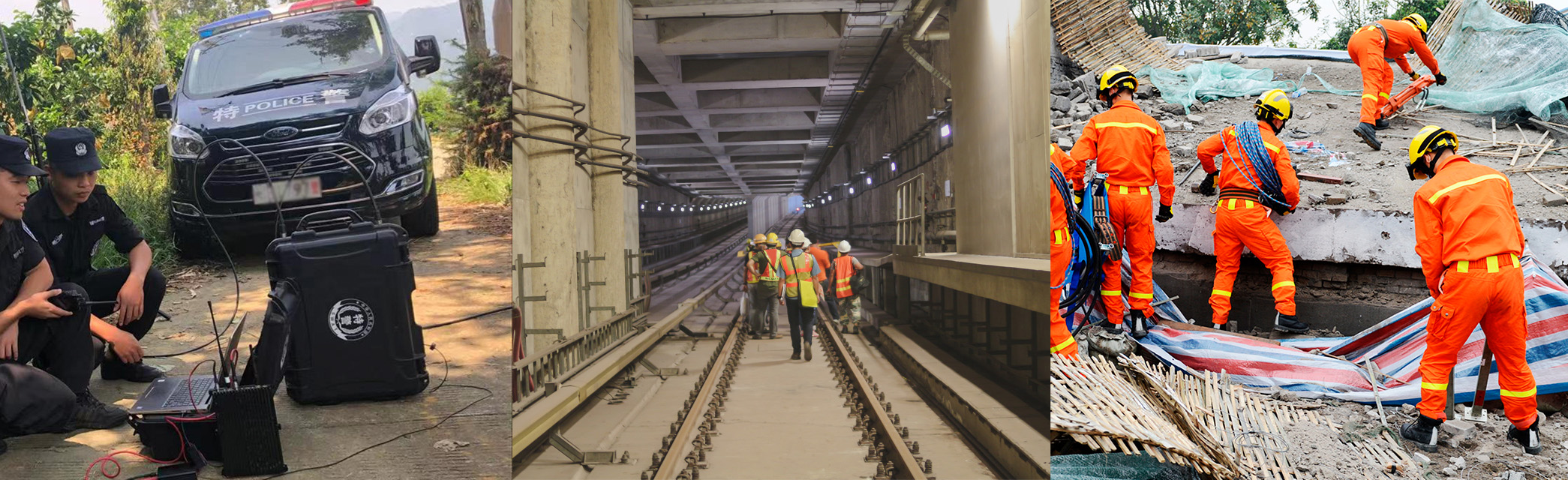

LET patronP10 application


Specifications

Model Patron-P10
Frequency 400Mhz: 400Mhz-430Mhz
600Mhz: 566Mhz-626Mhz, 626Mhz-678Mhz 1.4Ghz: 1477Mhz-1467Mhz
1.8Ghz: 1785Mhz-1805Mhz
Bands from 400MHz to 6GHz available
Channel Bandwidth 5Mhz/10Mhz/20Mhz
Technology TD-LTE
Time Slot Ratio Support 1:3, 2:2, 3:1
Transmitted Power ≤30W
Number of Paths 2 paths, 2T2R
UL/DL Date Rate 50/100Mbps
Transmission Port IP Ethernet Port
Clock Synchronization Mode GPS
System Throughput 1Gbps
Time Delay
Max. User Number 1000
Max. Online PTT Call Number 200
Power Supply Internal Battery: 4-6 Hours
Operating Temperature -40°C~+60°C
Storage Temperature -50°C~+70°C
Air Pressure Range 70~106 kPa
Dust and Water Resistance IP65
Weight
Dimension 580*440*285mm
