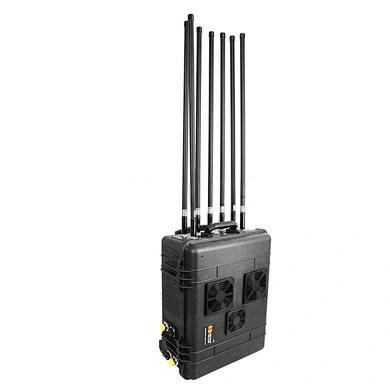

Versatile Application Sites for the Trolley Case Drone Jammer
nn
In an era where unauthorized drones pose increasing security threats, the need for reliable countermeasures has never been greater. This portable UAV jamming equipment, housed in a rugged trolley case, is designed to address a wide range of operational scenarios. From protecting critical infrastructure to supporting specialized tactical missions, this drone defense system delivers robust performance in environments such as UAV no-fly zones, luxury residential estates, scenic spots, oil stations and depots, and power system facilities. It also proves invaluable for security teams safeguarding important leaders and VIP guests, as well as for individual operators, SWAT teams, explosive-disposal units, anti-terrorist and anti-drug forces, explosion-proof teams, security inspection stations, administrative law enforcement personnel, hostage negotiation squads, and border control agencies. Whether for rapid response in security operations or persistent perimeter defense, this system adapts to the mission at hand.
nn
Technical Specifications and Performance of the Drone Defense System
nn
Understanding the technical parameters is crucial for selecting the right counter-drone solution. Below are the detailed specifications for the MOP-UJT-750W-8B model, presented in a clear, structured format.
nn
| Parameter | Value |
|---|---|
| Host Size (L x W x H) | 620 x 500 x 350 mm (or 626 x 492 x 350 mm depending on configuration) |
| Antenna Size (Higher Power Signal Blocker) | 760 mm length, 35 mm diameter |
| Equipment Weight (Main Unit) | Approximately 45 kg (without antennas and accessories) |
| Optional Frequency Coverage | 20 MHz – 6000 MHz (customizable) |
| Optional Jamming Distance | 1-3 km / 3-8 km |
| Optional Modules | Direction finding / Whitelist / Precision strike (quote separately) |
| Power Supply Mode | Built-in battery / External power supply (AC adapter: AC 220V-DC 27V or 24V/45 Amp) |
| External Battery | B-50AH, 27V/50Ah LiFePO4, Pelican Case 1520, 40kg, 1-2 hours operation |
| Operating Temperature | -20°C to +60°C |
| Humidity | 5% – 90% |
| Warranty | 1 year |
nn
Frequency Band and Power Output Details for the Drone Defense System
nn
The system employs a multi-band design to effectively cover commercial and professional drones, including popular models such as the DJI Phantom 4, Phantom 3 Professional/Advanced, and Inspire series that utilize 2.4 GHz for remote control. Each band’s output power is individually adjustable, with a maximum that can be turned to 0 (OFF) for safe, configurable operation.
nn
| Frequency Band | Output Power | Antenna Type | Antenna Specs |
|---|---|---|---|
| 20-500 MHz | 100W | Omni | 3 dBi, 650mm, 0.8 kg |
| 869-894 / 925-960 MHz | 100W | Omni | 5 dBi, 650mm, 0.8 kg |
| 1570-1620 MHz | 100W | Omni | 5 dBi, 650mm, 0.8 kg |
| 1850-1920 MHz | 100W | Omni | 5 dBi, 650mm, 0.8 kg |
| 2110-2170 MHz | 100W | Omni | 5 dBi, 650mm, 0.8 kg |
| 2400-2485 MHz | 100W | Omni | 7 dBi, 650mm, 0.8 kg |
| 2515-2675 MHz | 100W | Omni | 7 dBi, 650mm, 0.8 kg |
| 5725-5850 MHz | 50W | Omni | 12 dBi, 650mm, 0.8 kg |
nn
Packing List for the Trolley Host and Components
nn
Every drone defense system ships with the essential components for immediate deployment. The following table outlines the complete packing list.
nn
| No. | Name | Model | Quantity | Unit |
|---|---|---|---|---|
| 1 | Trolley Host | MOP-UJT-750W-8B | 1 | Taiwan (unit) |
| 2 | Fiberglass Omni Antenna | Various bands | 8 | Root |
| 3 | 220V AC Power Cord | 1.8m | 1 | Root |
| 4 | Remote In-line Control Box | Standard | 1 | Individual |
| 5 | Wire Control Box Line | 2m | 1 | Root |
nn
Key Features and Advantages of the Trolley Case Drone Jammer
nn
Highly Integrated Design for Rapid Deployment
n
The built-in battery allows the system to operate independent of external networks, enabling immediate activation. This portable UAV jamming equipment is tailored for rapid response needs, offering flexible and fast deployment. The integrated design ensures dynamic and efficient prevention and control, making it ideal for both planned security operations and unexpected threats.
nn
Easy Transport and Mobility
n
The wheeled trolley case design is a standout advantage. It can be pulled alongside a vehicle or carried by a single operator, eliminating defense blanks during transit. This makes the drone defense system simple to transport and easy for personal carrying, ensuring that security teams are never without protection. The rugged construction supports fast deployment from any location.
nn
Advanced Protection and Control
n
Safety and precision are paramount. The system includes 100% safe VSWR over-protection (isolator) for each modular component and individual adjustable output power per band. Working status indicators for each modular band provide real-time monitoring. Crucially, the design is engineered to cut off down-link signals only, preventing any interference with base stations and repeaters. This ensures that the drone defense system neutralizes threats without disrupting surrounding communications infrastructure.
nn
In conclusion, this drone defense system combines long-range jamming distance, high integration, and rapid deployment capabilities. Whether for protecting VIPs, securing critical infrastructure, or supporting tactical units, this portable UAV jamming equipment delivers reliable countermeasures. Its adjustable frequency coverage, customizable jamming distance (up to 8 km with directional antennas), and robust safety features make it a versatile and essential tool for modern security and defense operations. The wheeled trolley case ensures that this powerful drone defense system is always ready, wherever and whenever the need arises.
