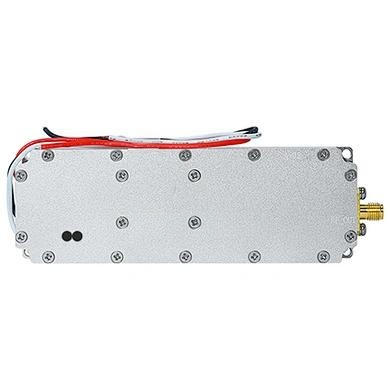

Revolutionizing Long-Range Communication: The 50W GaN Power Amplifier with Digital Anti-FPV LoRa Module
In the rapidly evolving landscape of wireless communication, the demand for robust, efficient, and long-range solutions has never been higher. Enter the groundbreaking 50W GaN integrated with digital anti-FPV low-frequency (200-300MHz) power amplifier LoRa module. This sophisticated device is engineered to overcome the traditional limitations of wireless data transmission, offering unparalleled performance in challenging environments. Designed with flexibility in mind, the LoRa module supports customized frequencies, allowing it to be tailored for both low-frequency and high-frequency applications, ensuring it meets the diverse requirements of different users, from industrial telemetry to remote sensing.
Unmatched Performance and Key Advantages of the LoRa Module
The core strength of this innovative module lies in its remarkable ability to deliver stable, long-distance communication. Powered by GaN integrated with digital radio frequency enhancement technology, the LoRa module achieves stable transmission spanning kilometers to tens of kilometers, even in complex environmental conditions. This capability directly addresses the common power limitations of standard low-power amplifiers in long-distance scenarios. Its proprietary signal-processing algorithms are meticulously optimized to achieve an ideal balance between low power consumption and extended coverage, making it a superior choice for critical infrastructure.
Dual-Low Technology Revolution for Energy Efficiency
One of the most compelling features of this module is its “Dual-Low” technology, which represents a revolution in operational efficiency. The LoRa module incorporates a low-power amplifier component governed by GaN integrated with digital intelligent management systems. This synergy achieves the industry’s lowest operational costs for long-range communication. By dynamically adjusting the low-power amplifier’s operating modes, the device can deliver multi-year battery life, making it ideal for remote base stations, smart agriculture, and other scenarios lacking stable power access. Furthermore, the GaN integrated with digital architecture boosts the LoRa module’s energy efficiency by up to 40%, enabling truly eco-friendly and sustainable operations.
Exceptional Anti-Interference Capabilities
In today’s crowded and noisy wireless spectrum, reliable communication is paramount. The module excels in this domain thanks to its advanced anti-interference features. LoRa technology utilizes spread spectrum modulation, which occupies a wider bandwidth in the spectrum, thereby significantly improving the reliability and anti-interference ability of communication. This inherent robustness allows the LoRa module technology to operate effectively in noisy wireless environments, coexist with other wireless devices, and still achieve reliable communication under weak signal conditions. This makes it a resilient solution for applications where signal integrity is non-negotiable.
Technical Specifications of the 50W GaN LoRa Module
The following table provides a detailed overview of the module’s core specifications, highlighting its advanced engineering and high-performance characteristics. Please note that all technical data is presented separately from the narrative to maintain clarity.
| Parameter | Specification |
|---|---|
| Model Number | MOP-PAL-200/300M-50W |
| Working Frequency | 100-200MHz / 200-300MHz / 300-400MHz (Customizable) |
| Saturated Output Power | 47 ± 1dBm |
| Gain | 47 ± 2dB |
| In-band Fluctuation | ≤ 2.0dB |
| Input VSWR | ≤ 1.5 |
| Gain Temperature Stability | ≤ ±1.5dB |
| Working Voltage | DC +28V |
| Working Current | 47dBm@≤3.2A |
| Out-of-Band Spurs | 9kHz～1GHz：≤-36dBm/30kHz 1GHz～12.75GHz：≤-30dBm/30KHz |
| Output RF Port | SMA or N-Type (Connector) |
| Operating Temperature | -10 to +55°C |
| Storage Temperature | -25 to +65°C |
| Operating Humidity | 5 to 95%，No condensation |
Conclusion: A New Standard in Wireless Connectivity
In summary, the 50W GaN integrated with digital anti-FPV low-frequency power amplifier LoRa module sets a new benchmark for long-range, reliable wireless communication. Its exceptional distance, revolutionary low-power operation, and robust anti-interference capabilities make it an indispensable tool for modern IoT deployments. Whether for remote monitoring, agricultural automation, or critical infrastructure, this LoRa module delivers consistent performance, transforming the way we connect and communicate across vast distances. By integrating cutting-edge GaN technology with intelligent digital management, it not only enhances coverage but also minimizes operational costs, making it a future-proof investment for any application demanding dependable data transmission.
