Understanding the 4×4 Hybrid Combiner: A Critical Component for Modern Wireless Networks
nnIn the rapidly evolving landscape of telecommunications, the demand for reliable, high-performance equipment that can handle multiple frequency bands simultaneously has never been greater. A 4×4 hybrid combiner is a passive RF device designed to sum the signals from four separate input ports into a single output, or to split a single input signal into four outputs, with minimal loss and maximum isolation. This device is indispensable for base station applications where space, efficiency, and signal integrity are paramount. By combining multiple bands into a single feed network, operators can reduce antenna clutter and improve overall network performance.nn
Key Features of the 4×4 Hybrid Combiner

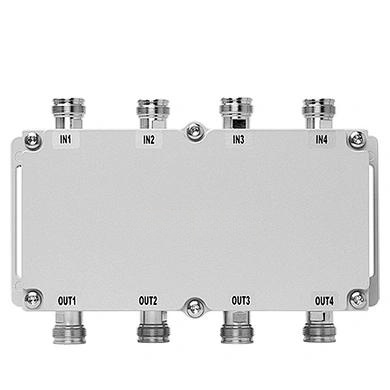

nnThe specific model under review, the MOP-HC-738-300-4, is engineered to meet the rigorous demands of 4G and 5G infrastructure. Its wide frequency coverage, robust power handling, and excellent linearity make it a versatile choice for both indoor and outdoor deployments. The device is housed in a durable, weatherproof enclosure, ensuring reliable operation even in harsh environmental conditions.nn
Technical Specifications and Parameters
nnFor any RF engineer or procurement specialist, understanding the precise technical data is essential. The table below provides a comprehensive overview of the critical parameters for this 4×4 hybrid combiner.nn| Parameter | Value |n| :— | :— |n| Model Number | MOP-HC-738-300-4:4MF(NF/DF) |n| Name | 4×4 Hybrid Combiner |n| Frequency Range | 698-3800 MHz / 698-4000 MHz |n| Insertion Loss (dB) | 6 ± 1.2 dB |n| Isolation (dB) | ≥ 25 dB |n| Return Loss (dB) | ≥ 18 dB |n| VSWR (Voltage Standing Wave Ratio) | Not specified (typically < 1.3:1 based on return loss) |n| Intermodulation Products | ≤ -155 dBc (with 2 x 43 dBm carriers) |n| Maximum Input Power (W) | 300 W / 500 W |n| Operating Temperature (°C) | -25°C to +70°C |n| Relative Humidity (%) | 0 ~ 95 % |n| Impedance (Ω) | 50 Ω |n| Dimensions (mm) | 194 x 138 x 49 mm |n| Weight (g) | 2300 g |n| Connector Type | 4.3-10 Female / N Female / 7-16 Female |n| Ingress Protection Rating | IP65 |nn
Understanding the Critical Performance Metrics
nnWhen evaluating a 4×4 hybrid combiner, several performance indicators are crucial. The insertion loss of 6±1.2 dB is typical for a 4-way hybrid, representing the inherent power division plus internal losses. The high isolation of ≥25 dB ensures that signals from one input do not leak into another, preventing interference between different radio systems. The exceptional intermodulation performance of -155 dBc is a standout feature, indicating the device will create very low Passive Intermodulation (PIM) distortion, which is vital for maintaining signal clarity in high-power, multi-carrier environments.nn
Practical Applications and Benefits
nnThe versatility of this 4×4 hybrid combiner makes it suitable for a wide range of applications. In Distributed Antenna Systems (DAS), it can be used to combine signals from multiple operators onto a single antenna run. In base station setups, it allows for the efficient combining of different frequency bands (e.g., 700MHz, 1800MHz, 2600MHz, and 3500MHz) into a single feeder cable, simplifying deployment and reducing costs. Its IP65-rated enclosure means it can be installed directly on a tower or rooftop without the need for an additional weatherproof cabinet.nn
Installation and Environmental Durability
nnThe robust construction of this combiner is designed for longevity. The operating temperature range of -25°C to +70°C covers the vast majority of climates worldwide. The relative humidity rating of 0 to 95% ensures reliable performance in humid or coastal environments. The availability of multiple connector types (4.3-10, N, and 7-16) provides flexibility to match existing infrastructure, simplifying upgrades and integration.nn
Conclusion
nnInvesting in a high-quality 4×4 hybrid combiner is a strategic decision that directly impacts network reliability and performance. The model MOP-HC-738-300-4 offers a compelling combination of wide bandwidth, low loss, high isolation, and exceptional PIM performance. Its rugged, IP65-rated design and flexible connector options make it an ideal choice for demanding wireless infrastructure projects, from small cell deployments to large-scale macro networks. By carefully selecting such a high-performance passive component, network operators can ensure a clean, efficient, and future-proof signal distribution system.
