The 380-2000MHz Planar Helical Antenna: Versatile Wireless Connectivity Redefined
n

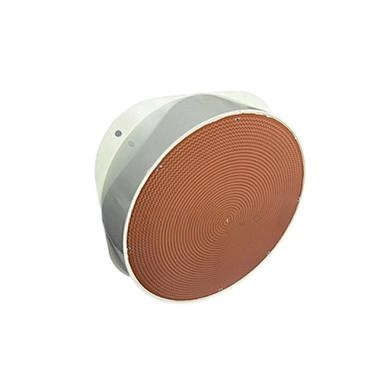

The 380-2000MHz Planar Helical Antenna (Model: MOP03820-0.5B) stands as a high-performance solution engineered to meet the rigorous demands of modern wireless communication systems. With right-handed circular polarization (RHCP) at its core, this antenna is purpose-built for a wide array of applications, including 4G LTE networks, Internet of Things (IoT) deployments, and fixed wireless access (FWA) setups. Whether installed in small-to-medium commercial spaces, industrial workshops, or outdoor equipment monitoring stations, this antenna delivers dependable signal coverage and transmission stability in virtually any environment.
n
Its design as both an indoor and outdoor universal antenna ensures unmatched adaptability. The robust operational temperature range of -40°C to +55°C, paired with a storage temperature range of -50°C to +65°C, guarantees consistent performance even under extreme weather conditions or harsh industrial settings. This resilience makes the antenna an ideal choice for scenarios where reliability is non-negotiable.
n
Constructed as an Alufer Cavity Antenna, this model leverages the exceptional durability of an alufer material cavity, which is coated with a grayish-blue (GY09) pigment. This construction enhances structural strength and resistance to environmental wear, significantly extending the antenna’s service life. These attributes directly contribute to the long-term value of the 380-2000MHz Planar Helical Antenna in any deployment.
n
Key Features and Performance of the 380-2000MHz Planar Helical Antenna
n
Wideband Operation and Circular Polarization Advantages
n
Operating across a broad frequency spectrum of 380MHz to 2000MHz, the 380-2000MHz Planar Helical Antenna provides excellent signal propagation characteristics. Its right-handed circular polarization minimizes signal degradation from reflections and multipath interference, ensuring cleaner and more reliable transmission. This makes it particularly suitable for IoT device networking in commercial buildings and outdoor signal coverage for remote equipment monitoring in industrial yards.
n
Gain and Beam Width Specifications
n
The antenna delivers a gain of ≥-0.5dB, with a beam width of ≥90° across the full operating range. For critical low-frequency segments, the absolute gain remains better than -4dB for 380 to 500MHz, while mid-to-high frequencies from 500 to 2000MHz achieve an absolute gain better than -2dB. This performance ensures effective signal coverage and transmission stability, even in challenging environments.
n
Additional performance metrics further validate its reliability: a standing wave ratio (VSWR) of ≤2.5 minimizes signal reflection, and a back lobe specification of ≤-12dB reduces interference from unwanted directions. The SMA-K type stainless steel connector ensures secure, low-loss signal connectivity, which is vital for maintaining system integrity.
n
Technical Specifications of the 380-2000MHz Planar Helical Antenna
n
To provide clarity and precision, the following table outlines the detailed product specifications and performance parameters of the antenna.
n
| Parameter | Value |
|---|---|
| Frequency Range | 380MHz to 2000MHz |
| Gain | ≥ -0.5dB |
| Beam Width (380 to 500MHz) | ≥90° (absolute gain better than -4dB) |
| Beam Width (500 to 2000MHz) | ≥90° (absolute gain better than -2dB) |
| Standing Wave Ratio (VSWR) | ≤2.5 |
| Connector Type | SMA-K (stainless steel) |
| Back Lobe | ≤ -12dB |
| Polarization Method | Right-handed circular polarization |
| Reference Dimensions | ≤360mm × 360mm × 250mm (excluding socket and mounting surface) |
| Weight | ≤2500g |
| Pigment (Coating) | Grayish-blue (GY09) |
| Antenna Cavity Material | Alufer |
| Working Temperature | -40°C to +55°C |
| Storage Temperature | -50°C to +65°C |
n
Installation and Design Advantages
n
Compact and Robust Mechanical Design
n
The 380-2000MHz Planar Helical Antenna features a compact mechanical design, with reference dimensions of ≤360mm × 360mm × 250mm and a weight of ≤2500g. This lightweight yet durable construction supports flexible surface mounting using four ϕ6.20mm installation holes, streamlining setup without requiring complex adjustments. The antenna’s Alufer cavity and robust coating ensure it withstands the rigors of both indoor and outdoor installations.
n
Universal Application Scenarios
n
As a true indoor & outdoor universal antenna, this model bridges the gap between indoor connectivity needs—such as networking IoT devices in commercial buildings—and outdoor signal coverage requirements, like equipment monitoring in industrial yards. Its wideband performance and circular polarization make it ideal for wireless systems that demand consistent performance, environmental adaptability, and long-term durability.
n
Conclusion: The 380-2000MHz Planar Helical Antenna as a Reliable Investment
n
In summary, the 380-2000MHz Planar Helical Antenna is a meticulously engineered solution for wireless communication systems that require reliable, single-channel signal transmission under diverse conditions. From its robust Alufer cavity construction and wide frequency range to its circular polarization and easy installation, every aspect of the antenna is designed to meet the demands of modern 4G LTE, IoT, and FWA deployments. Whether deployed indoors or outdoors, this antenna delivers consistent performance, environmental adaptability, and long-term durability. For systems seeking a practical, high-performance antenna that excels across various environments, the 380-2000MHz Planar Helical Antenna represents a smart, enduring choice.
